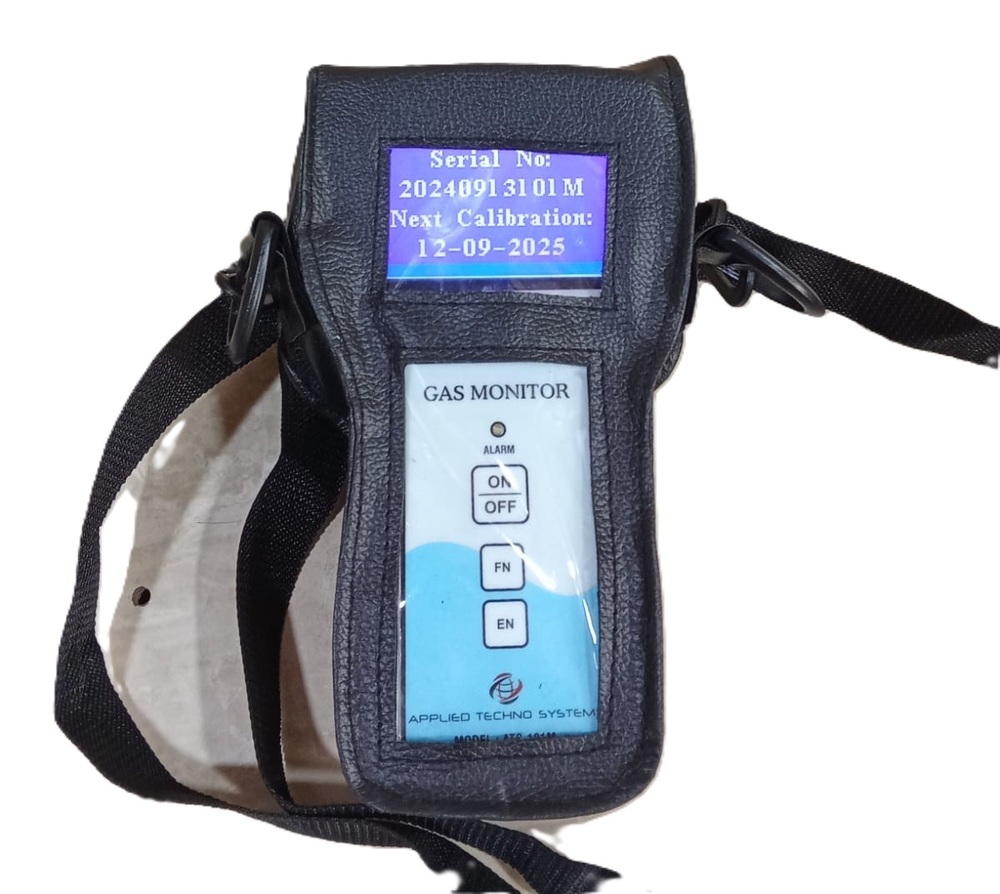

ATS 101M Portable Formaldehyde Gas Leak Monitor Specification
Humidity
< 85% RH
Classification
IP 65
Product Type
Gas Detector
Resolution
1, 0.1
Hardness
Yes
Mounting Type
Handheld or tripod
Color
White
Operate Method
Semi Automatic
Response Time
10 Seconds
Material
MS
Usage
Industrial
Dimension (L*W*H)
115 X 180 X 60 Centimeter (cm)
Power Supply
Electric
Display Type
LED
Application
Industrial
Equipment Type
Portable digital analyzer
Temperature
15 Celsius (oC)
Features
Good Quality
Machine Weight
600 Gram (g)
Control Mode
Manual
ATS 101M Portable Formaldehyde Gas Leak Monitor Trade Information
Minimum Order Quantity
1 Unit
Supply Ability
500 Units Per Month
Delivery Time
7 Days
About ATS 101M Portable Formaldehyde Gas Leak Monitor
The Portable Formaldehyde Gas Leak Monitor is a compact, handheld device designed to detect and measure HCHO (formaldehyde) gas concentrations in ambient environments. It is essential for indoor air quality assessment, occupational safety, and industrial hygiene, especially in environments involving adhesives, resins, textiles, and wood processing.
Technical Specifications:
Parameter
Details
Gas Detected
Formaldehyde (HCHO)
Measurement Range
05 / 010 / 020 ppm (customizable)
Sensor Type
Electrochemical / Photoelectric Sensor (optional)
Detection Limit
0.01 ppm
Display
Digital LCD / OLED with backlight
Response Time (T90)
30 seconds
Accuracy
0.1 ppm
Alarm Type
Visual + Audible + Vibration
Power Supply
Rechargeable Li-ion battery
Battery Life
812 hours of continuous use
Sampling Method
Diffusion / optional internal pump
Operating Temperature
0C to 50C
Humidity Range
090% RH non-condensing
Data Logging
Optional (USB/SD Card/PC Software)
Dimensions & Weight
Compact & lightweight (~300g)
Key Features:
Real-time HCHO concentration display
Triple alarm system: LED, buzzer, and vibration
Rechargeable battery with USB fast charging
Lightweight and portable for field & indoor use
Optional data storage and report download
Easy calibration with certified test gas
Applications:
Indoor air quality inspections (IAQ)
Chemical manufacturing & laboratories
Wood, furniture, and adhesive industries
Schools, hospitals, and public buildings
Industrial hygiene & safety audits
Emergency response for chemical leaks
Reliable Detection for Industrial Safety
Engineered with sensitive detection technology, the ATS 101M ensures accurate measurement of formaldehyde levels, helping industries prevent hazardous leaks. The rugged MS body and semi-automatic operation enable consistent performance in challenging industrial settings, making it an essential tool for workplace safety and compliance.
User-Friendly Operation and Maintenance
The LED display presents readings clearly, aiding quick decisions during inspections. The semi-automatic interface simplifies usage, requiring minimal training for operators. Maintenance is straightforward, owing to the electric-powered system and robust materials, ensuring longevity and reducing downtime.
FAQs of ATS 101M Portable Formaldehyde Gas Leak Monitor:
Q: How does the ATS 101M Portable Formaldehyde Gas Leak Monitor work in industrial settings?
A: The ATS 101M detects formaldehyde gas leaks using sensitive sensors that continuously monitor ambient air. The LED display provides real-time readings, making it easy for operators to assess formaldehyde concentrations and ensure workplace safety.
Q: What materials are used in constructing the ATS 101M, and why are they beneficial?
A: This monitor is primarily constructed from MS (Mild Steel), which provides excellent durability and hardness, making it suitable for rigorous industrial environments and ensuring a long lifespan.
Q: When should the ATS 101M be used during industrial processes?
A: It should be used whenever there is a risk of formaldehyde leakage, such as during maintenance, inspections, or in environments with equipment that may emit formaldehyde gas, to ensure ongoing safety and compliance.
Q: Where is the ATS 101M typically deployed?
A: The monitor is ideal for use in industrial plants, manufacturing facilities, service centers, and by exporters and suppliers who need portable and reliable gas detection in various operational areas across India.
Q: What is the operating process for the ATS 101M?
A: Simply power the device using an electric supply, place it in the area being monitored, and use the semi-automatic controls to begin detection. The unit will display formaldehyde levels on its LED screen for immediate action if necessary.
Q: How is the ATS 101M beneficial to exporters, importers, and manufacturers?
A: By providing accurate, real-time detection of formaldehyde leaks, the ATS 101M helps businesses maintain safe environments, comply with health regulations, and avoid costly incidents, making it invaluable for both domestic and international operations.
