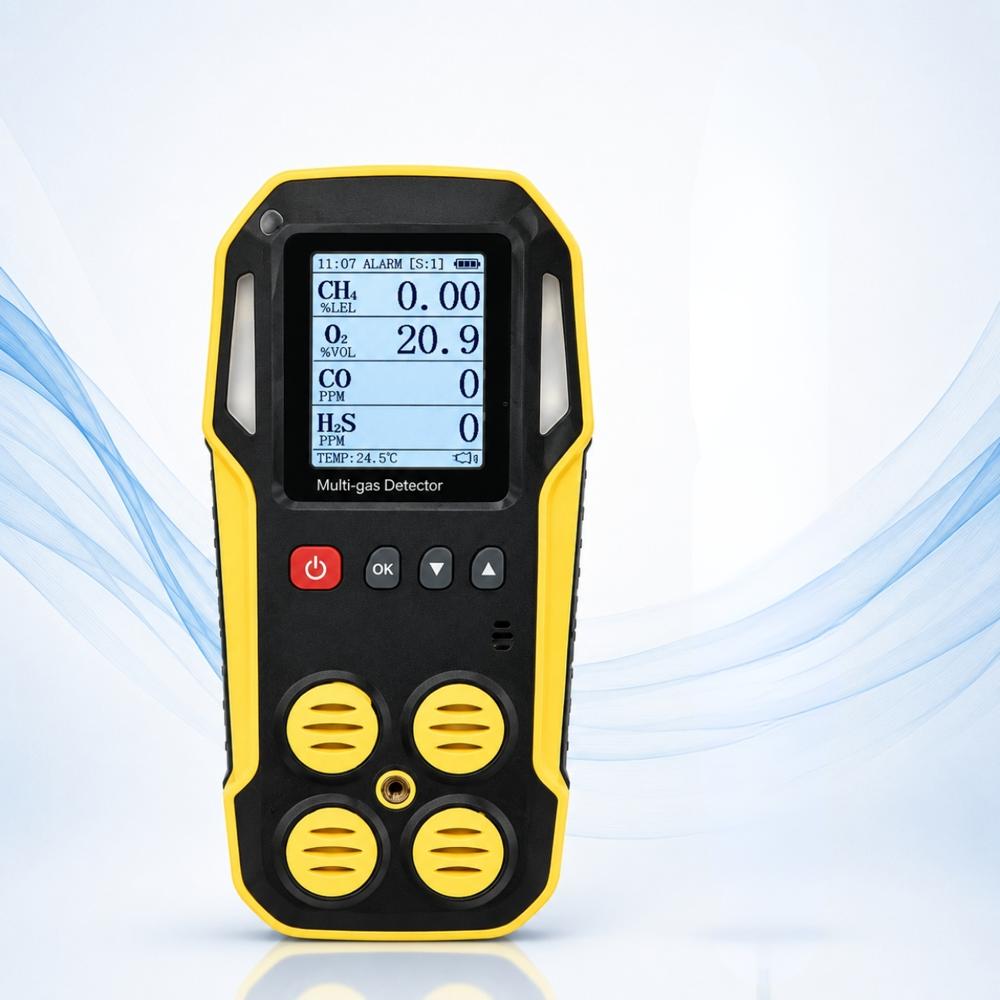

Gas Detector for Industrial Safety
Gas Detector for Industrial Safety
Gas Detector for Industrial Safety
Gas Detector for Industrial Safety
Gas Detector for Industrial Safety
Gas Detector for Industrial Safety

Gas Detector for Industrial Safety

Price 47000.0 INR/ Unit

MOQ : 1 Unit

Gas Detector for Industrial Safety Specification

  • Equipment Type
  • Portable Gas Detector
  • Power Supply
  • Rechargeable Lithium Battery
  • Resolution
  • CH4: 0.01%LEL, O2: 0.1%, CO: 1ppm, H2S: 0.1ppm
  • Hardness
  • Rugged plastic housing
  • Display Type
  • LCD Digital
  • Features
  • Multi-gas detection, audible-visual-vibration alarm, real-time display
  • Automation Grade
  • Automatic
  • Response Time
  • 30 seconds
  • Max Height
  • 15cm
  • Operating Voltage
  • 3.7VDC
  • Application
  • Industrial Safety (detects toxic and combustible gases)
  • Gas Pressure
  • Atmospheric
  • Test Range
  • CH4, O2, CO, H2S
  • Port Size
  • Standard inlet
  • Accuracy
  • 3% F.S.
  • Measuring Range
  • CH4 (%LEL), O2 (%VOL), CO (PPM), H2S (PPM)
  • Mounting Type
  • Portable/Handheld
  • Humidity
  • 0-95% RH (non-condensing)
  • Temperature
  • -20C to +50C
  • Interface Type
  • Mini USB for charging
  • Usage
  • Detection of flammable and toxic gases in industrial settings
  • Machine Weight
  • 170g (approx.)
  • Control Mode
  • Button control
  • Calibration
  • User and factory calibration supported
  • Data Logger
  • Optional (with memory to store measurements)
  • Protections
  • Overcharge and over-discharge protection
  • Alarm Modes
  • Sound, light, vibration
  • Alarm Type
  • Concentration threshold, low battery
  • Sensor Life
  • 2 years (typical)
  • Charging Time
  • 4-6 hours
  • IP Rating
  • IP66 (dust and water resistant)
  • Operating Time
  • Up to 12 hours continuous use



About Gas Detector for Industrial Safety

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Advanced Multi-Gas Detection Technology

Equipped with highly sensitive sensors, this gas detector monitors CH4, O2, CO, and H2S simultaneously, delivering fast and accurate results with an approximate 30-second response time. The LCD display provides clear, real-time readings, while the detector's automation and robust design ensure ease of use and dependable operation even in the harshest industrial settings.


Comprehensive Alarm Modes for Enhanced Safety

The detector incorporates sound, light, and vibration alarms for immediate notification of hazardous gas concentrations, low battery, or system malfunctions. Users can rely on prompt alerts even in high-noise work environments, enabling quick evacuation or corrective action to ensure workplace safety.


Rugged and User-Friendly for Industrial Applications

Designed for harsh industrial use, the device features a durable plastic housing, IP66 dust and water resistance, and operates across a broad temperature and humidity range. Its lightweight and portable build make it ideal for on-site inspections, process monitoring, and confined space entry, enabling workers to stay protected wherever hazards may be present.

FAQ's of Gas Detector for Industrial Safety:


Q: How does the gas detector alert users to hazardous conditions?

A: The gas detector uses three alarm modes-sound, light, and vibration-to instantly warn users when gas concentrations exceed preset thresholds or when the battery is low. This ensures that alerts can be perceived even in noisy or low-visibility industrial environments.

Q: What types of gases can this detector measure and what is its accuracy?

A: This detector is capable of measuring methane (CH4), oxygen (O2), carbon monoxide (CO), and hydrogen sulfide (H2S). It offers a high degree of accuracy, maintaining a typical resolution of 0.01% LEL for CH4, 0.1% for O2, 1ppm for CO, and 0.1ppm for H2S with an accuracy of 3% of full scale.

Q: When does the device require calibration and how is it performed?

A: Regular calibration is recommended to maintain sensor accuracy-typically every 6 to 12 months or as recommended by site safety protocols. Calibration can be performed by the user using the device's button controls or at the factory, ensuring consistent, reliable measurements.

Q: What benefits does the optional data logger provide?

A: The optional data logger allows the device to store measurement data for later analysis. This feature is valuable for compliance reporting, trend monitoring, and record-keeping for industrial hygiene and safety audits.

Q: Where can the device be used within industrial settings?

A: Thanks to its rugged IP66-rated housing and portable, lightweight design, this gas detector is suitable for a variety of industrial locations, including confined spaces, process areas, storage facilities, or any environment where flammable or toxic gases may be present.

Q: How long does the detector operate on a single charge and how is it recharged?

A: The device provides up to 12 hours of continuous use on a full charge and can be recharged in 4-6 hours using a standard Mini USB interface. Overcharge and over-discharge protections are built in to help safeguard the battery's longevity.

Q: What makes this gas detector especially suitable for industrial safety?

A: Its combination of multi-gas detection, multiple alarm modes, durable construction, comprehensive protections, easy calibration, and real-time digital display make it an excellent choice for ensuring worker safety and regulatory compliance in challenging industrial environments.
