Handheld Gas Detector
Handheld Gas Detector
Handheld Gas Detector
Handheld Gas Detector
Handheld Gas Detector
Handheld Gas Detector
Handheld Gas Detector
Handheld Gas Detector

Handheld Gas Detector

Price 25000.0 INR/ Piece

MOQ : 1 Piece

Handheld Gas Detector Specification

  • Automation Grade
  • Automatic detection
  • Equipment Type
  • Handheld Gas Detector
  • Features
  • Portable, Rechargeable, Audible & visual alarm, Real-time display
  • Measuring Range
  • 0-1000 ppm
  • Display Type
  • LCD digital display
  • Humidity
  • <95% RH (non-condensing)
  • Accuracy
  • 3% F.S.
  • Interface Type
  • Button navigation
  • Resolution
  • 1 ppm
  • Number of Specimens
  • Single channel
  • Application
  • Industrial safety, air quality monitoring
  • Response Time
  • 30 seconds
  • Operating Voltage
  • DC 3.7V (battery powered)
  • Hardness
  • Rugged ABS casing
  • Power Supply
  • Rechargeable Lithium Battery
  • Test Range
  • 0-1000 ppm (CO)
  • Max Height
  • 130 mm
  • Temperature
  • -20C to 50C
  • Gas Pressure
  • Atmospheric
  • Port Size
  • Standard sensor port
  • Mounting Type
  • Handheld
  • Usage
  • Personal gas detection
  • Capacity
  • Portable Handheld
  • Machine Weight
  • 200 g
  • Control Mode
  • Manual
  • Data Storage
  • Optional (up to 1000 logs)
  • Sensor Type
  • Electrochemical
  • Working Current
  • <120 mA
  • Alarm
  • Sound, Light, Vibration
  • Sampling Method
  • Diffusion
  • Battery Life
  • Up to 24 hours continuous
  • Charging Time
  • ~3 hours
  • Dimensions
  • 130 x 60 x 30 mm
  • IP Rating
  • IP65

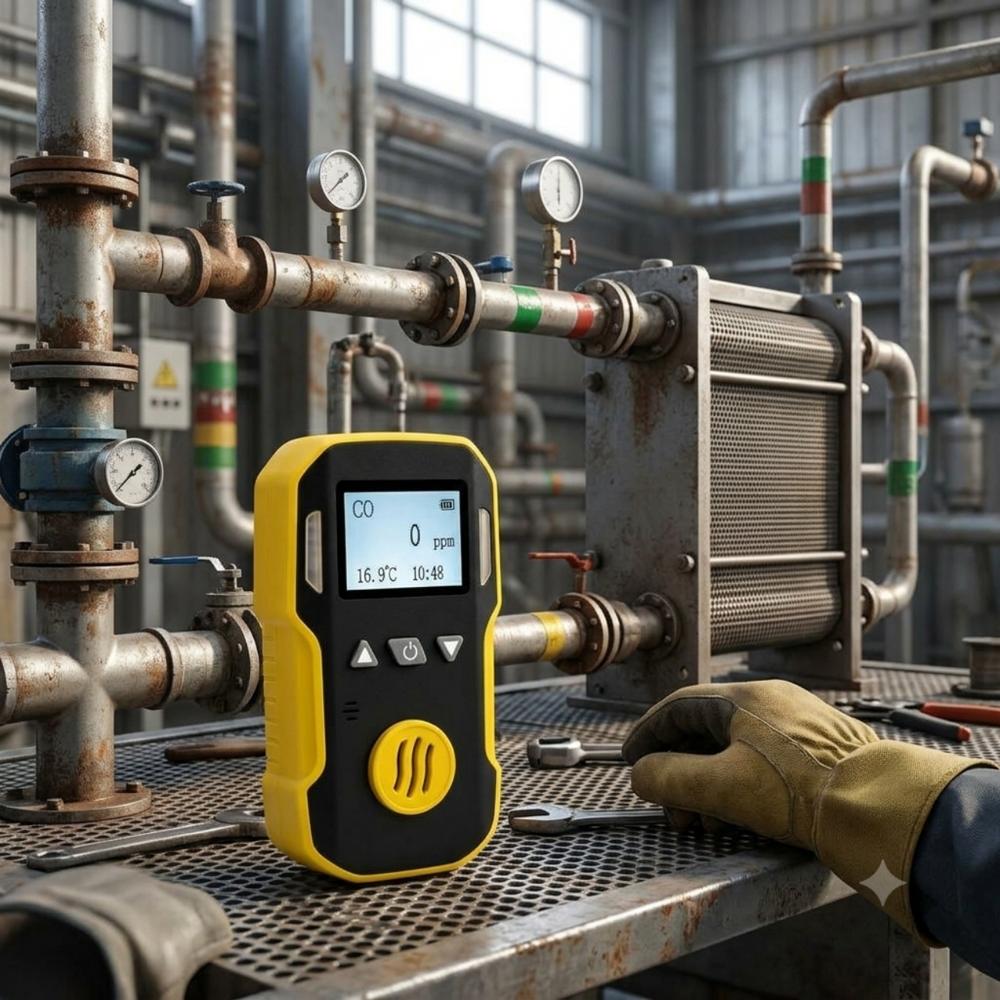

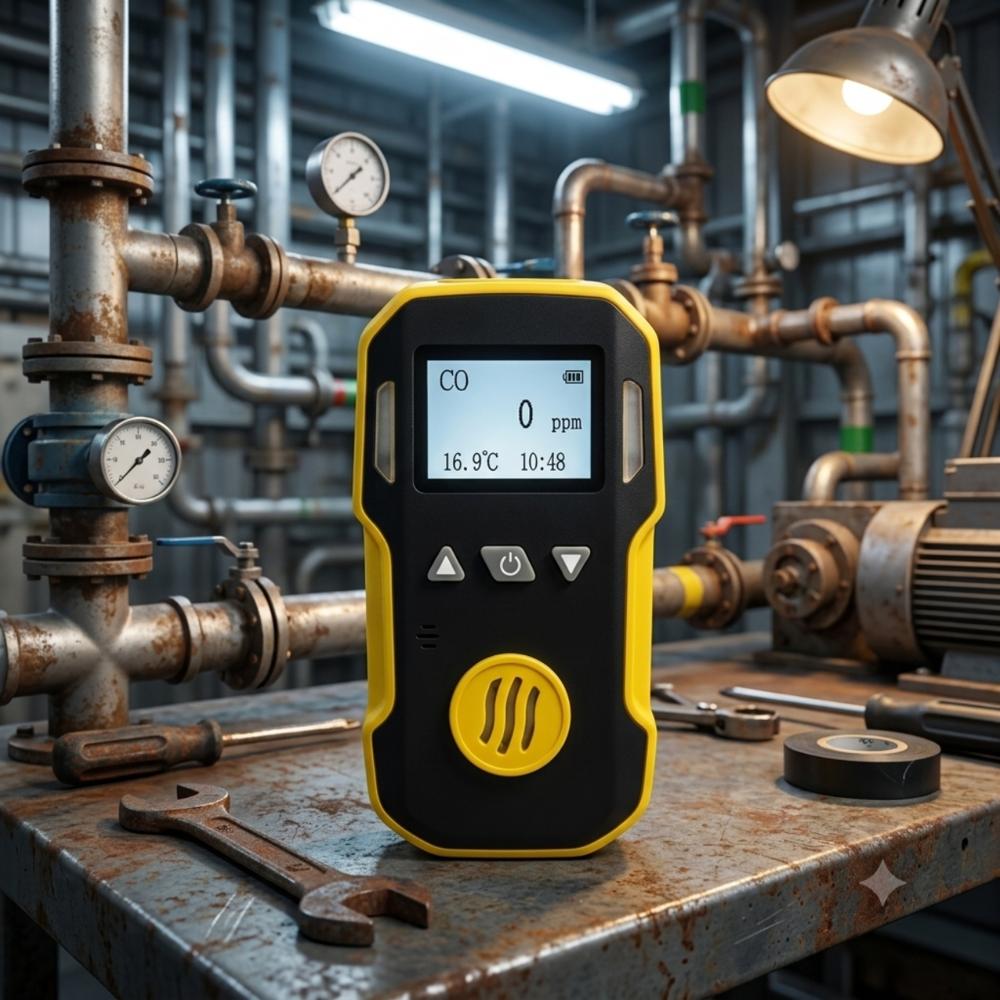

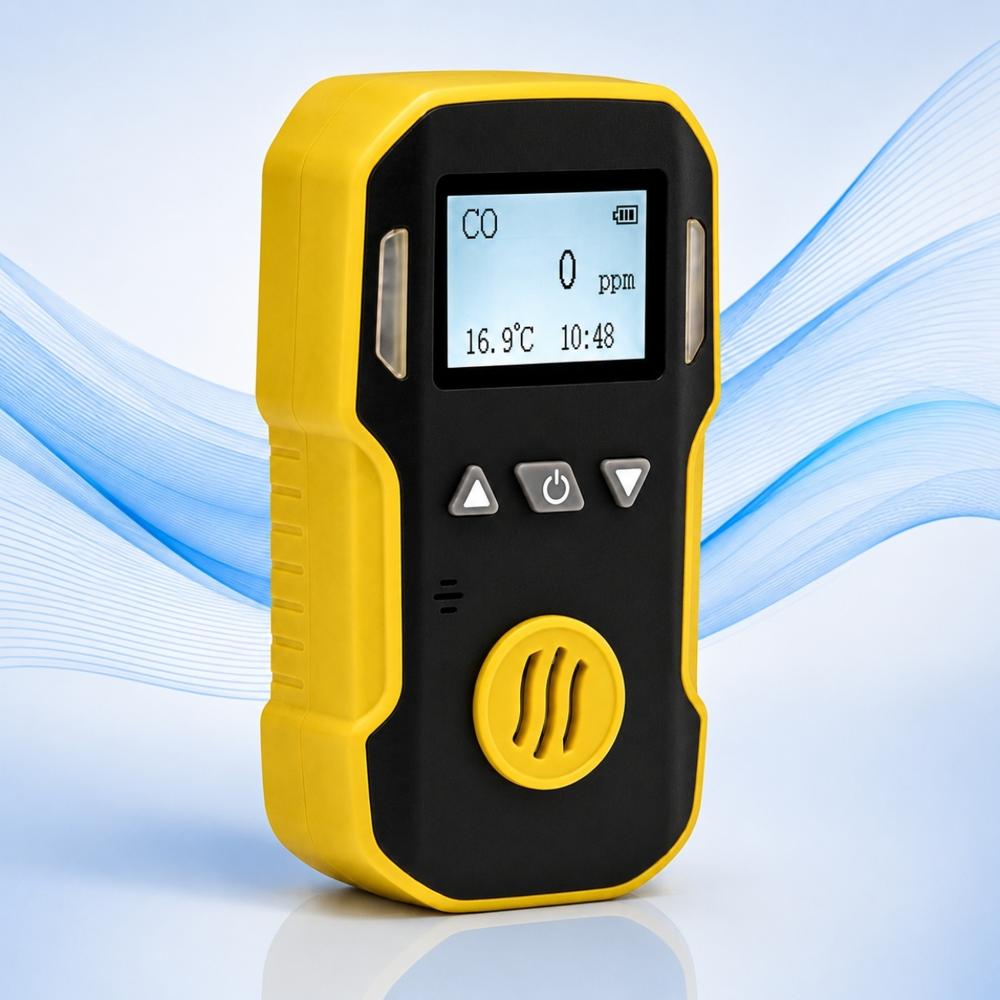

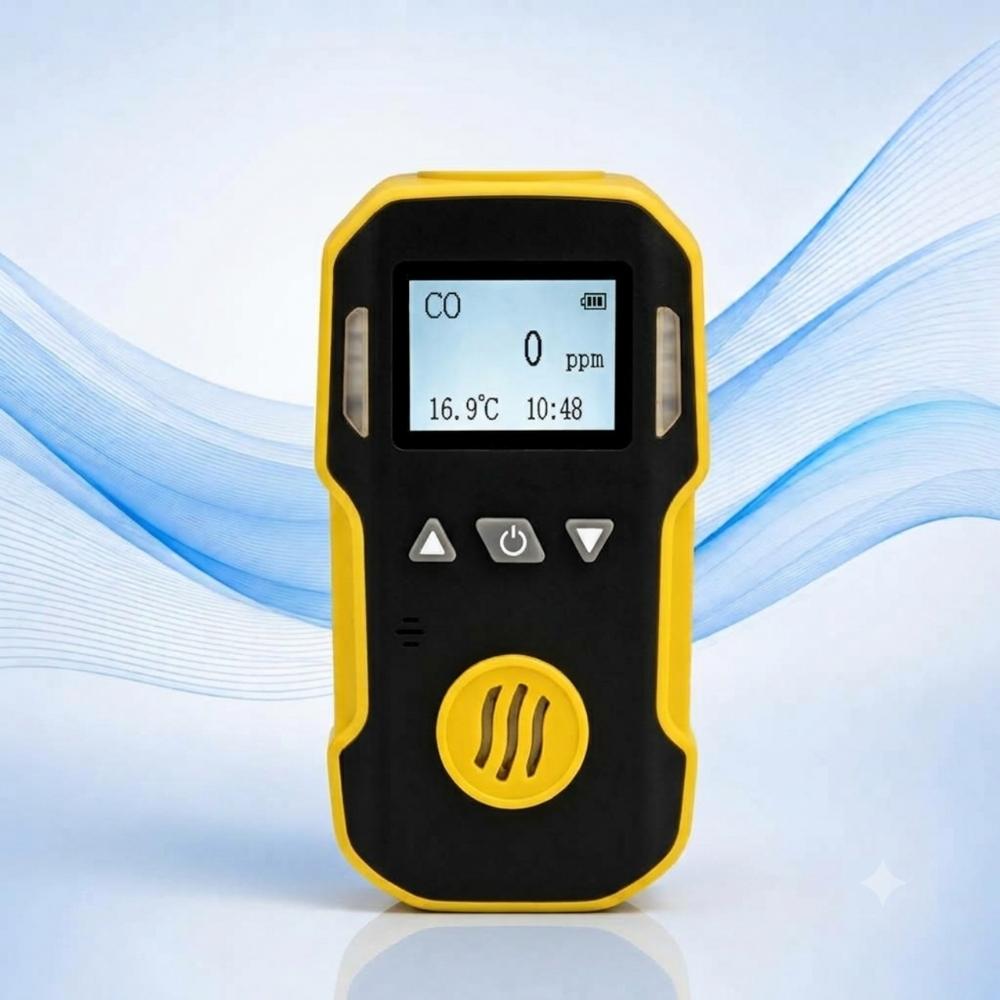

About Handheld Gas Detector

The Handheld Single Gas Detector is a compact, portable and easy-to-use gas detection instrument designed for the reliable monitoring of a specific gas in industrial and hazardous environments. The detector continuously monitors the selected gas and provides clear visual and audible alarms when the gas concentration reaches preset levels. Suitable for detecting oxygen, toxic, combustible and other hazardous gases, it is available in different gas configurations to meet application requirements. Its lightweight handheld design makes it suitable for personal safety, routine gas monitoring, leak detection and workplace safety across industries such as oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial applications. The diffusion-type design enables convenient personal gas monitoring without requiring a sampling probe or external attachments.

Advanced Sensor Technology

Utilizing an electrochemical sensor, this handheld gas detector provides sensitive, real-time detection of hazardous gases. With a resolution of 1 ppm and accuracy within 3% of full scale, users can confidently rely on its precise measurements in industrial and personal safety scenarios.


User-Friendly Operation and Navigation

The detector features intuitive button navigation and a clear LCD digital display for easy reading and simple manual control, even in challenging conditions. Its compact, ergonomic structure enhances portability, making it suitable for continuous use in the field.


Built for Rugged Environments

Constructed with a rugged ABS casing and IP65 rating, the device withstands dust, splashes, and harsh industrial settings. With up to 24 hours of battery life and rechargeability, it ensures dependable performance throughout long shifts or during emergency monitoring.

FAQ's of Handheld Gas Detector:


Q: How does the handheld gas detector alert users to dangerous gas levels?

A: The device is equipped with triple alarms: sound, light, and vibration. When gas concentrations exceed the preset threshold, all three alert modes activate simultaneously to ensure quick awareness and response, even in noisy or visually obstructed environments.

Q: What gases can this device detect and within what range?

A: This particular model is designed for carbon monoxide (CO) detection, measuring concentrations from 0 to 1000 ppm with a resolution of 1 ppm. It is best suited for industrial, commercial, and personal safety use.

Q: When should the battery be recharged, and how long does it take?

A: With a continuous operational capability of up to 24 hours, the detector should be recharged after prolonged or intensive use. The recharge process typically takes about 3 hours for a full cycle using the provided charger.

Q: Where can this handheld gas detector be used effectively?

A: It is ideal for deployment in industrial sites, confined spaces, laboratories, and any environment where air quality needs to be monitored. The IP65 protection enables its use in areas exposed to dust or occasional water splashes.

Q: What is the data storage capacity of the device, and how is it accessed?

A: There is an optional data storage feature, enabling logging of up to 1,000 individual gas detection readings. This can be useful for record-keeping, compliance, or historical trend analysis, accessible through the device's digital interface.

Q: How is the gas sampled by the detector?

A: The unit operates using the diffusion sampling method, which means it measures the surrounding air without pumps or tubing, allowing for quicker response times and enhanced portability.

Q: What are the benefits of using this portable gas detector for personal safety?

A: This device offers rapid and accurate detection of hazardous CO levels, enhances situational awareness with multiple alarms, and is engineered for durability and ease of use on the go. Its real-time LCD display and long battery life make it a vital tool for continuous protection in dynamic work environments.
