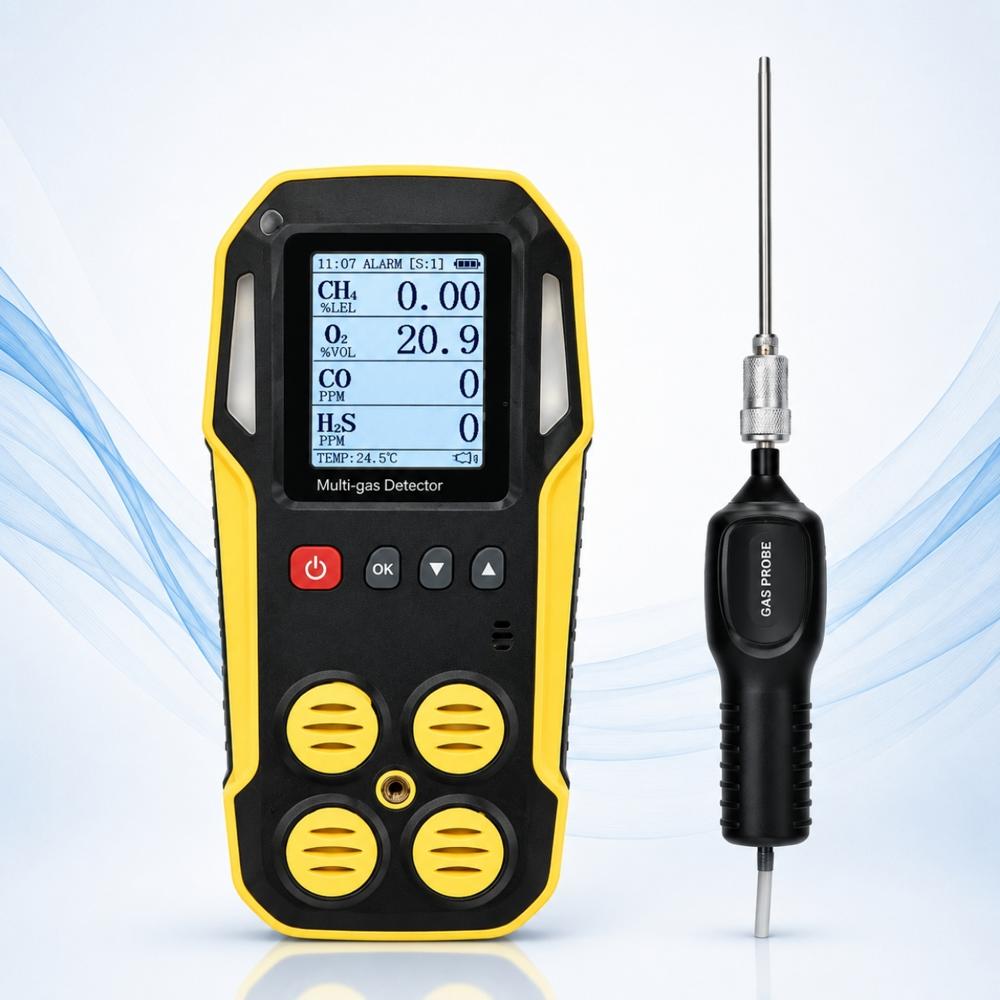

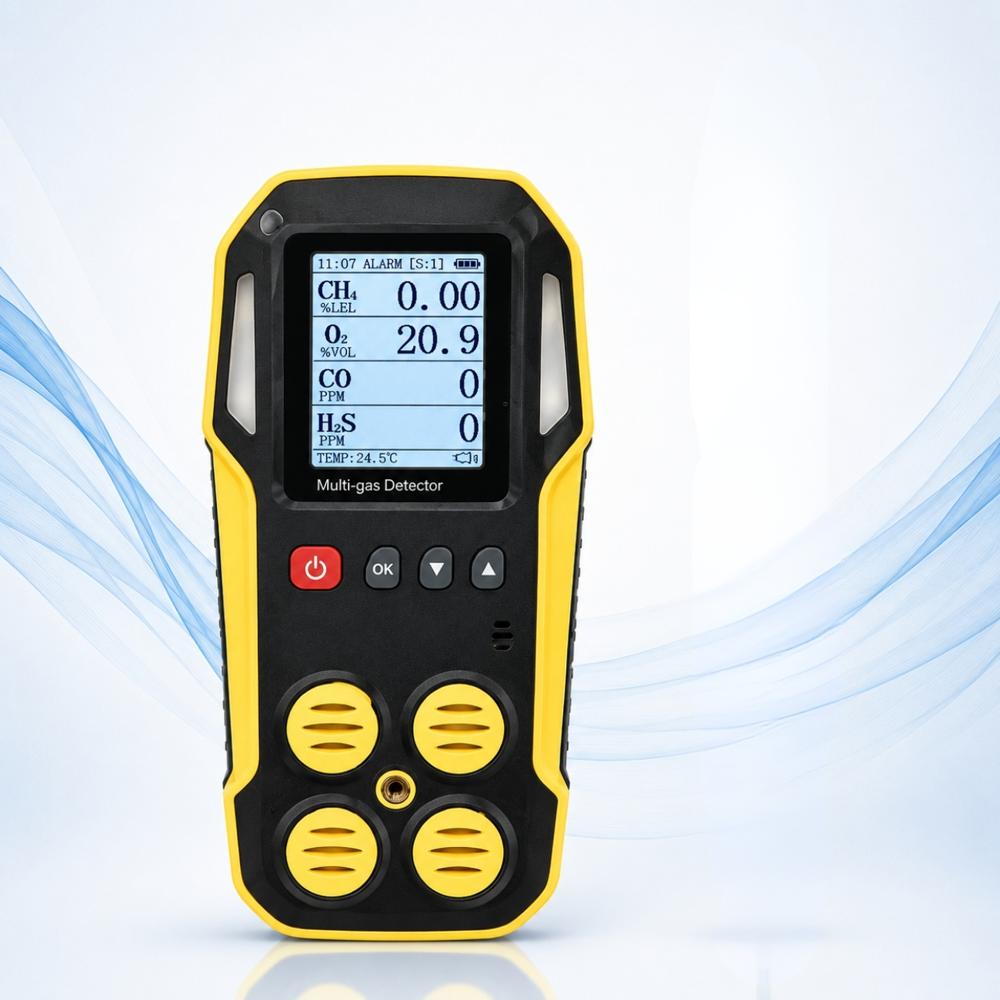

Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector

Handheld Multi Gas Detector

Price 46000.0 INR/ Piece

MOQ : 1 Piece

Handheld Multi Gas Detector Specification

  • Response Time
  • 30 seconds
  • Power Supply
  • Rechargeable Lithium Battery
  • Display Type
  • LCD Display
  • Resolution
  • CH4: 0.01%, O2: 0.1%, CO: 1 ppm, H2S: 1 ppm
  • Application
  • Industrial safety, environmental monitoring, confined space entry
  • Temperature
  • -10C to +50C
  • Test Range
  • CH4 (Methane): 0-100% LEL, O2 (Oxygen): 0-25% Vol, CO (Carbon Monoxide): 0-1000 ppm, H2S (Hydrogen Sulfide): 0-100 ppm
  • Operating Voltage
  • 3.7V DC (Lithium battery)
  • Accuracy
  • 5% of reading
  • Features
  • Simultaneous multi-gas detection, audible/visual alarm, compact design
  • Interface Type
  • Button (Panel operation)
  • Mounting Type
  • Handheld
  • Port Size
  • Standard sensor inlet (Approx. 6mm)
  • Humidity
  • 0-95% RH, non-condensing
  • Automation Grade
  • Manual
  • Gas Pressure
  • Atmospheric pressure
  • Measuring Range
  • As above - CH4, O2, CO, H2S ranges
  • Usage
  • Portable, personal gas safety detection
  • Capacity
  • Four gases simultaneously
  • Machine Weight
  • ~200g
  • Test Speed
  • Instant, Real-time
  • Test Width
  • Handheld device - N/A
  • Control Mode
  • Manual with panel controls
  • Battery Life
  • Up to 12 hours continuous operation
  • Alarm Type
  • Audible, visual, vibration
  • Dimension
  • Approx. 60mm x 130mm x 30mm
  • Ingress Protection
  • IP65 (Dust and splash-proof)
  • Sensor Type
  • Electrochemical and catalytic sensors
  • Charging Method
  • Micro USB
  • Calibration Interval
  • 6 months recommended
  • Data Logging
  • Optional internal memory for event recording
  • Equipment Type
  • Handheld Multi Gas Detector



About Handheld Multi Gas Detector

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Versatile Multi-Gas Detection

With simultaneous detection capabilities for methane, oxygen, carbon monoxide, and hydrogen sulfide, this handheld detector enhances personal protection in diverse industrial environments. Its instant detection and clear alarms provide real-time safety assurance for workers operating in hazardous or confined spaces.


User-Friendly Operation and Maintenance

The device is built for ease of use, featuring simple panel controls and an intuitive LCD display. With a recommended calibration interval of six months and easy micro USB charging, this detector is engineered for both convenience and reliability, making it suitable for both professionals and safety-conscious organizations.

FAQ's of Handheld Multi Gas Detector:


Q: How do I recharge the Handheld Multi Gas Detector?

A: You can recharge the device using the included micro USB cable by connecting it to any compatible USB power source. The rechargeable lithium battery allows for up to 12 hours of continuous operation after a full charge.

Q: What gases can this detector monitor and what are their measurement ranges?

A: The detector simultaneously monitors methane (0-100% LEL), oxygen (0-25% Vol), carbon monoxide (0-1000 ppm), and hydrogen sulfide (0-100 ppm), offering accurate readings suitable for industrial safety and environmental monitoring.

Q: When should I perform calibration and why is it important?

A: It's recommended to calibrate the detector every six months to maintain optimal accuracy. Regular calibration ensures reliable sensor performance for critical safety monitoring applications.

Q: Where can the detector be used effectively?

A: This handheld gas detector is ideal for use in industrial sites, confined spaces, environmental monitoring zones, and other settings where real-time multi-gas safety monitoring is essential.

Q: What are the key benefits of using this handheld detector?

A: Key benefits include simultaneous monitoring of four gases, fast response times, comprehensive alarm systems (audible, visual, vibration), and rugged IP65 protection for reliable performance in challenging environments.

Q: How does the detector alert users to hazardous conditions?

A: Upon detecting dangerous gas levels, the device emits audible alarms, activates visual warnings on the LCD, and vibrates to immediately alert users, ensuring prompt evacuation or intervention.

Q: What is the process for logging and reviewing event data?

A: If equipped with optional internal memory, the detector can log event data for later review. This feature facilitates incident analysis and helps organizations maintain effective safety records.
