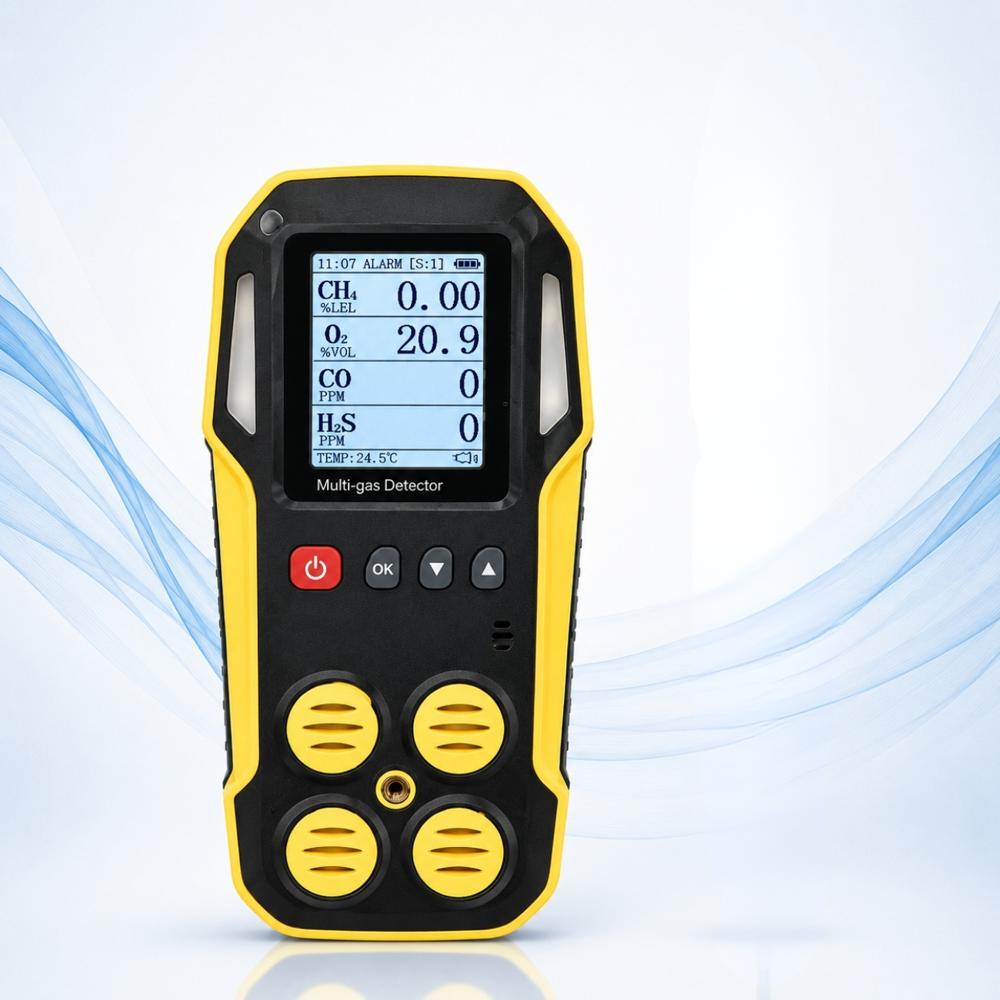

Portable Industrial Gas Detector
Portable Industrial Gas Detector
Portable Industrial Gas Detector
Portable Industrial Gas Detector
Portable Industrial Gas Detector
Portable Industrial Gas Detector

Portable Industrial Gas Detector

Price 46000.0 INR/ Piece

MOQ : 1 Piece

Portable Industrial Gas Detector Specification

  • Test Range
  • CH4 (0-100% LEL), O2 (0-30% VOL), CO (0-999 ppm), H2S (0-100 ppm)
  • Operating Voltage
  • 3.7V DC (rechargeable battery)
  • Response Time
  • 30 seconds (T90)
  • Mounting Type
  • Handheld
  • Automation Grade
  • Semi-automatic
  • Equipment Type
  • Portable Industrial Gas Detector
  • Interface Type
  • Micro-USB charging port
  • Gas Pressure
  • Atmospheric
  • Temperature
  • -20C to +50C
  • Humidity
  • 0-95% RH (non-condensing)
  • Hardness
  • IP65 (water and dust resistance)
  • Accuracy
  • 5% F.S.
  • Resolution
  • 0.01% for gases, 0.1C for temperature
  • Display Type
  • Large backlit LCD display
  • Power Supply
  • Rechargeable Lithium Battery, DC 3.7V
  • Port Size
  • Standard gas sampling port
  • Measuring Range
  • Multi-gas (CH4, O2, CO, H2S)
  • Features
  • Portable, real-time detection, audible and visual alarm, data logging
  • Application
  • Detection of combustible and toxic gases in industrial environments
  • Usage
  • Workplace safety, industrial gas detection
  • Machine Weight
  • 250 g (approx.)
  • Control Mode
  • Manual and automatic modes
  • Sampling Method
  • Diffusion
  • Alarm Method
  • Sound, light, and vibration
  • Battery Life
  • Up to 12 hours (continuous use)
  • Dimension
  • 140 mm 75 mm 30 mm
  • Detection Principle
  • Electrochemical and catalytic sensors
  • Warm-up Time
  • < 30 seconds
  • Alarm Output
  • 85 dB
  • Calibration
  • User-configurable, auto/manual
  • Data Storage
  • Supports storage of recent readings



About Portable Industrial Gas Detector

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Comprehensive Multi-Gas Detection

Efficiently monitor multiple gases simultaneously, including combustible (CH4), oxygen (O2), carbon monoxide (CO), and hydrogen sulfide (H2S). This industrial gas detector delivers high accuracy and rapid response, ensuring enhanced workplace safety in diverse environments.


User-Friendly and Portable Design

With a compact, handheld form factor and a user-friendly large backlit LCD display, this detector is suitable for on-the-go monitoring. It is easy to set up, operate, and carry, with a robust IP65 rating for water and dust resistance, making it fit for challenging work sites.


Advanced Alarm and Data Storage Features

Receive instant alerts via sound, light, and vibration when dangerous gas levels are detected. The device supports data logging of recent readings, facilitating safety audits and compliance. Calibration is simple and flexible, offering both automatic and manual modes.

FAQ's of Portable Industrial Gas Detector:


Q: How do I use the portable industrial gas detector for workplace safety?

A: To use the detector, simply power it on and allow for a warm-up time of less than 30 seconds. Hold or position the device in your target area-the diffusion sampling method enables real-time gas measurement. Audible, visual, and vibration alarms instantly notify you of dangerous gas concentrations, improving operator responsiveness.

Q: What types of gases can this detector measure and in what ranges?

A: This device measures combustible gas (CH4) from 0-100% LEL, oxygen (O2) from 0-30% volume, carbon monoxide (CO) from 0-999 ppm, and hydrogen sulfide (H2S) from 0-100 ppm. It provides high resolution-0.01% for gases and 0.1C for temperature measurements.

Q: When should I calibrate the device and what calibration options are available?

A: Calibration should be performed regularly, based on workplace protocols or whenever accuracy is critical. This detector supports both user-configurable automatic and manual calibration, ensuring you maintain reliable performance and compliance with safety requirements.

Q: Where can the gas detector be deployed and is it rugged enough for tough environments?

A: This device is designed for use in a variety of industrial settings, including factories, refineries, mining, and confined spaces. The IP65 rating provides resistance to water and dust, and the compact, lightweight design (250 g) aids use in field or indoor environments.

Q: What is the process for charging and how long does the battery last?

A: A rechargeable lithium battery powers the device and is charged via a Micro-USB port using the supplied cable. When fully charged, the detector operates for up to 12 hours of continuous use, making it reliable for typical shift durations in industrial environments.

Q: How does the data storage feature benefit workplace safety audits?

A: The built-in data logging records recent gas measurement readings, enabling you to review or export records during safety checks. This functionality assists in compliance with industry regulations and helps identify recurring safety hazards over time.
