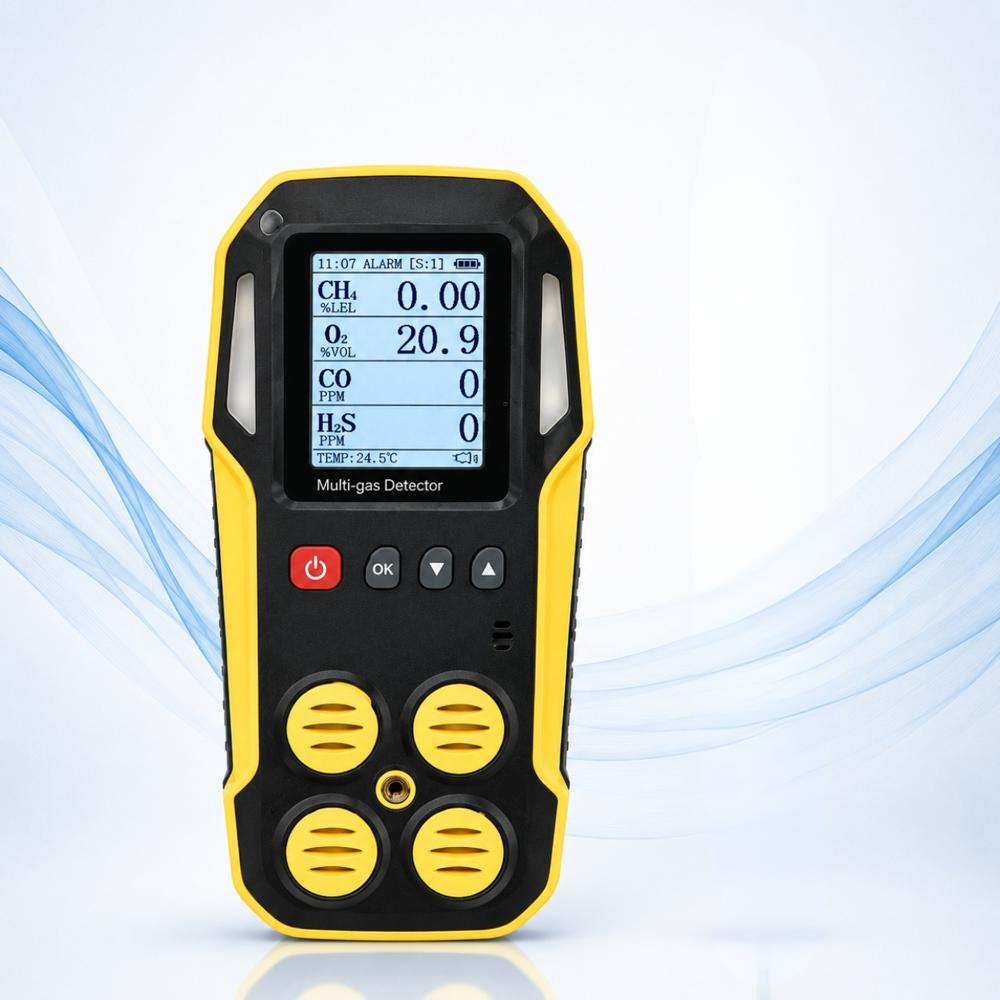

Portable Multi Gas Analyzer
Portable Multi Gas Analyzer
Portable Multi Gas Analyzer
Portable Multi Gas Analyzer
Portable Multi Gas Analyzer
Portable Multi Gas Analyzer

Portable Multi Gas Analyzer

Price 48000.0 INR/ Piece

MOQ : 1 Piece

Portable Multi Gas Analyzer Specification

  • Gas Pressure
  • Atmospheric
  • Response Time
  • < 30 sec
  • Features
  • Multi Gas Detection, Audible & Visual Alarm, Backlight, Compact Design
  • Interface Type
  • USB Charging Port
  • Mounting Type
  • Handheld
  • Frequency
  • Continuous
  • Specimen Size
  • Portable (Handheld)
  • Application
  • Gas Leak Detection, Industrial Safety, Environmental Monitoring
  • Equipment Type
  • Portable Multi Gas Analyzer
  • Temperature
  • -20C to 50C
  • Number of Specimens
  • 1
  • Humidity
  • 0~95% RH non-condensing
  • Test Range
  • See below (per gas type)
  • Hardness
  • Industrial-grade Materials
  • Display Type
  • LCD Digital Display
  • Automation Grade
  • Automatic
  • Power Supply
  • Rechargeable Lithium Battery
  • Resolution
  • O2: 0.1%, Other Gases: 1 ppm
  • Operating Voltage
  • 3.7V DC
  • Port Size
  • Standard Gas Inlet
  • Max Height
  • 160mm
  • Measuring Range
  • CH4: 0-100% LEL, O2: 0-30% VOL, CO: 0-1000 ppm, H2S: 0-100 ppm
  • Accuracy
  • 3% F.S.
  • Usage
  • Personal & Industrial Safety, Hazardous Area Monitoring
  • Capacity
  • Up to 4 gases simultaneously
  • Machine Weight
  • 250g
  • Test Speed
  • Instantaneous
  • Test Width
  • Handheld
  • Test Stroke
  • Continuous measurement
  • Control Mode
  • Button Control
  • Sensor Type
  • Electrochemical (for toxic gases and oxygen), Catalytic (for combustibles)
  • Storage Temperature
  • -25C to 55C
  • Battery Life
  • 8-10 hours continuous operation
  • Supported Gases
  • Methane (CH4), Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulphide (H2S)
  • Charging Time
  • 3-4 hours
  • Calibration
  • Factory Calibrated, Manual Calibration Supported
  • Ingress Protection
  • IP65 (Dust and Water Resistant)
  • Data Logging
  • Optional capability
  • Alarm Thresholds
  • User Adjustable
  • Alarm Type
  • Audible, Visual, Vibration



About Portable Multi Gas Analyzer

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Comprehensive Multi-Gas Detection

Detect up to four harmful gases simultaneously, including CH4, O2, CO, and H2S. Fast sensor response and industrial-grade durability make this portable analyzer a trusted tool for safety compliance and workplace monitoring. Its instant measurement capabilities and clear LCD display provide users with accurate, real-time data.


User-Friendly Operation and Control

With simple button controls and an ergonomic handheld design, this analyzer is highly portable and easy to use in the field. User-adjustable alarm thresholds and an intuitive interface ensure operators can quickly set up and respond to safety alerts as they arise.


Reliable Performance for Demanding Environments

Designed to withstand dust and water (IP65 rated), this analyzer performs reliably in temperatures from -20C to 50C. Its long battery life, quick recharge, and continuous measurement mode support extended industrial and environmental monitoring assignments.

FAQ's of Portable Multi Gas Analyzer:


Q: How does the Portable Multi Gas Analyzer detect multiple gases at once?

A: This device uses specialized electrochemical sensors for detecting toxic gases and oxygen, and a catalytic sensor for combustibles like methane. It is capable of monitoring up to four gases-CH4, O2, CO, and H2S-simultaneously, providing continuous, real-time readings on its digital LCD display.

Q: What is the process for calibrating the analyzer?

A: The analyzer is factory calibrated for convenience and accuracy, but users can also perform manual calibration as needed. This ensures ongoing precise measurements, especially in varying environmental or industrial conditions.

Q: When should I recharge the battery, and how long does it take?

A: The built-in rechargeable lithium battery offers 8-10 hours of continuous use. It is advisable to recharge after each work shift, or when the battery indicator drops low. Charging is accomplished via the USB port and takes approximately 3-4 hours.

Q: Where can the Portable Multi Gas Analyzer be used?

A: Due to its IP65 dust- and water-resistant rating and operating temperature range of -20C to 50C, the analyzer excels in industrial sites, hazardous area monitoring, gas leak detection, and environmental assessment.

Q: What are the user benefits of adjustable alarm thresholds?

A: Adjustable alarm thresholds allow users to set specific safety limits for each gas based on site requirements. Coupled with audible, visual, and vibration alarms, this feature maximizes personal and workplace safety by ensuring timely warnings.

Q: How is data logging supported and accessed?

A: For users who require recordkeeping or trend analysis, the device offers optional data logging capability. Recorded data can be transferred and analyzed as part of routine health, safety, and compliance audits.
