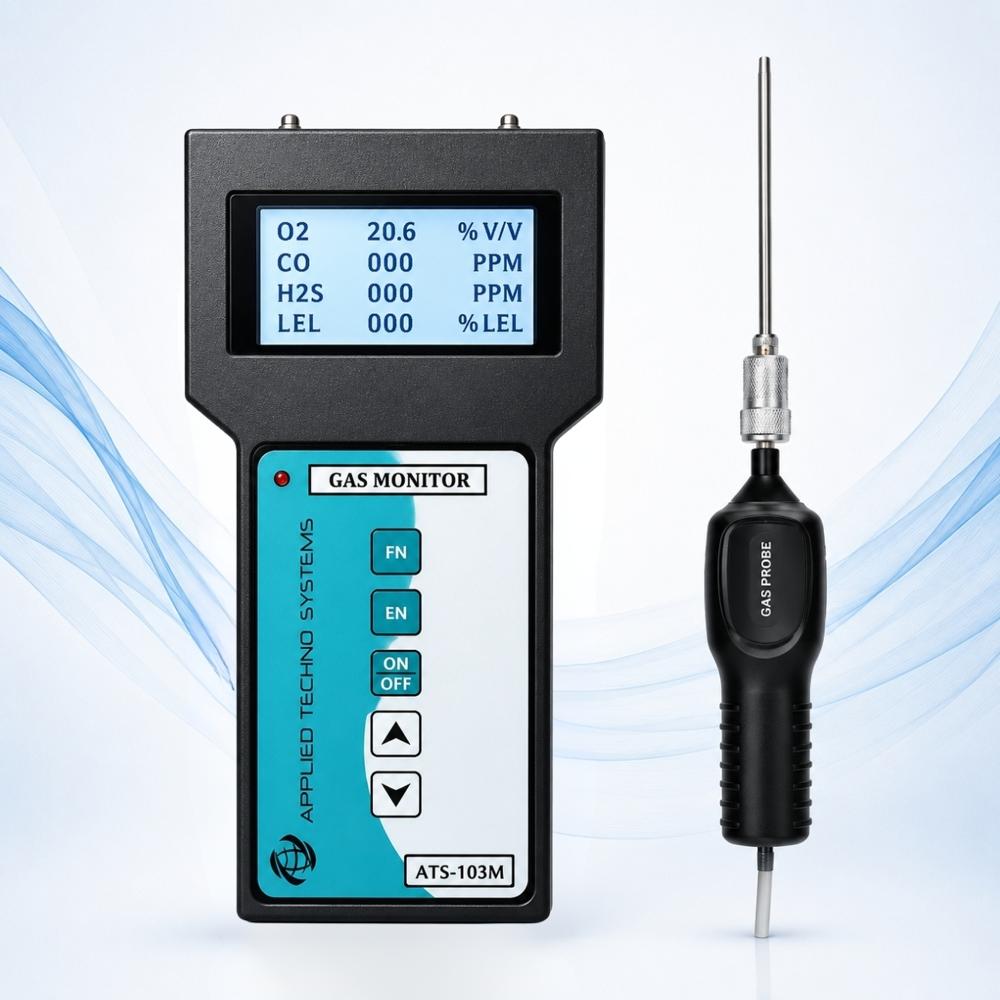

Portable Multi Gas Monitor
Portable Multi Gas Monitor
Portable Multi Gas Monitor
Portable Multi Gas Monitor
Portable Multi Gas Monitor
Portable Multi Gas Monitor

Portable Multi Gas Monitor

Price 73000.0 INR/ Piece

MOQ : 1 Piece

Portable Multi Gas Monitor Specification

  • Test Range
  • O2: 0-30% VOL, CO: 0-1000 PPM, H2S: 0-100 PPM, LEL: 0-100% LEL
  • Application
  • Industrial gas detection, safety monitoring
  • Operating Voltage
  • 3.7V (with battery)
  • Gas Pressure
  • Atmospheric
  • Measuring Range
  • O2: 0-30% Vol, CO: 0-1000 PPM, H2S: 0-100 PPM, LEL: 0-100% LEL
  • Features
  • Simultaneous multi-gas detection, alarm function, data logging, robust design
  • Interface Type
  • Digital; RS232/USB optional
  • Power Supply
  • Rechargeable Li-ion Battery / AC Adapter (100-240V, 50/60Hz)
  • Number of Specimens
  • 1 location at a time
  • Display Type
  • Large backlit LCD display
  • Port Size
  • Standard gas inlet for probe connection
  • Humidity
  • 0-95% RH (non-condensing)
  • Accuracy
  • 2% F.S. (varies by gas)
  • Response Time
  • 30 seconds
  • Temperature
  • -10C to 50C operating range
  • Equipment Type
  • Portable Multi Gas Monitor
  • Automation Grade
  • Automatic
  • Resolution
  • O2: 0.1%, CO: 1 PPM, H2S: 0.1 PPM, LEL: 1% LEL
  • Mounting Type
  • Handheld, portable
  • Usage
  • Detection of gas leaks and worker safety
  • Capacity
  • Multi-gas (O2/CO/H2S/LEL simultaneous detection)
  • Machine Weight
  • Approx. 500 g (with battery and probe)
  • Test Speed
  • Instantaneous measurement
  • Control Mode
  • Microprocessor based control
  • Sensor Type
  • Electrochemical and catalytic sensors
  • Alarm Types
  • Visual and audible alarms for threshold exceedance
  • Probe Type
  • Detachable, stainless steel gas probe
  • Enclosure Material
  • High-impact ABS plastic housing
  • Data Logging
  • Built-in memory for data storage and transfer
  • Calibration
  • User-friendly, field calibration supported
  • Battery Life
  • Up to 12 hours continuous operation
  • Dimensions
  • Approx. 180 mm x 85 mm x 40 mm



About Portable Multi Gas Monitor

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Simultaneous Multi-Gas Detection

This portable monitor empowers safety teams with the ability to detect oxygen, carbon monoxide, hydrogen sulfide, and combustible gases concurrently. Fast response time and high measurement accuracy support immediate decision-making during gas leak investigations or routine safety checks.


User-Friendly Operation and Calibration

Designed for ease of use, the instrument features an intuitive interface, quick field calibration procedures, and a detachable probe for flexible monitoring in challenging environments. Its lightweight, handheld profile ensures convenient transport and operation in the field.


Reliable Alerts and Data Management

Equipped with both visual and audible alarms, the monitor instantly warns users of hazardous gas concentrations. The built-in data logger stores critical readings, which can be easily transferred through optional digital interfaces for compliance and record-keeping.

FAQ's of Portable Multi Gas Monitor:


Q: How does the Portable Multi Gas Monitor alert users to dangerous gas levels?

A: The monitor is equipped with both visual and audible alarms that activate immediately when gas concentrations exceed preset safety thresholds. This dual alarm system ensures that users are promptly notified to take necessary action.

Q: What types of sensors are used in this device and what gases can it detect?

A: The monitor employs electrochemical sensors for toxic gases and an advanced catalytic sensor for combustible gases, allowing simultaneous detection of O2, CO, H2S, and LEL, ensuring comprehensive safety coverage in industrial settings.

Q: When should field calibration be performed and how is it done?

A: Field calibration is recommended before each use, especially in safety-critical applications. The device is designed for user-friendly calibration, typically involving the application of calibration gases and following guided on-screen prompts.

Q: Where can the detector be used and under what environmental conditions?

A: The monitor is suitable for use in industrial environments, warehouses, or confined spaces where gas leaks are a potential hazard. It operates reliably in temperatures from -10C to 50C and in humidity levels up to 95% RH (non-condensing).

Q: What is the process for transferring stored gas measurement data?

A: Stored data can be transferred from the built-in memory using an optional RS232 or USB digital interface. This enables users to maintain detailed logs for analysis, safety audits, or regulatory compliance.

Q: How long does the battery last during continuous operation and how is it recharged?

A: The rechargeable Li-ion battery provides up to 12 hours of continuous monitoring. Recharging is accomplished via the included AC adapter, compatible with global voltages (100-240V, 50/60Hz).

Q: What are the main benefits of using this multi-gas monitor in industrial settings?

A: The device offers the advantage of early hazard detection, streamlined data logging for compliance, and rugged construction for durability. Its portability and instant readings make it indispensable for workplace safety and incident prevention.
