Multi Gas Monitoring Device
Multi Gas Monitoring Device
Multi Gas Monitoring Device
Multi Gas Monitoring Device
Multi Gas Monitoring Device
Multi Gas Monitoring Device

Multi Gas Monitoring Device

Price 50000.0 INR/ Unit

MOQ : 1 Unit

Multi Gas Monitoring Device Specification

  • Application
  • Industrial Safety, Confined Space Detection, Environmental Monitoring
  • Measuring Range
  • CH4: 0-100%LEL, O2: 0-30%VOL, CO: 0-1000ppm, H2S: 0-100ppm
  • Accuracy
  • 3% F.S.
  • Automation Grade
  • Semi-automatic
  • Temperature
  • -20C to 50C
  • Port Size
  • Standard Gas Sensor Ports
  • Equipment Type
  • Multi Gas Monitoring Device
  • Resolution
  • CH4: 0.01%LEL, O2: 0.1%VOL, CO: 1ppm, H2S: 0.1ppm
  • Mounting Type
  • Handheld
  • Humidity
  • 0-95% RH (non-condensing)
  • Operating Voltage
  • 3.7V Rechargeable Battery
  • Interface Type
  • Standard Port, Micro USB Charging
  • Display Type
  • LCD Digital Screen
  • Gas Pressure
  • Atmospheric
  • Power Supply
  • Rechargeable Lithium-ion Battery
  • Features
  • Portable, Audible-Visual-Vibration Alarm, Large Screen Display
  • Response Time
  • 30s
  • Test Range
  • Multi-gas (CH4, O2, CO, H2S)
  • Usage
  • Real-time Multi-gas Detection
  • Machine Weight
  • 240g (including battery)
  • Test Speed
  • Instantaneous detection
  • Control Mode
  • Button Interface
  • Data Storage
  • Records up to 100,000 entries
  • Language Support
  • English, Others Optional
  • Protection Grade
  • IP65 (Dustproof and Water Resistant)
  • Alarm Type
  • Sound, Light, Vibration
  • Battery Life
  • Up to 8-10 hours continuous work
  • Color
  • Yellow and Black
  • Operating Altitude
  • Up to 5000m above sea level
  • Alarm Points
  • User Adjustable for Each Gas
  • Dimensions
  • 130mm x 60mm x 35mm
  • Sensor Types
  • Electrochemical (O2, CO, H2S), Catalytic (CH4)
  • Charging Time
  • Approximately 4 hours

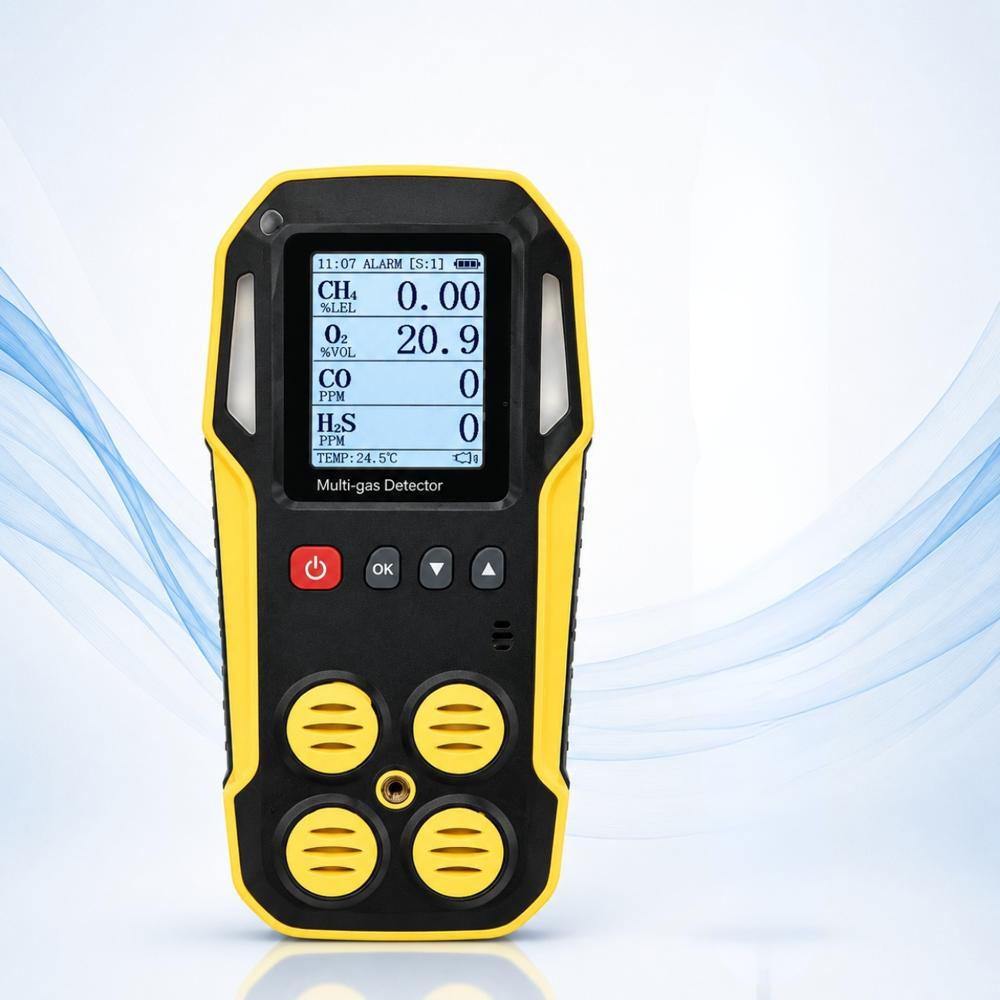

About Multi Gas Monitoring Device

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

High-Precision Multi-Gas Detection

Utilizing both electrochemical and catalytic sensors, this device monitors O2, CO, H2S, and CH4 for real-time, reliable gas detection. Rapid response times and high resolution ensure users receive precise, up-to-the-second measurements in demanding environments.


Versatile Alarm System

The alarm system combines sound, light, and vibration alerts, allowing adaptation to noisy or visually obstructed workplaces. Users can set alarm thresholds for each gas, ensuring customizable safety adjustments that fit specific operational requirements and environments.


Durable and User-Friendly Design

With IP65 dust and water resistance, a rugged yellow-and-black body, and a button-based control interface, the device functions reliably in harsh conditions. The large LCD digital screen offers clear readouts, while the portable, lightweight design maximizes user comfort during extended monitoring jobs.

FAQ's of Multi Gas Monitoring Device:


Q: How does the multi gas monitoring device detect gases?

A: The device uses electrochemical sensors for O2, CO, and H2S, and a catalytic sensor for CH4 (methane). These sensors provide instantaneous readings with high accuracy, allowing early detection of hazardous gas levels in the environment.

Q: What types of alarms does the device have, and are they adjustable?

A: It features sound, light, and vibration alarms. Users can independently set alarm points for each monitored gas, enabling tailored responses based on the specific safety requirements of their workspace.

Q: When should the device be recharged, and how long does charging take?

A: The rechargeable lithium-ion battery supports 8 to 10 hours of continuous work. Recharge the device when battery levels are low, which takes approximately 4 hours via the standard Micro USB port.

Q: Where can this multi gas monitoring device be used most effectively?

A: This device is suitable for industrial safety, confined space detection, and environmental monitoring. Its IP65 protection grade enables reliable operation in dusty, humid, or wet settings-making it ideal for factories, mines, and construction sites.

Q: What is the data storage capacity and benefit of this feature?

A: It can store up to 100,000 entries, allowing users to log and analyze gas detection data over time. This supports robust record-keeping for safety audits and regulatory compliance.

Q: How is the device operated and what is the display type?

A: The device is operated using a simple button interface for easy control. It features a large LCD digital screen that displays real-time data, ensuring quick interpretation of readings for immediate action.

Q: What is the temperature and humidity range for proper operation?

A: The device operates efficiently in temperatures from -20C to 50C and can function in humidity levels up to 95% RH (non-condensing), ensuring dependable performance in challenging environments.
