Handheld Multi Gas Monitoring Instrument with Pump
Handheld Multi Gas Monitoring Instrument with Pump
Handheld Multi Gas Monitoring Instrument with Pump
Handheld Multi Gas Monitoring Instrument with Pump
Handheld Multi Gas Monitoring Instrument with Pump
Handheld Multi Gas Monitoring Instrument with Pump

Handheld Multi Gas Monitoring Instrument with Pump

Price 85000.0 INR/ Piece

MOQ : 1 Piece

Handheld Multi Gas Monitoring Instrument with Pump Specification

  • Humidity
  • 0-95% RH (non-condensing)
  • Response Time
  • < 30 seconds (typical)
  • Operating Voltage
  • DC 3.7V (battery)
  • Accuracy
  • 2% of full-scale (sensor dependent)
  • Equipment Type
  • Handheld Multi Gas Monitoring Instrument with Pump
  • Features
  • Internal pump, Audible & visual alarms, Data hold, Ergonomic design
  • Power Supply
  • Rechargeable lithium battery / 230V AC adaptor
  • Automation Grade
  • Semi-automatic
  • Gas Pressure
  • Atmospheric (ambient sampling)
  • Measuring Range
  • O2: 0-30% V/V, CO: 0-1000 PPM, H2S: 0-100 PPM, LEL: 0-100% LEL
  • Temperature
  • -20C to +50C operating range
  • Display Type
  • Large digital LCD
  • Interface Type
  • Keypad
  • Max Height
  • Handheld - portable
  • Mounting Type
  • Handheld
  • Application
  • Detection of O2, CO, H2S, and combustible gases in industrial and confined spaces
  • Resolution
  • O2: 0.1%, Gases: 1 PPM / 0.1% LEL
  • Test Range
  • O2: 0-30% V/V, CO: 0-1000 PPM, H2S: 0-100 PPM, LEL: 0-100% LEL
  • Port Size
  • Standard probe connector
  • Usage
  • Field and on-site gas monitoring
  • Capacity
  • Multi-gas detection
  • Machine Weight
  • Approx. 450g (without probe and battery)
  • Control Mode
  • Manual operation via keypad
  • Sensor Type
  • Electrochemical & catalytic sensors (sensor dependent)
  • Battery Life
  • 8-10 hours continuous use
  • Dimensions
  • Approx. 200 x 90 x 40 mm (main unit)
  • Sampling Method
  • Internal pump for active sampling
  • Protection Rating
  • IP54 (main unit)
  • Data Logging
  • Available (internal memory/optional)
  • Model
  • ATS-103M
  • Warm-up Time
  • < 60 seconds
  • Calibration
  • User adjustable, calibration reminder
  • Alarm Type
  • Audible and visual alarms



About Handheld Multi Gas Monitoring Instrument with Pump

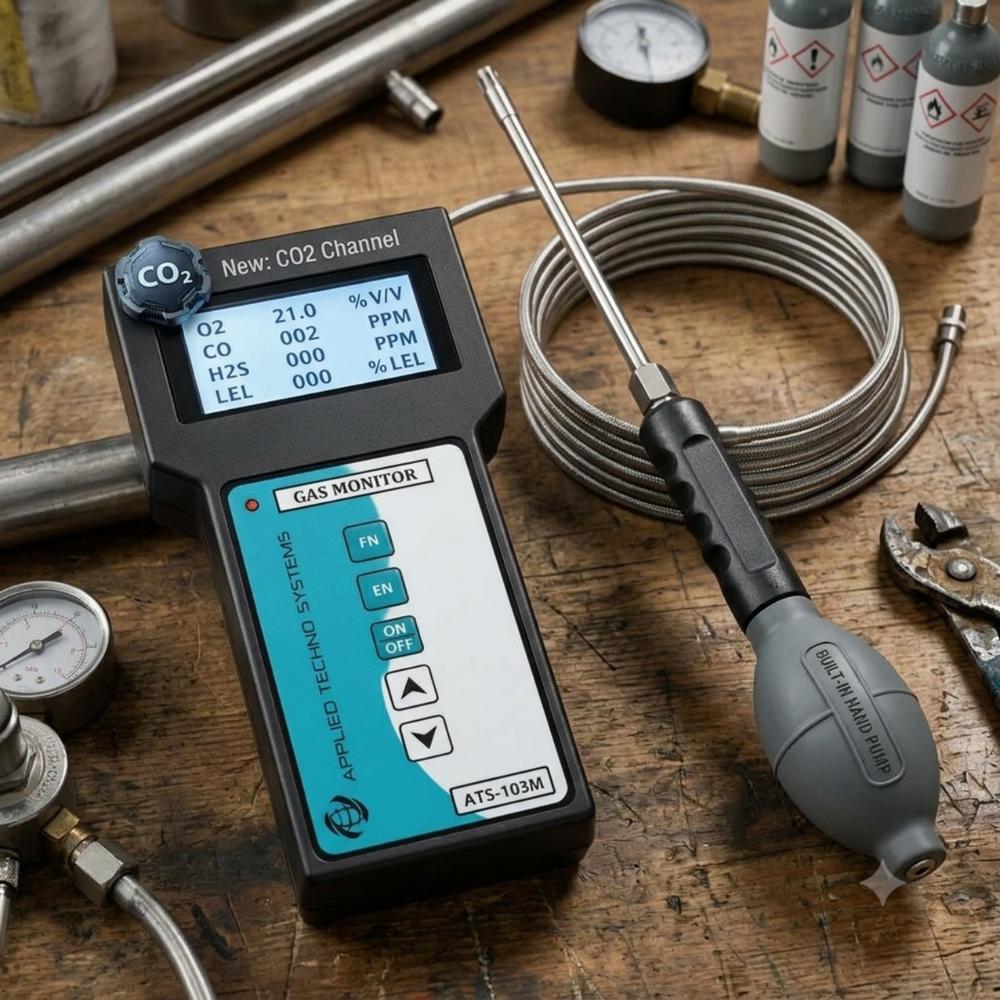

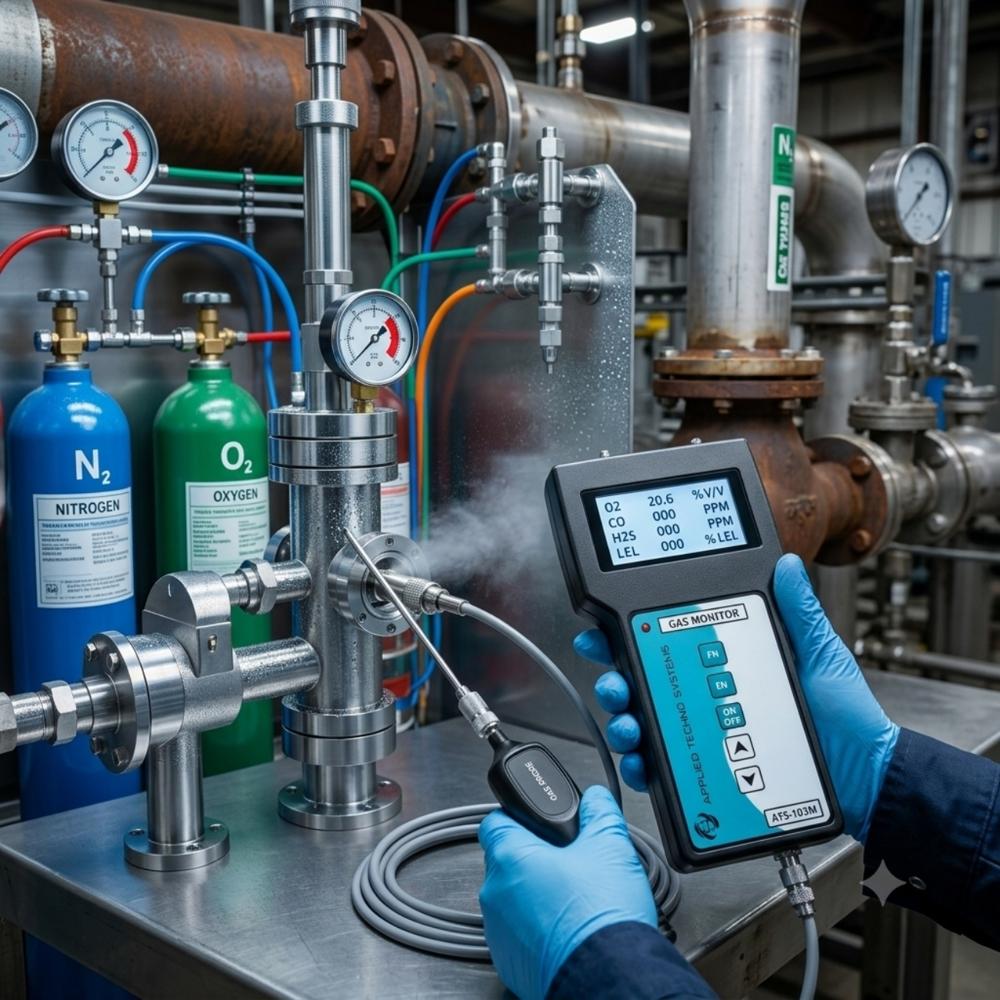

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Efficient Multi-Gas Detection

Designed for simultaneous detection of oxygen, carbon monoxide, hydrogen sulfide, and combustible gases, the ATS-103M offers reliability and precision in hazardous environments. Its high-resolution sensors and ergonomic form factor equip professionals to conduct active sampling quickly and confidently.


Advanced Features for Safety

The instrument integrates an internal pump, audible and visual alarms, and a user-friendly keypad interface. Calibration is user-adjustable, with reminders for maintenance, ensuring optimal performance. The IP54 protection, semi-automatic control mode, and data hold function enhance operational safety and convenience.


Versatile Application and Portability

Suitable for field and on-site gas monitoring, the ATS-103M is lightweight and portable, easily used in industrial and confined spaces. Its rechargeable lithium battery, atmospheric ambient sampling, and robust construction make it ideal for exporters, importers, manufacturers, suppliers, and service providers.

FAQ's of Handheld Multi Gas Monitoring Instrument with Pump:


Q: How does the ATS-103M sample and detect gases during operation?

A: The ATS-103M utilizes an internal pump for active sampling, drawing ambient air through a standard probe connector. It uses electrochemical and catalytic sensors to accurately detect O2, CO, H2S, and combustible gases.

Q: What benefits does the ATS-103M offer for onsite gas monitoring?

A: The device provides fast response times, accurate readings, and effective safety alarms. Its portable design, extended battery life, and robust sensor reliability make it ideal for use in various industrial and field environments.

Q: When should calibration be performed on the ATS-103M?

A: Calibration can be adjusted by the user and is recommended periodically or after prolonged use, with built-in reminders to prompt maintenance. This ensures consistent measurement accuracy and operational safety.

Q: Where can the ATS-103M be used effectively?

A: The ATS-103M is designed for industrial sites, confined spaces, factories, and hazardous work environments where gas detection is vital. Its portability makes it suitable for field use and site inspections.

Q: What is the process for data logging with this instrument?

A: The ATS-103M features internal memory and optional data logging capability. Measurements can be stored digitally for later review and analysis, enabling comprehensive documentation of gas monitoring activities.

Q: How are alarms activated during gas detection?

A: Audible and visual alarms will automatically trigger when gas concentrations exceed preset thresholds, alerting users in real-time to hazardous conditions for immediate action.

Q: What advantages does the internal pump provide?

A: The built-in pump ensures active and continuous sampling of gases, resulting in faster detection and improved accuracy, especially in environments where passive diffusion might be inadequate.
