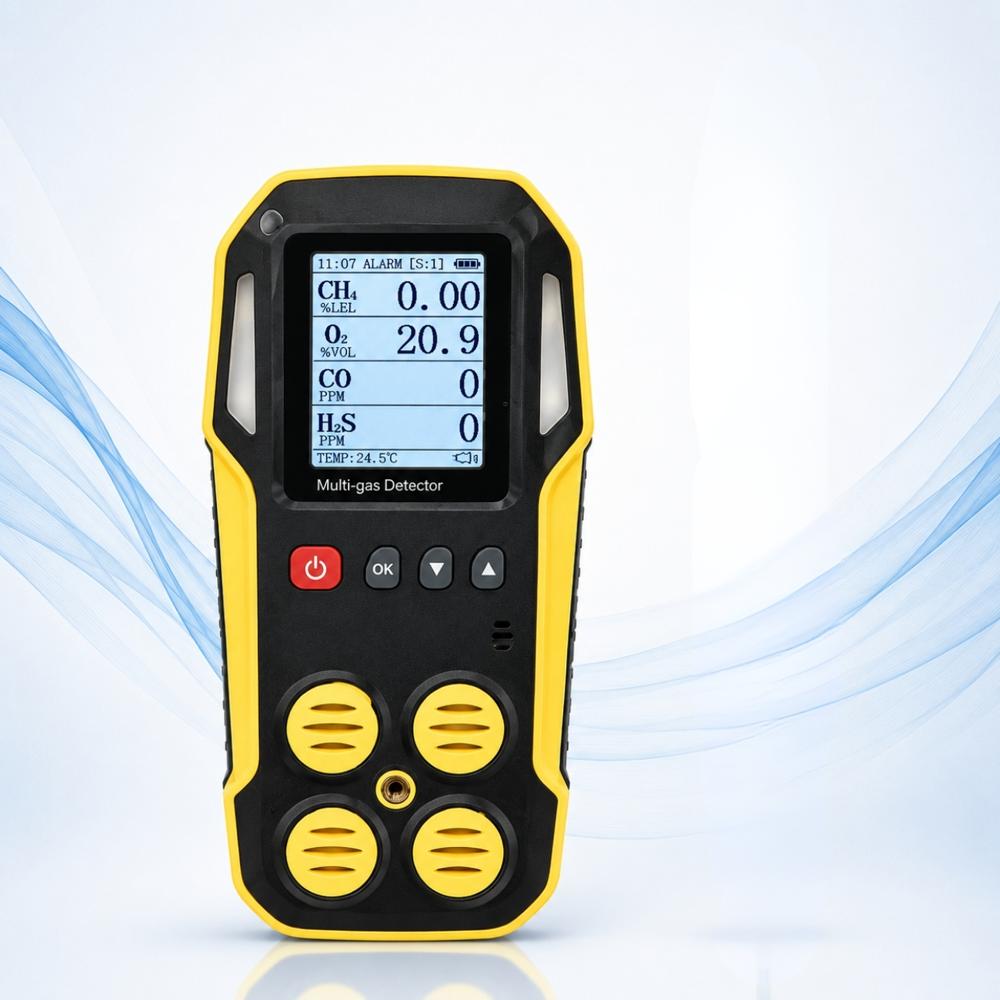

Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector

Portable Multi Gas Detector

Price 49000.0 INR/ Piece

MOQ : 1 Piece

Portable Multi Gas Detector Specification

  • Display Type
  • Backlit LCD Display
  • Response Time
  • <30 seconds
  • Application
  • Industrial, Safety Monitoring, Environmental Gas Detection
  • Operating Voltage
  • DC 3.7V
  • Equipment Type
  • Portable Multi Gas Detector
  • Temperature
  • -20C to 50C
  • Test Range
  • CH4: 0-100%LEL, O2: 0-30%Vol, CO: 0-1000ppm, H2S: 0-100ppm
  • Interface Type
  • Micro USB for charging
  • Port Size
  • Standard Gas Inlet
  • Humidity
  • 0-95% RH (non-condensing)
  • Gas Pressure
  • Atmospheric
  • Features
  • Real-time monitoring, visual and audible alarm, compact design
  • Resolution
  • O2: 0.1%Vol, CO: 1ppm, H2S: 0.1ppm, CH4: 0.1%LEL
  • Power Supply
  • Rechargeable Lithium Battery (3.7V)
  • Accuracy
  • 5% F.S
  • Measuring Range
  • Multi-range (CH4, O2, CO, H2S)
  • Mounting Type
  • Handheld, Portable
  • Automation Grade
  • Manual
  • Max Height
  • 14 cm (approx.)
  • Usage
  • Detection of combustible gas, oxygen, carbon monoxide, hydrogen sulfide
  • Capacity
  • Detects up to 4 gases simultaneously
  • Machine Weight
  • 220 grams
  • Control Mode
  • Manual
  • Operating Environment
  • Hazardous & confined spaces
  • Protection Rating
  • IP65
  • Dimensions
  • 145 x 75 x 46 mm
  • Sensor Type
  • Electrochemical & Catalytic Sensors
  • Charging Time
  • 4-6 hours
  • Calibration
  • Automatic/Manual
  • Alarm Mode
  • Audible, Visual, Vibration
  • Battery Life
  • 12 hours continuous operation
  • Data Logging
  • Yes, with internal memory



About Portable Multi Gas Detector

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Reliable Multi-Gas Detection

Monitor methane, oxygen, carbon monoxide, and hydrogen sulfide simultaneously with high sensitivity and accuracy. The unit is engineered for quick response times and reliable readings even in challenging industrial environments, ensuring enhanced safety for personnel.


Built for Hazardous Environments

With a durable construction rated IP65, this detector is resistant to dust and water jets, ideal for confined spaces or harsh worksites. It features a robust, lightweight design that allows for easy, handheld operation during extended field shifts.


Advanced Alarm and Data Logging Features

Stay informed with integrated visual, audible, and vibration alarms. The device logs critical measurement data in its internal memory, supporting both safety audits and compliance documentation, while the backlit LCD ensures visibility in low-light scenarios.

FAQ's of Portable Multi Gas Detector:


Q: How does the Portable Multi Gas Detector alert users to dangerous gas levels?

A: The detector uses a triple alarm system-audible buzzer, bright visual LEDs, and vibration-to immediately notify users when gas concentrations exceed preset thresholds, ensuring quick evacuation or corrective action.

Q: What types of gases can this device monitor and what is the detection range?

A: It detects methane (0-100% LEL), oxygen (0-30% Vol), carbon monoxide (0-1000 ppm), and hydrogen sulfide (0-100 ppm), with fine resolution suitable for accurate real-time measurements.

Q: When should the gas detector be calibrated and how is this completed?

A: Calibration should be performed regularly as recommended in your safety protocol or after extended storage. The device supports both automatic and manual calibration modes for user convenience.

Q: Where can this multi gas detector be effectively used?

A: It is suitable for hazardous and confined spaces, including industrial plants, mining operations, environmental monitoring, and any setting where gas safety monitoring is essential.

Q: What process is used for charging and how long does it last?

A: Charge the unit using the Micro USB interface; a full charge takes 4-6 hours and provides approximately 12 hours of continuous operation, making it reliable for long shifts.

Q: How is the data logging feature beneficial for users?

A: Internal memory stores gas concentration data, which is valuable for safety records, incident reviews, and regulatory compliance. This feature simplifies documentation and enhances traceability.

Q: What are the advantages of the IP65 protection rating and compact design?

A: The IP65 rating ensures the device is dust-tight and protected against water jets, extending its usability in tough environments. Its lightweight, compact form enhances portability, making it ideal for handheld use during fieldwork.
