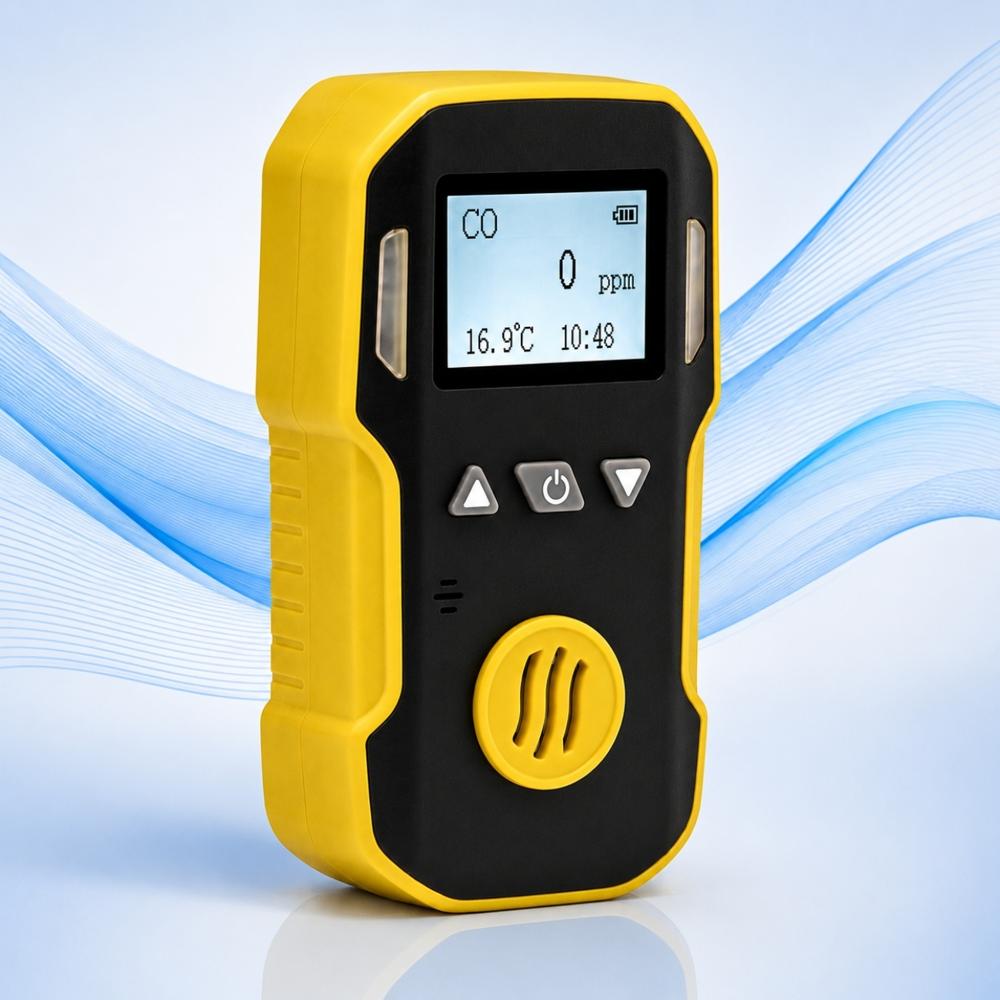

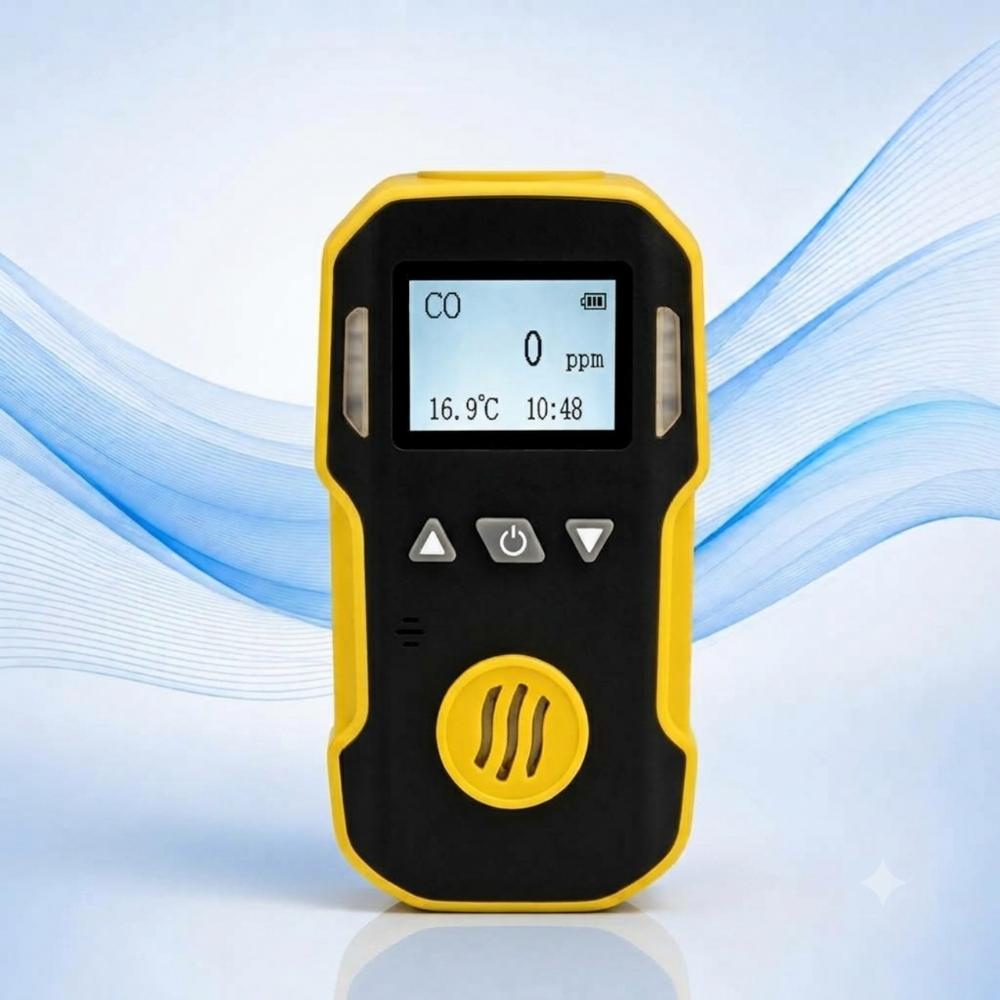

Gas Monitoring Device
Gas Monitoring Device
Gas Monitoring Device
Gas Monitoring Device
Gas Monitoring Device
Gas Monitoring Device
Gas Monitoring Device
Gas Monitoring Device

Gas Monitoring Device

Price 25000.0 INR/ Unit

MOQ : 1 Unit

Gas Monitoring Device Specification

  • Equipment Type
  • Portable Gas Monitoring Device
  • Resolution
  • 1 ppm
  • Display Type
  • LCD digital display
  • Port Size
  • Standard sensor port
  • Hardness
  • IP65 impact resistant housing
  • Power Supply
  • Rechargeable Lithium Battery
  • Automation Grade
  • Automatic with manual control
  • Interface Type
  • Physical buttons
  • Test Range
  • 0-1000 ppm (CO)
  • Features
  • High sensitivity, Audible and visual alarm, Data logging
  • Application
  • Industrial, Personal Safety, Gas Detection
  • Number of Specimens
  • Single
  • Humidity
  • 0-95% RH (non-condensing)
  • Mounting Type
  • Portable handheld
  • Temperature
  • -20C to 50C
  • Gas Pressure
  • Ambient atmospheric
  • Accuracy
  • 3% F.S.
  • Operating Voltage
  • 3.7V DC
  • Response Time
  • 30 seconds
  • Max Height
  • 130 mm (approx.)
  • Measuring Range
  • 0-1000 ppm (CO)
  • Usage
  • Continuous monitoring of CO gas
  • Capacity
  • Detection of CO gas
  • Machine Weight
  • Approx. 150g
  • Test Speed
  • Instantaneous detection
  • Test Width
  • Handheld (single gas)
  • Control Mode
  • Button operated
  • Data Logging
  • Supported (internal memory)
  • Dimensions
  • Approx. 130mm x 65mm x 35mm
  • Charging Time
  • About 3-4 hours
  • Storage Temperature
  • -30C to 60C
  • Alarm Set Point
  • Adjustable (default 50 ppm for CO)
  • Enclosure Color
  • Black/Yellow
  • Sensor Type
  • Electrochemical CO sensor
  • Operating Language
  • English
  • Alarm Type
  • Audible, visual, and vibration
  • Battery Life
  • Approx. 8-12 hours continuous use



About Gas Monitoring Device

The Handheld Single Gas Detector is a compact, portable and easy-to-use gas detection instrument designed for the reliable monitoring of a specific gas in industrial and hazardous environments. The detector continuously monitors the selected gas and provides clear visual and audible alarms when the gas concentration reaches preset levels. Suitable for detecting oxygen, toxic, combustible and other hazardous gases, it is available in different gas configurations to meet application requirements. Its lightweight handheld design makes it suitable for personal safety, routine gas monitoring, leak detection and workplace safety across industries such as oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial applications. The diffusion-type design enables convenient personal gas monitoring without requiring a sampling probe or external attachments.

Advanced CO Detection with Electrochemical Sensor

The device leverages an advanced electrochemical sensor, delivering swift and precise detection of carbon monoxide. With real-time monitoring and instantaneous response, safety is enhanced, and hazardous exposure is mitigated effectively.


Rapid Alerts: Audible, Visual, and Vibration Alarms

To ensure immediate notification of dangerous CO levels, the device utilizes three alarm modalities: loud audible sirens, bright LEDs, and strong vibrations. This multi-channel alerting system guarantees user awareness in noisy, dim, or high-stress environments.


Rugged Portability for Continuous Use

Weighing only 150g and designed with an IP65 impact-resistant housing, this monitor is built for on-the-go personal or industrial use. The long-life lithium battery, portable build, and easy button controls support full-day operations in diverse field conditions.

FAQ's of Gas Monitoring Device:


Q: How do I operate the gas monitoring device for carbon monoxide detection?

A: To operate the device, simply power it on using the physical buttons. Hold it in the air within your work environment; the electrochemical sensor will instantly detect and display real-time CO levels on the LCD screen. The alarm system will activate if CO exceeds your set threshold.

Q: What kind of alarms does this device use for CO detection?

A: The device is equipped with audible, visual, and vibration alarms. When carbon monoxide concentrations surpass the adjustable set point (default 50 ppm), the device emits a loud sound, flashes warning LEDs, and vibrates for immediate user notification.

Q: When and how should I charge the device's battery?

A: The monitor runs for approximately 8-12 hours on a single charge. Recharge the lithium battery using the provided charger for about 3-4 hours before or after usage to ensure reliable operation through your entire shift.

Q: Where can I use this gas monitoring device?

A: This portable monitor is suitable for industrial work sites, confined spaces, or personal safety in any location where CO exposure is a concern. Its rugged, IP65-rated housing allows for reliable operation in challenging and variable environments.

Q: What is the benefit of the built-in data logging feature?

A: The internal memory logs CO level readings over time, enabling you to track exposure, document incidents, and review safety trends. This data is valuable for workplace compliance and ongoing health risk assessment.

Q: How do I adjust the alarm set point according to different safety standards?

A: You can customize the CO alarm threshold to your organization's standards using the device's control buttons. Although the default is set to 50 ppm, the limit can be adjusted within the specified measuring range for optimal safety.

Q: What level of accuracy and responsiveness can I expect from this CO detector?

A: The device boasts a rapid 30-second response time, 1 ppm resolution, and an accuracy within 3% of full scale, ensuring dependable and precise monitoring of CO levels from 0 to 1000 ppm.
