Handheld Gas Monitoring Instrument with Pump
Handheld Gas Monitoring Instrument with Pump
Handheld Gas Monitoring Instrument with Pump
Handheld Gas Monitoring Instrument with Pump
Handheld Gas Monitoring Instrument with Pump
Handheld Gas Monitoring Instrument with Pump
Handheld Gas Monitoring Instrument with Pump
Handheld Gas Monitoring Instrument with Pump

Handheld Gas Monitoring Instrument with Pump

Price 41000.0 INR/ Piece

MOQ : 1 Piece

Handheld Gas Monitoring Instrument with Pump Specification

  • Temperature
  • -10C to +50C
  • Mounting Type
  • Handheld
  • Power Supply
  • Rechargeable Lithium Battery / USB Power
  • Application
  • Industrial, Laboratory, Environmental Monitoring, Confined Spaces
  • Response Time
  • <10 seconds
  • Port Size
  • Standard sampling inlet (compatible with provided probe)
  • Gas Pressure
  • Atmospheric (0.1MPa)
  • Resolution
  • 0.1% Vol
  • Interface Type
  • Push button operations
  • Display Type
  • Digital LCD Display
  • Features
  • Portable, Alarm Function, Pump Sampling, Easy Operation
  • Operating Voltage
  • 3.7V DC (battery) or USB power
  • Test Range
  • Oxygen (O2): 0-30 % Vol
  • Measuring Range
  • Oxygen 0-30% Vol
  • Automation Grade
  • Manual / Semi-Automatic
  • Accuracy
  • 2% of reading
  • Humidity
  • 0~95% RH (non-condensing)
  • Usage
  • Gas Concentration Measurement
  • Machine Weight
  • Approx. 350 grams
  • Control Mode
  • Manual
  • Alarm Type
  • Visual and audible alarm indicator
  • Sensor Type
  • Electrochemical sensor (for O2)
  • Operating Time
  • >10 hours (battery fully charged)
  • Calibration Interval
  • Recommended every 6 months
  • Model
  • ATS-101M
  • Sampling Method
  • Integrated pump with probe
  • Equipment Type
  • Handheld Gas Monitoring Instrument with Pump
  • Data Logging
  • Optional, available on request
  • Dimensions
  • 175mm x 90mm x 40mm



About Handheld Gas Monitoring Instrument with Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Intuitive Operation and Safety Features

The ATS-101M is designed for user-friendly operation with simple push-button controls and a clear digital LCD display. The device provides real-time visual and audible alarms to alert users to hazardous O2 levels, enhancing on-site safety for industrial and laboratory workers.


Accurate Sampling in Challenging Conditions

Utilizing an integrated pump and robust electrochemical sensor, the ATS-101M delivers fast and reliable oxygen measurements, even in environments with up to 95% relative humidity or temperatures ranging from -10C to +50C. Its compact, lightweight design makes it easy to use in confined or hard-to-reach places.


Flexible Power and Long Operation

This instrument supports both rechargeable battery and USB power options, allowing continuous monitoring for over 10 hours per charge. Its versatility enables use across various locations, including remote sites without a fixed power supply.

FAQ's of Handheld Gas Monitoring Instrument with Pump:


Q: How does the ATS-101M Handheld Gas Monitoring Instrument measure oxygen levels?

A: The ATS-101M utilizes an electrochemical sensor to detect and measure oxygen concentrations in sampled air. An integrated pump draws the sample through a probe, delivering accurate readings displayed on a digital LCD interface.

Q: What are the recommended calibration and maintenance intervals for this instrument?

A: It is recommended to calibrate the ATS-101M every 6 months to ensure measurement accuracy. Regular maintenance, such as cleaning the probe and checking the sensor, helps extend the instrument's lifespan.

Q: When should I use the integrated pump sampling function?

A: Use the integrated pump when sampling air from confined spaces or locations that are difficult to access. The probe and pump system ensures that representative air samples reach the sensor for accurate measurement.

Q: Where is the ATS-101M best suited for use?

A: This instrument is ideal for industrial plants, laboratories, environmental monitoring, confined spaces, and any location requiring precise oxygen detection. Its portability and rugged build make it suitable for both field and indoor environments.

Q: What is the benefit of visual and audible alarm indicators?

A: The combination of visual and audible alarms provides immediate notice in the event of hazardous oxygen concentrations, ensuring that users can quickly respond to unsafe conditions and maintain safety protocols.

Q: How do I power and recharge the ATS-101M device?

A: The ATS-101M operates using a rechargeable lithium battery, offering more than 10 hours of use per charge. It can also be powered directly via USB, allowing flexible operation in a variety of settings.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Gas Detector Category

Portable Oxygen Gas Detector Model ATS 101M

Portable Oxygen Gas Detector Model ATS 101M

Price 28500.0 INR / Unit

Minimum Order Quantity : 1 Unit

Temperature : 15 Celsius (oC)

Machine Weight : 250 Gram (g)

Resolution : 1, 0.1

Display Type : Graphic

Portable Multi Gas Detector Model ATS 103M

Portable Multi Gas Detector Model ATS 103M

Price 72500.0 INR / Unit

Minimum Order Quantity : 1 Unit

Temperature : 20 C to +50 C Celsius (oC)

Machine Weight : 450g Gram (g)

Resolution : 0.01, 0.1 or 1 PPB, 1 PPM, %V/V, % LEL as applicable

Display Type : 128 x 64 LCD Graphics Display with backlit

Portable Combustible Gas Leak Detector Model ATS 101M

Portable Combustible Gas Leak Detector Model ATS 101M

Price 32500.0 INR / Unit

Minimum Order Quantity : 1 Unit

Temperature : 10 C to +50 C Celsius (oC)

Machine Weight : 500 Gram (g)

Resolution : 1 ppm

Display Type : Large LED bar graph and digital display

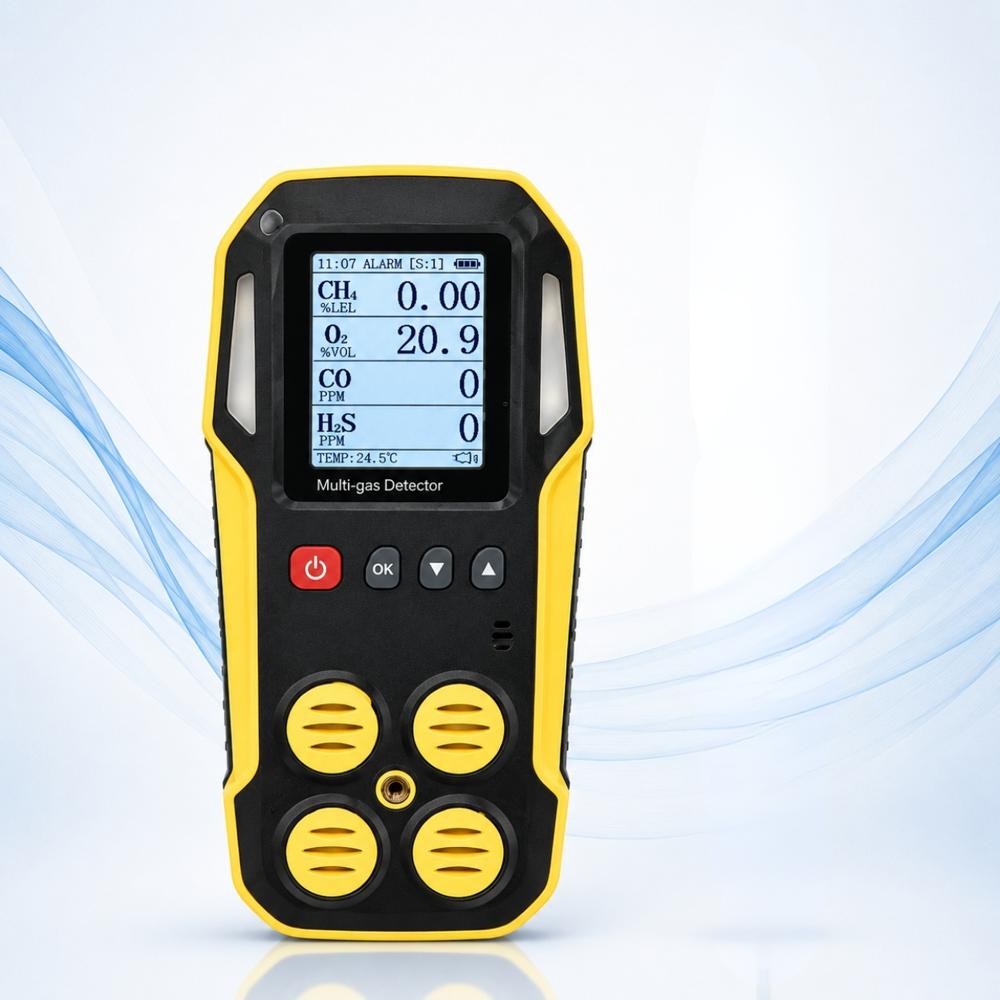

Handheld Multi Gas Detector
