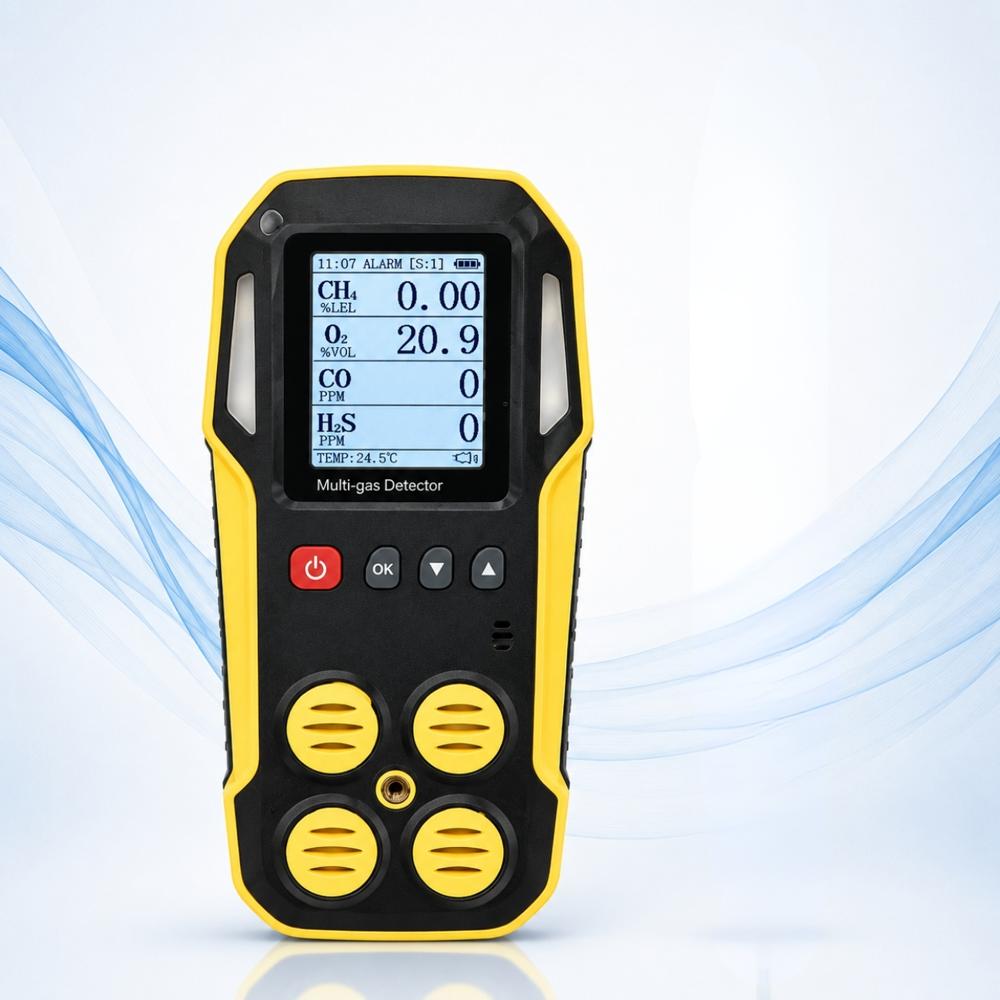

Handheld Multi Gas Detector Instrument
Handheld Multi Gas Detector Instrument
Handheld Multi Gas Detector Instrument
Handheld Multi Gas Detector Instrument
Handheld Multi Gas Detector Instrument
Handheld Multi Gas Detector Instrument

Handheld Multi Gas Detector Instrument

Price 48000.0 INR/ Piece

MOQ : 1 Piece

Handheld Multi Gas Detector Instrument Specification

  • Resolution
  • 0.01 units
  • Test Range
  • CH4: 0-100% LEL, O2: 0-30% Vol, CO: 0-1000 PPM, H2S: 0-100 PPM
  • Automation Grade
  • Manual
  • Interface Type
  • Charging Port USB & Test Gas Port
  • Port Size
  • Standard Air Inlet ( 6mm)
  • Features
  • Simultaneous detection, audible/visual alarms, portable, user-friendly, real-time display
  • Display Type
  • LCD Digital Display
  • Hardness
  • Rugged ABS/Plastic Housing
  • Mounting Type
  • Portable/Handheld
  • Power Supply
  • Rechargeable Lithium Battery
  • Gas Pressure
  • Atmospheric
  • Response Time
  • 30 seconds
  • Max Height
  • 150mm
  • Operating Voltage
  • 3.7V
  • Application
  • Industrial Safety, Environmental Monitoring, Confined Space Monitoring
  • Humidity
  • 0~95% RH (non-condensing)
  • Accuracy
  • 3% FS (varies by sensor)
  • Temperature
  • -20C to +50C
  • Measuring Range
  • CH4: 0-100% LEL, O2: 0-30% Vol, CO: 0-1000 PPM, H2S: 0-100 PPM
  • Usage
  • Gas concentration measurement, warning/alarm for hazardous environments
  • Capacity
  • Detects up to 4 gases simultaneously
  • Machine Weight
  • Approx. 350g
  • Test Speed
  • Instantaneous / Real-time
  • Control Mode
  • Manual / Button Control
  • Battery Life
  • 8-12 hours continuous operation
  • Alarm Mode
  • Audible, Visual & Vibration
  • Ingress Protection
  • IP65
  • Material
  • ABS + Polycarbonate
  • Data Logging
  • Optional, up to 1000 records
  • Equipment Type
  • Handheld Multi Gas Detector
  • Storage Temperature
  • -40C to +60C
  • Calibration
  • User calibratable
  • Sampling Method
  • Diffusion or optional pump
  • Operating Language
  • Multi-language support
  • Sensor Life
  • >2 years (typical)
  • Charging Time
  • 3-4 hours



About Handheld Multi Gas Detector Instrument

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Comprehensive Gas Monitoring

This handheld detector covers four key gases essential for workplace safety-methane (CH4), oxygen (O2), carbon monoxide (CO), and hydrogen sulfide (H2S). Its simultaneous detection capability allows real-time protection, displayed clearly on the LCD digital screen for immediate decision-making in industrial, environmental, or confined space applications.


Rugged, Portable, and User-Friendly

Made from ABS and polycarbonate for durability, this instrument is lightweight (approx. 350g), IP65-rated for dust and water resistance, and can be operated with a single hand. With intuitive manual controls, quick USB charging, and an ergonomic build, it is designed for professionals needing both resilience and comfort in the field.


Reliable and Customizable Performance

User-calibratable sensors ensure accuracy (3% FS typical), and optional data logging (up to 1000 records) streamlines compliance and record-keeping. A rechargeable lithium battery powers the device for 8-12 hours, with a fast 3-4 hour charging cycle. The device supports multiple languages and offers both diffusion and pump sampling methods to fit diverse environments.

FAQ's of Handheld Multi Gas Detector Instrument:


Q: How does the handheld multi gas detector work during field operations?

A: The device utilizes diffusion or optional pump sampling to continuously monitor ambient air for CH4, O2, CO, and H2S levels. Real-time readings appear on the LCD display, while any detection of hazardous concentrations triggers audible, visual, and vibration alarms to alert users immediately.

Q: What is the typical battery life, and how should I recharge the instrument?

A: The detector runs for 8-12 hours on a single charge, depending on usage. Recharge the lithium battery via the standard USB charging port for 3-4 hours to restore full power, ensuring readiness for extended operations.

Q: Where is this instrument most appropriately used?

A: It is ideal for industrial safety inspections, environmental monitoring, and confined space entry points like tanks and tunnels-anywhere hazardous gas leaks may occur. Its rugged construction and IP65 ingress protection ensure reliable performance in tough, dusty, or wet conditions.

Q: What is the process for user calibration and why is it important?

A: User calibration involves exposing the detector to reference gases and adjusting sensor responses through the manual interface. Regular calibration ensures high detection accuracy and compliance with safety standards, especially in environments where precise readings are critical.

Q: When should data logging be utilized, and what are its benefits?

A: Activate data logging when you need detailed records for safety audits or compliance reports. The device can store up to 1000 measurements, enabling traceability and post-inspection analysis of gas exposure or alarm events.

Q: What safety features help protect users in hazardous environments?

A: The detector features three alarm modes-audible, visual, and vibration-providing multi-sensory warnings to ensure user awareness even in noisy or visually cluttered settings. Its real-time response and robust notification system enhance field worker safety during high-risk tasks.
