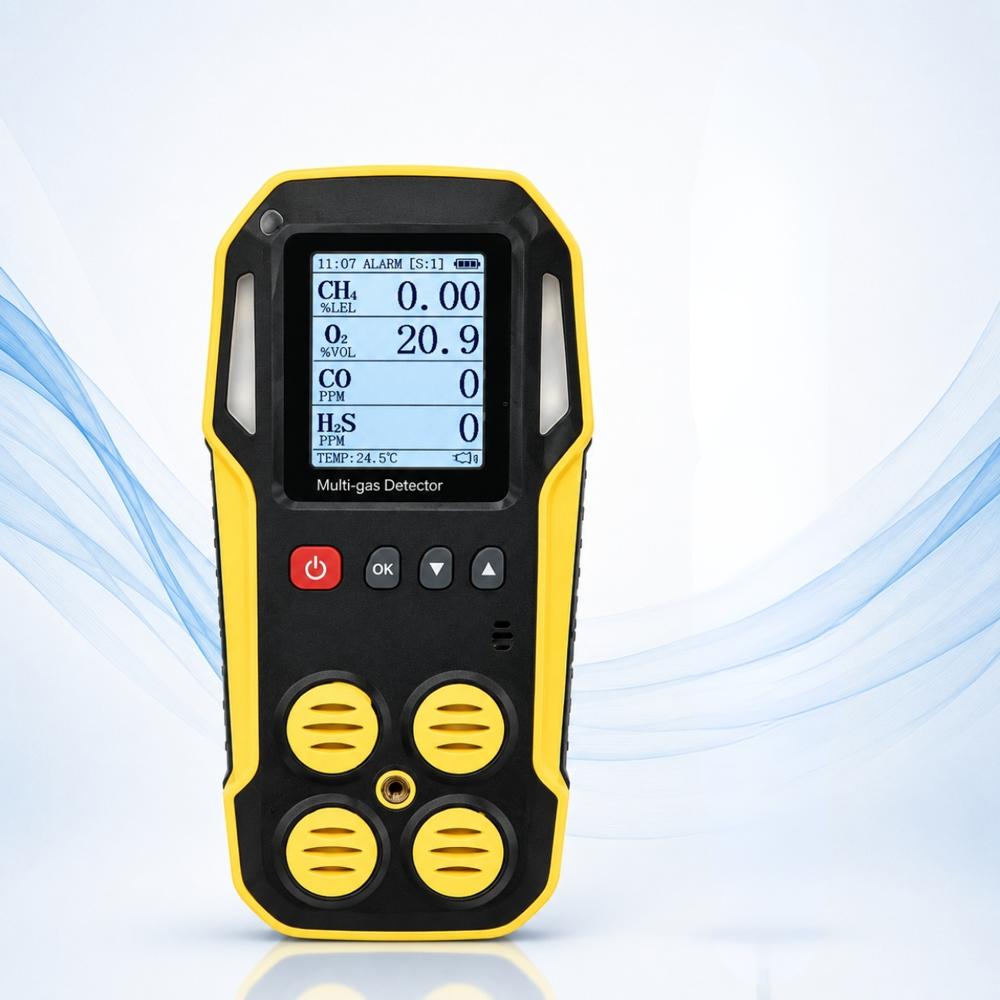

Portable Gas Safety Detector
Portable Gas Safety Detector
Portable Gas Safety Detector
Portable Gas Safety Detector
Portable Gas Safety Detector
Portable Gas Safety Detector

Portable Gas Safety Detector

Price 50000.0 INR/ Piece

MOQ : 1 Piece

Portable Gas Safety Detector Specification

  • Port Size
  • Standard Gas Inlet Port
  • Test Range
  • CH4: 0-100%LEL, O2: 0-30%VOL, CO: 0-1000PPM, H2S: 0-100PPM
  • Measuring Range
  • Multi-gas detection (CH4, O2, CO, H2S)
  • Accuracy
  • 5%
  • Humidity
  • 0%~95% RH (non-condensing)
  • Gas Pressure
  • 0~400kPa
  • Application
  • Industrial safety, confined space monitoring, environmental detection
  • Display Type
  • LCD Digital Display
  • Temperature
  • -20C to +50C
  • Mounting Type
  • Handheld
  • Automation Grade
  • Semi-automatic
  • Features
  • Alarm system (sound, light, vibration), real-time monitoring, easy calibration
  • Max Height
  • 138mm
  • Response Time
  • 30 seconds
  • Interface Type
  • Micro USB
  • Power Supply
  • Rechargeable Lithium Battery (3.7V, 1800mAh)
  • Operating Voltage
  • 3.7V
  • Resolution
  • O2: 0.1%, CO/H2S: 1PPM, CH4: 0.1%LEL
  • Usage
  • Personal and area gas monitoring
  • Machine Weight
  • 220g
  • Control Mode
  • Manual
  • Equipment Type
  • Portable Gas Safety Detector
  • Safety Compliance
  • EN 60079-29
  • Dimensions
  • 138mm x 70mm x 35mm
  • Sensor Type
  • Electrochemical and catalytic combustion
  • Protection Level
  • IP65 dust and waterproof
  • Alarm Type
  • Sound, Light, Vibration
  • Sensor Lifespan
  • 2-years typical
  • Start-Up Time
  • < 60 seconds
  • Charging Time
  • 2-3 hours
  • Battery Life
  • 10 hours continuous use
  • Calibration Method
  • Manual and automatic
  • Data Storage
  • 500 records
  • Operating Language
  • Multi-language supported
  • Alarm Thresholds
  • Adjustable



About Portable Gas Safety Detector

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Comprehensive Gas Detection with Advanced Sensors

Utilizing both electrochemical and catalytic combustion sensors, this portable detector provides precise measurement of methane, oxygen, carbon monoxide, and hydrogen sulfide. It is suitable for professionals in industrial safety, confined space entry, and environmental monitoring, ensuring accurate results even in challenging environments.


Instant, Reliable Alarm System for Safety

Equipped with sound, light, and vibration alarms, the detector instantly warns users if gas concentrations exceed preset customizable thresholds. The device's speedy 30-second response time facilitates quick decision-making and enhanced safety for individuals and work teams.


Durable, Portable Design for Harsh Conditions

The rugged design with IP65 dustproof and waterproof protection makes this gas detector ideal for use in demanding industrial settings. Its lightweight (220g) and compact dimensions (138mm x 70mm x 35mm) offer comfortable handheld operation throughout long shifts.

FAQ's of Portable Gas Safety Detector:


Q: How do I calibrate the Portable Gas Safety Detector?

A: Calibration can be performed both manually via the on-device interface and automatically if you have suitable calibration gas and adapters. Follow the on-screen prompts in your set operating language to complete the calibration process for accurate, reliable readings.

Q: What types of gases does this detector monitor and in what ranges?

A: The detector monitors methane (CH4: 0-100% LEL), oxygen (O2: 0-30% VOL), carbon monoxide (CO: 0-1000PPM), and hydrogen sulfide (H2S: 0-100PPM) for comprehensive industrial and safety coverage.

Q: When should I recharge the battery, and how long does it last?

A: The detector's lithium battery supports up to 10 hours of continuous use on a full charge. Recharge using the Micro USB interface; a full charge typically takes 2-3 hours. It is advisable to recharge after each work cycle to ensure optimal performance.

Q: Where can I safely use this gas detector?

A: This device is suitable for personal and area gas monitoring in industrial, confined space, and environmental detection scenarios. Its IP65 dust and water resistance make it reliable in rugged indoor and outdoor settings.

Q: What is the process for accessing stored data records?

A: The detector stores up to 500 historical records. You can access recorded data via the device's LCD menu, allowing convenient review and logging of event and measurement history.

Q: How does the alarm system function, and what are its benefits?

A: The alarm system combines sound, flashing light, and vibration alerts, ensuring you are immediately notified in any noisy or low-visibility conditions. With customizable thresholds, it enhances personal and team safety during operations.

Q: What operational benefits does this detector offer for work teams?

A: Real-time monitoring, fast response, and support for multiple languages simplify usage and training. Its robust build, long battery life, and reliable alarms collectively help prevent accidents and ensure compliance with safety standards like EN 60079-29.
