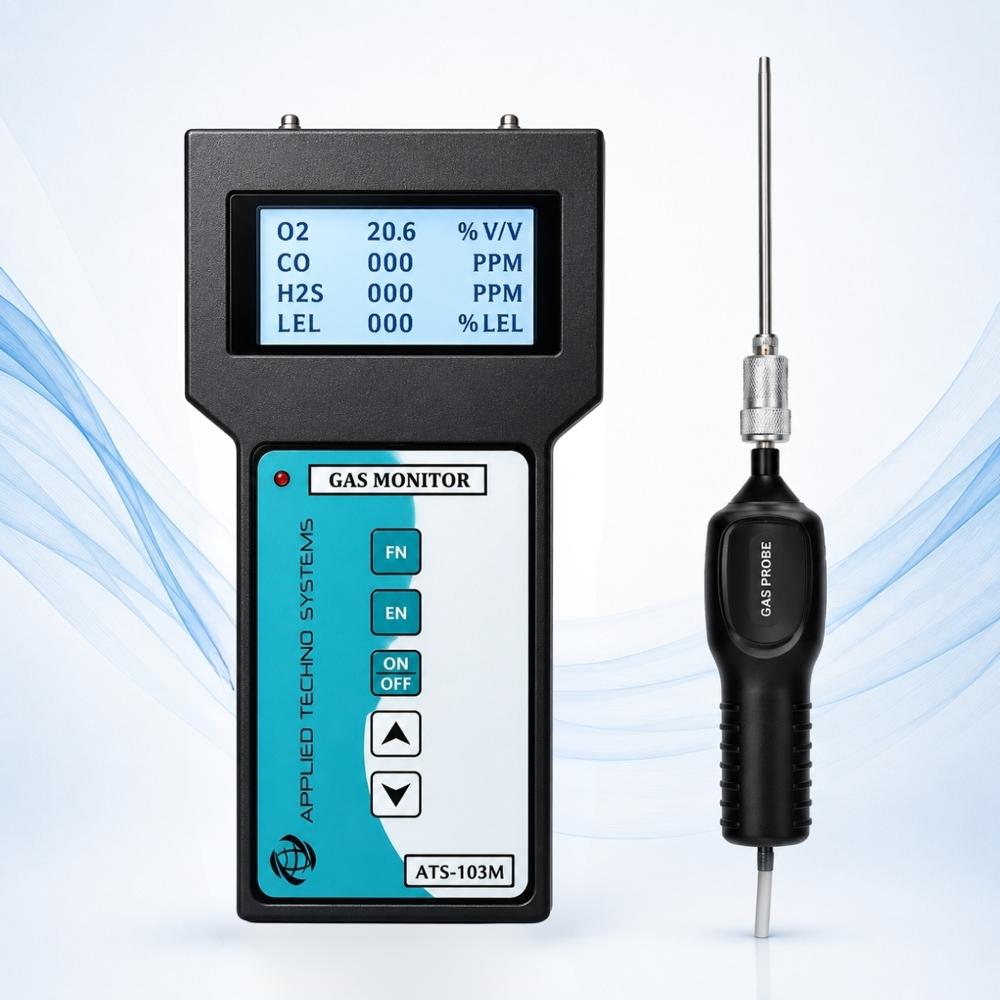

Handheld Multi Gas Monitor
Handheld Multi Gas Monitor
Handheld Multi Gas Monitor
Handheld Multi Gas Monitor
Handheld Multi Gas Monitor
Handheld Multi Gas Monitor

Handheld Multi Gas Monitor

Price 73000.0 INR/ Unit

MOQ : 1 Unit

Handheld Multi Gas Monitor Specification

  • Gas Pressure
  • Atmospheric
  • Port Size
  • Gas probe 6 mm OD (standard)
  • Power Supply
  • Rechargeable Lithium-ion battery / 220V AC adapter
  • Equipment Type
  • Multi Gas Monitor
  • Mounting Type
  • Handheld/Portable
  • Temperature
  • -10C to +55C
  • Resolution
  • O2: 0.1%, Gases: 1ppm/1%LEL
  • Application
  • Industrial safety, confined space, toxic gas monitoring
  • Test Range
  • O2: 0-25% v/v, CO: 0-999 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Features
  • Simultaneous multi-gas display, alarm, backlight, compact design
  • Interface Type
  • User interface: Tactile membrane keypad
  • Measuring Range
  • O2: 0-25% v/v, CO: 0-999 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Display Type
  • Digital LCD Display
  • Automation Grade
  • Automatic
  • Response Time
  • <30 seconds
  • Humidity
  • 0-95% RH (Non-condensing)
  • Accuracy
  • 2% of full scale
  • Operating Voltage
  • 3.7V rechargeable battery
  • Usage
  • Detection of O2, CO, H2S, and combustible gases
  • Capacity
  • Handheld, portable detector
  • Machine Weight
  • Approx. 450 g (including battery)
  • Control Mode
  • Microprocessor based
  • Enclosure Material
  • ABS Plastic
  • Alarm Type
  • Buzzer, flashing LED, and vibration
  • Calibration
  • User calibratable, with auto calibration feature
  • Sensor Type
  • Electrochemical and catalytic bead sensors
  • Operating Time
  • Up to 10 hours continuous operation
  • Charging Time
  • Approximately 4 hours
  • Display Language
  • English
  • Alarm Setting
  • Adjustable for each gas
  • Sampling Method
  • Diffusion/Optional external pump
  • Data Logging
  • Optional, up to 1000 records
  • Protection Class
  • IP54 (dust and splash resistant)



About Handheld Multi Gas Monitor

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Comprehensive Multi-Gas Detection

This handheld monitor simultaneously measures O2, CO, H2S, and combustible gas levels, making it vital for industrial safety and toxic gas monitoring. Its electrochemical and catalytic bead sensors provide accurate readings with rapid response times, ensuring personnel are alerted quickly to hazardous conditions.


User-Friendly Operation and Flexible Alarms

Featuring a digital LCD display, tactile membrane keypad, and intuitive user interface, this device simplifies gas detection. Adjustable alarm settings for each gas allow precise safety thresholds, and the combination of buzzer, LED, and vibration ensures critical alerts are promptly noticed.


Built for Demanding Environments

Manufactured with durable ABS plastic and rated IP54, this monitor resists dust and splashes. It has an operating range from -10C to +55C and is suitable for humid conditions up to 95% RH, making it ideal for various industrial settings, confined spaces, or field operations.

FAQ's of Handheld Multi Gas Monitor:


Q: How does the Handheld Multi Gas Monitor detect multiple gases simultaneously?

A: It employs a combination of electrochemical sensors and catalytic bead sensors to accurately monitor oxygen, carbon monoxide, hydrogen sulfide, and combustible gases concurrently. Each gas is measured independently, with data displayed on the digital LCD.

Q: What alarm features are available, and can their settings be customized?

A: The device provides three alarm types: a buzzer, flashing LED, and vibration. Alarm thresholds for each gas are individually adjustable, allowing users to set custom limits according to environmental requirements.

Q: When should the gas monitor be recalibrated, and how is calibration performed?

A: Calibration intervals depend on usage and environmental exposure but typically, recalibration is recommended every 3-6 months or after sensor exposure to high gas concentrations. The device supports user calibration, including an auto calibration feature for convenient routine maintenance.

Q: Where is it suitable to use this multi gas monitor?

A: It is ideal for use in industrial safety applications, confined spaces, toxic gas monitoring, and environments where atmospheric hazards due to O2, CO, H2S, or combustible gases might occur. Its IP54 protection makes it suitable for challenging field or plant environments.

Q: What is the process for data logging and retrieval from the device?

A: Data logging is an optional feature and allows storage of up to 1000 measurement records. Data can typically be retrieved via a dedicated interface or by connecting to a compatible management system, depending on the model specifications.

Q: How long does the monitor operate and what is the charging process?

A: The built-in rechargeable lithium-ion battery provides up to 10 hours of continuous operation. Recharging is achieved via a 220V AC adapter, requiring approximately 4 hours to reach full capacity.

Q: What benefits does the compact and portable design offer?

A: Weighing approximately 450 grams and featuring a handheld, ergonomically designed enclosure, the monitor is easy to carry and operate. This portability ensures it can be used comfortably during routine inspections or in emergency situations.
