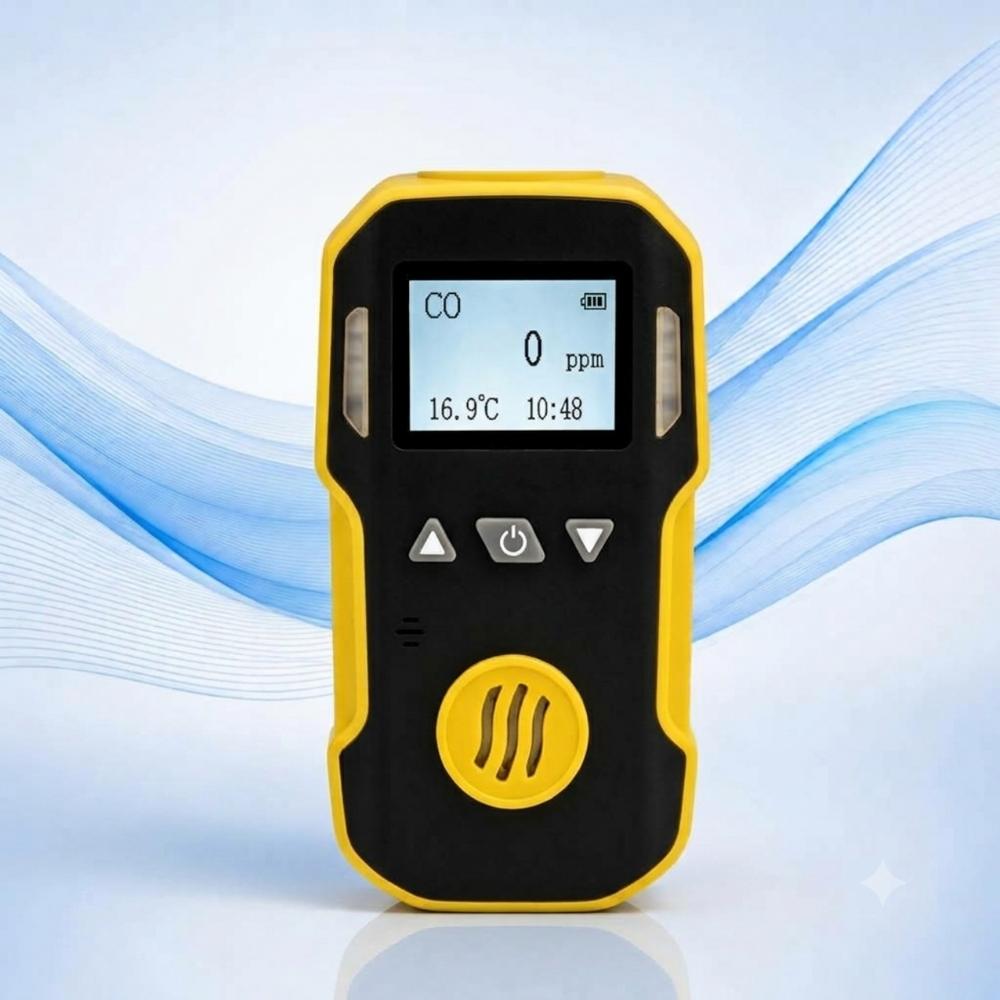

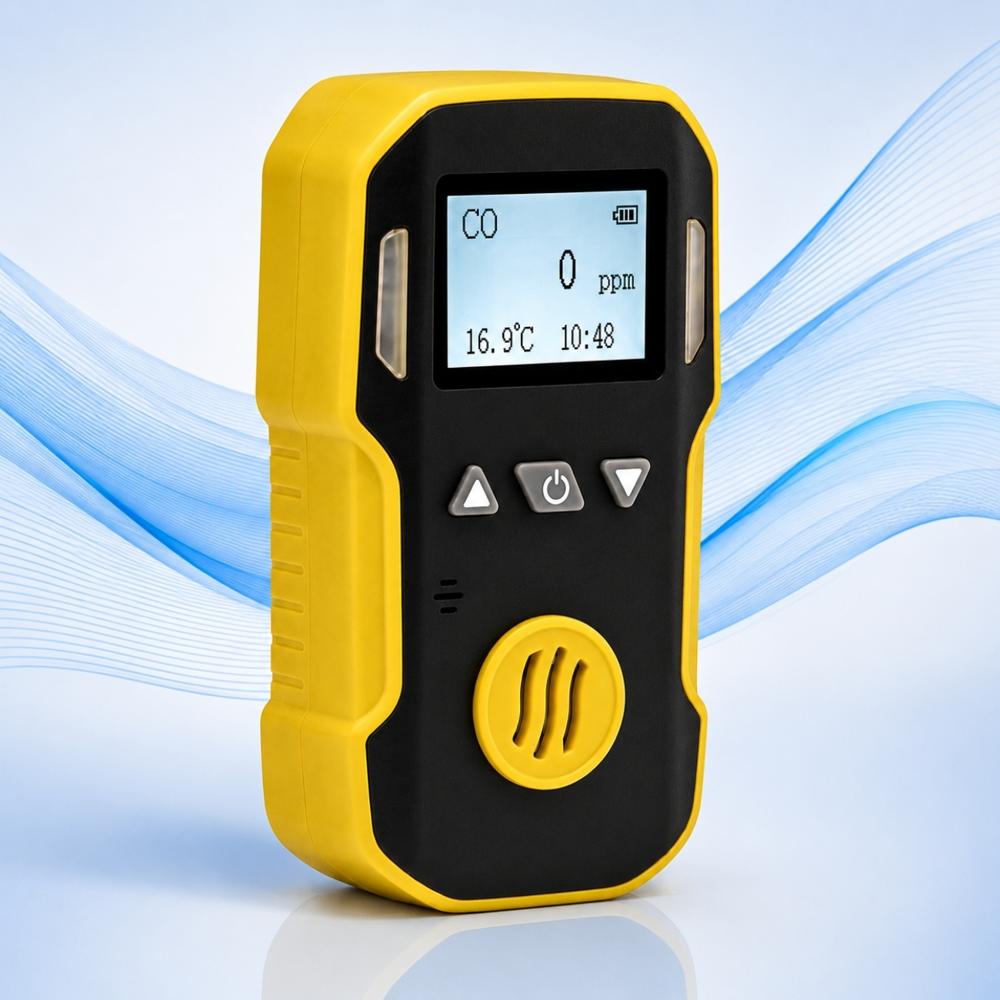

Handheld Single Gas Detector

Name: Handheld Single Gas Detector
Brand: APPLIED TECHNO ENGINEERS PRIVATE LIMITED
Price: 48000.0 INR
Availability: InStock

Price 48000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Handheld Single Gas Detector Specification

Mounting Type
Handheld/Portable

Test Range
0-1000 ppm (CO, configurable for other gasses)

Operating Voltage
3.7V (rechargeable battery)

Application
Industrial, safety, confined space, environmental monitoring

Temperature
-20C to +50C

Gas Pressure
Ambient Pressure

Power Supply
Rechargeable Lithium Battery

Response Time
10 seconds

Measuring Range
0-1000 ppm (CO, other ranges optional)

Accuracy
5% F.S.

Display Type
Digital LCD Display

Equipment Type
Handheld Single Gas Detector

Interface Type
Physical Buttons

Humidity
0-95% RH (non-condensing)

Resolution
1 ppm

Features
Temperature display, real-time detection, large screen, audible/visual alarms, backlight

Automation Grade
Automatic measurement

Number of Specimens
Single Gas

Usage
CO Gas Detection (single gas, options for O2, H2S, EX, SO2, etc.)

Machine Weight
Approx. 130g

Control Mode
Push Button

Alarm Method
Audible, Visual, Vibration

Battery Life
Up to 2 years standby or 120 hours continuous working (approximate, model dependent)

Calibration
Manual and automatic calibration supported

Data Logging
No (basic; advanced models may offer it)

Dimensions
Approx. 106mm x 60mm x 30mm

IP Rating
IP65

Sensor Type
Electrochemical (for toxic gases), catalytic combustion sensor (for combustible gases)

Handheld Single Gas Detector Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Week

Delivery Time
5-7 Days

About Handheld Single Gas Detector

The Handheld Single Gas Detector is a compact, portable and easy-to-use gas detection instrument designed for the reliable monitoring of a specific gas in industrial and hazardous environments. The detector continuously monitors the selected gas and provides clear visual and audible alarms when the gas concentration reaches preset levels. Suitable for detecting oxygen, toxic, combustible and other hazardous gases, it is available in different gas configurations to meet application requirements. Its lightweight handheld design makes it suitable for personal safety, routine gas monitoring, leak detection and workplace safety across industries such as oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial applications. The diffusion-type design enables convenient personal gas monitoring without requiring a sampling probe or external attachments.

Intuitive, Reliable Gas Detection

This detector combines advanced sensing technology with practical features-such as a large LCD display, real-time measurements, and multiple alarm methods-to ensure rapid awareness of dangerous gas levels. Its simple push-button controls and ergonomic handheld design make it ideal for use on the move or in confined spaces, meeting the needs of industrial professionals.

Engineered for Harsh Conditions

With an IP65 rating and wide environmental tolerances-from -20C to +50C and 0-95% humidity-the device is built to withstand tough workplaces. Its lightweight construction (130g) and ergonomic shape mean comfort and ease during extended shifts, while the rechargeable battery supports long standby and continuous operation times.

Flexible and Accurate Measurement

Supporting both manual and automatic calibration, this detector offers precise readings for a range of gases, with particular suitability for carbon monoxide (CO) or other single-gas applications. Its 5% full-scale accuracy, 1ppm resolution, and a configurable measuring range ensure reliable detection and enhanced safety compliance.

FAQ's of Handheld Single Gas Detector:

Q: How does the Handheld Single Gas Detector alert users to dangerous gas levels?

A: The detector uses a combination of audible, visual, and vibration alarms to quickly notify users when gas concentrations reach preset thresholds, helping to ensure timely protective action in hazardous environments.

Q: What types of gases can the device monitor, and how is the sensor type determined?

A: This detector is designed for single-gas detection and can be configured for gases like CO, O2, H2S, EX, or SO2. It utilizes an electrochemical sensor for toxic gases and a catalytic combustion sensor for combustible gases, selected based on the gas of interest.

Q: When should calibration be performed on the detector, and what options are available?

A: Calibration should be performed regularly, or as specified in your operational safety procedures, to maintain measurement accuracy. The device supports both manual and automatic calibration methods for user convenience and reliability.

Q: Where can the detector be effectively used?

A: Thanks to its IP65 rating and robust build, the detector is suitable for use in industrial sites, confined spaces, manufacturing plants, and environments where portable gas detection is critical for safety or compliance.

Q: What is the process for using the detector for gas detection?

A: Simply power on the device using the physical push button, and it will automatically monitor ambient gas levels. The large digital LCD clearly shows readings, and built-in alarms activate if hazardous concentrations are detected.

Q: What are the benefits of using this model's rechargeable battery?

A: The rechargeable lithium battery provides up to 2 years standby or approximately 120 hours of continuous use (model dependent), reducing downtime and maintenance costs while ensuring that reliable gas detection is always available.
