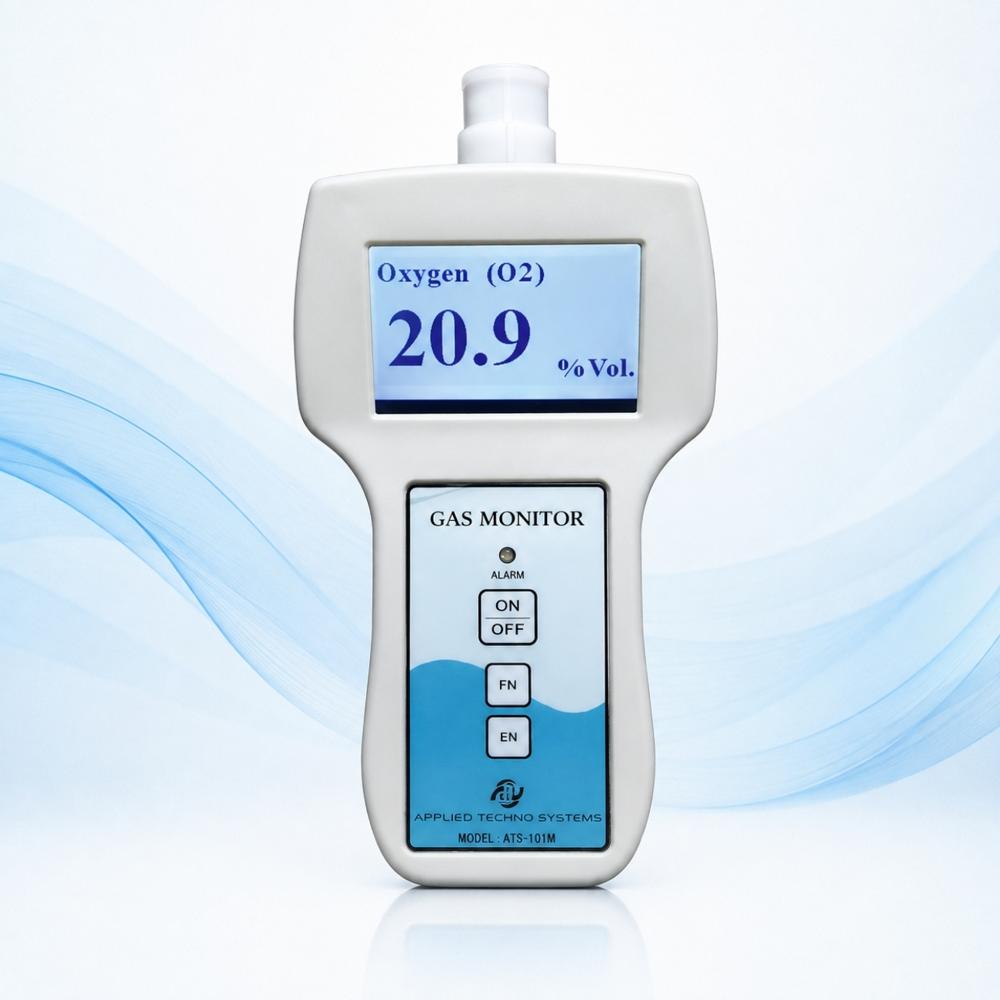

Handheld Single Gas Detector With Pump
Handheld Single Gas Detector With Pump
Handheld Single Gas Detector With Pump
Handheld Single Gas Detector With Pump
Handheld Single Gas Detector With Pump
Handheld Single Gas Detector With Pump
Handheld Single Gas Detector With Pump
Handheld Single Gas Detector With Pump

Handheld Single Gas Detector With Pump

Price 41000.0 INR/ Piece

MOQ : 1 Piece

Handheld Single Gas Detector With Pump Specification

  • Display Type
  • Digital LCD Display
  • Hardness
  • Plastic IP rated enclosure
  • Test Range
  • O2: 0-30% Vol
  • Operating Voltage
  • 3.7V Li-ion battery
  • Mounting Type
  • Handheld
  • Accuracy
  • 0.3% Vol (O2)
  • Humidity
  • 0-95% RH (non-condensing)
  • Measuring Range
  • Oxygen 0-30% Vol
  • Resolution
  • 0.1% Vol
  • Features
  • Portable, Rechargeable, Fast Response, Digital Display, Audible Alarm
  • Power Supply
  • Rechargeable Battery / USB Powered
  • Specimen Size
  • Handheld / Pocket size
  • Interface Type
  • Push Button
  • Number of Specimens
  • Single Gas Detection
  • Temperature
  • -10C to +50C operating range
  • Port Size
  • Standard gas inlet (with pump)
  • Response Time
  • <15 Seconds (typical)
  • Application
  • Personal safety monitoring, confined space gas detection
  • Gas Pressure
  • Atmospheric
  • Equipment Type
  • Handheld Single Gas Detector With Pump
  • Max Height
  • Approx. 170 mm
  • Automation Grade
  • Manual
  • Usage
  • Continuous monitoring of targeted gas
  • Capacity
  • Measures one gas (O2 in image)
  • Machine Weight
  • Approx. 350 g
  • Control Mode
  • Manual (Push-Button)
  • Model
  • ATS-101M
  • Enclosure
  • ABS Plastic, Ergonomic Design
  • Data Logging
  • Optional
  • Sensor Type
  • Electrochemical (for O2)
  • Calibration
  • User-Calibration Supported
  • Alarm Type
  • Audible & Visual
  • Indication
  • Real-time Gas Concentration, Alarm Status



About Handheld Single Gas Detector With Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Key Features & Ergonomic Design

The ATS-101M gas detector combines state-of-the-art sensor technology with user-friendly design. With a rugged ABS plastic enclosure and lightweight body, it fits easily into a pocket or can be operated with one hand. The ergonomic layout ensures comfort and ease, making it suitable for extended field use.


Real-Time & Accurate Monitoring

Boasting a fast-responding electrochemical sensor, the ATS-101M delivers highly accurate oxygen detection (0.3% Vol) with a broad test range of 0-30% Vol. The digital LCD screen displays real-time gas concentration and alarm status, ensuring users remain fully informed during operation.


Flexible Power & Calibration Options

Equipped with a rechargeable Li-ion battery and USB charging, this detector supports continuous operation for personal safety. User-calibration functionality allows the device to maintain accuracy and reliability, even in demanding environments, with optional data logging available for compliance and record-keeping.

FAQ's of Handheld Single Gas Detector With Pump:


Q: How do I calibrate the ATS-101M Handheld Single Gas Detector?

A: The ATS-101M supports user calibration, allowing you to adjust the sensor for accurate oxygen readings. Calibration is performed using the push-button interface following the manufacturer's step-by-step instructions provided in the user manual.

Q: What is the suitable environment and temperature range for operating this detector?

A: This gas detector is designed for use in environments with temperatures ranging from -10C to +50C, and can withstand humidity levels up to 95% (non-condensing), ensuring performance in various challenging conditions.

Q: When should I use the built-in alarms on the ATS-101M?

A: The audible and visual alarms are triggered automatically whenever real-time oxygen levels fall outside of safe thresholds. These alarms ensure immediate awareness, enabling you to take swift safety precautions in hazardous environments.

Q: Where can the ATS-101M be effectively used?

A: It is ideal for confined spaces, industrial facilities, emergency sites, and anywhere personal or workplace safety monitoring of oxygen is required. Its portable design makes it convenient for on-the-go use and regular safety inspections.

Q: What is the process for recharging the ATS-101M device?

A: Recharging is simple-just connect the device to a USB power source using the provided cable. The rechargeable 3.7V Li-ion battery supports long-term operation between charges, ensuring the device is ready when needed.

Q: How accurate is the oxygen measurement with this detector?

A: The ATS-101M provides high-precision oxygen detection with a typical accuracy of 0.3% Vol and a resolution of 0.1% Vol, suitable for critical personal safety applications.

Q: What are the benefits of using a handheld detector with a pump like the ATS-101M?

A: The built-in pump allows for rapid sampling of air from targeted locations, enabling faster response and more reliable detection results compared to diffusion-only devices. This maximizes operator safety in potentially hazardous areas.
