Price 25000.0 INR/ Piece

MOQ : 1 Piece

Industrial Gas Detector Specification

  • Mounting Type
  • Handheld/Portable
  • Number of Specimens
  • Single
  • Operating Voltage
  • 3.7V
  • Equipment Type
  • Handheld Digital Industrial Gas Detector
  • Interface Type
  • Micro USB Charging
  • Accuracy
  • 3% FS
  • Humidity
  • 0-95% RH (non-condensing)
  • Response Time
  • 30 seconds
  • Temperature
  • -20C to 50C
  • Test Range
  • 0-1000 ppm (for CO)
  • Resolution
  • 1 ppm
  • Power Supply
  • Rechargeable Lithium Battery
  • Gas Pressure
  • Atmospheric
  • Automation Grade
  • Automatic
  • Measuring Range
  • 0-1000 ppm (CO)
  • Display Type
  • LCD Digital Display
  • Features
  • Portable, Audible & Visual Alarm, Backlit Display
  • Application
  • Industrial Safety, Gas Leakage Detection
  • Usage
  • Toxic Gas Detection in Industrial Environments
  • Machine Weight
  • Approx. 200g
  • Control Mode
  • Button Control
  • Housing Material
  • ABS/Polycarbonate
  • Ingress Protection
  • IP65
  • Supported Gases
  • CO (other models for H2S, O2, LEL optional)
  • Alarm Mode
  • Sound, Light, and Vibration
  • Data Logging
  • No
  • Sensor Type
  • Electrochemical Sensor (CO)
  • Dimensions
  • 130 x 60 x 45 mm
  • Storage Temperature
  • -30C to 60C
  • Calibration Interval
  • Recommended every 6 months
  • Battery Life
  • Up to 100 hours continuous operation

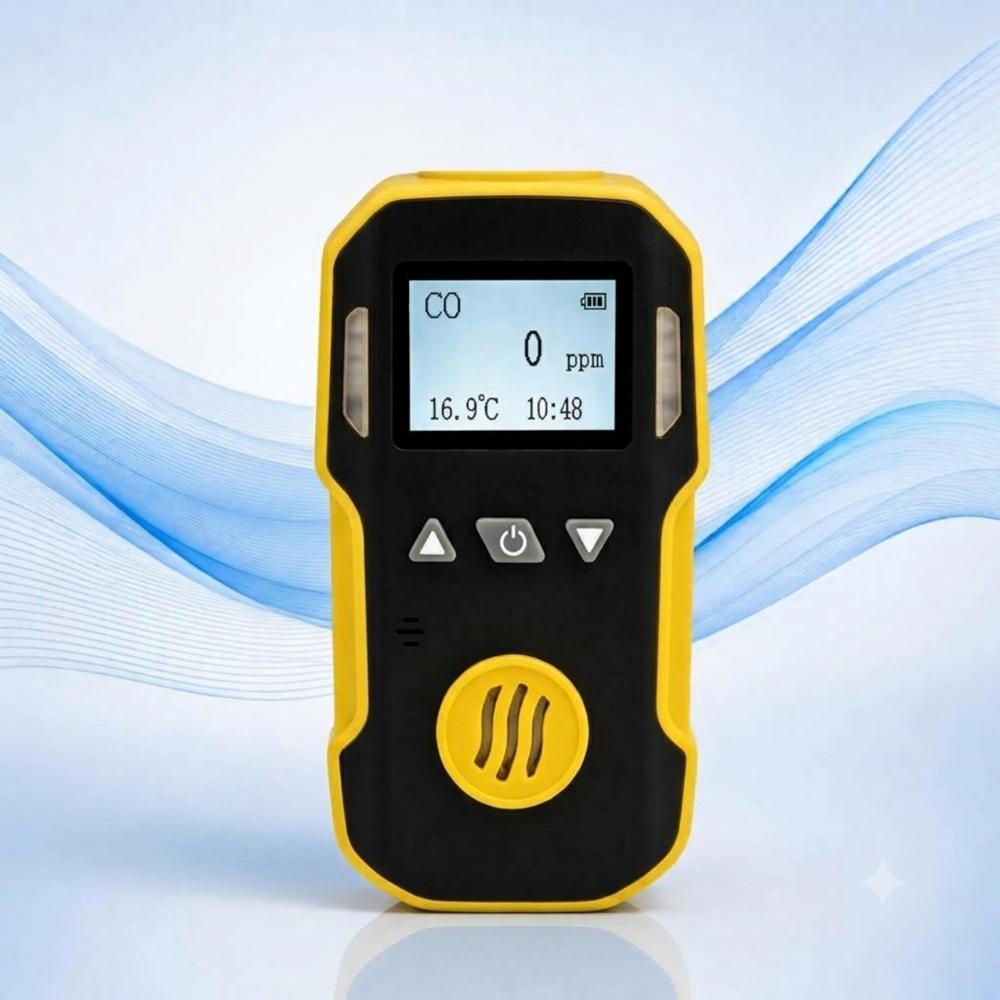

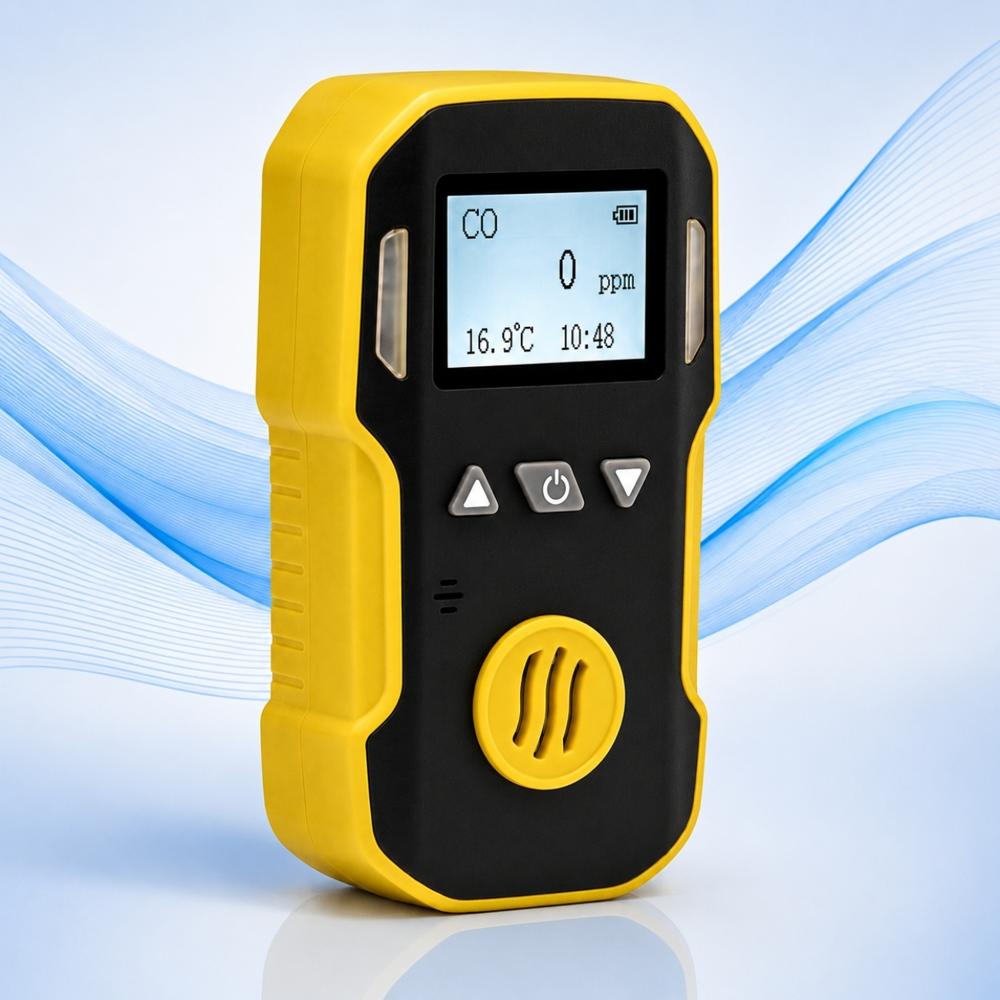

About Industrial Gas Detector

The Handheld Single Gas Detector is a compact, portable and easy-to-use gas detection instrument designed for the reliable monitoring of a specific gas in industrial and hazardous environments. The detector continuously monitors the selected gas and provides clear visual and audible alarms when the gas concentration reaches preset levels. Suitable for detecting oxygen, toxic, combustible and other hazardous gases, it is available in different gas configurations to meet application requirements. Its lightweight handheld design makes it suitable for personal safety, routine gas monitoring, leak detection and workplace safety across industries such as oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial applications. The diffusion-type design enables convenient personal gas monitoring without requiring a sampling probe or external attachments.

Comprehensive Alarm System

The gas detector immediately alerts users through sound, light, and vibration when dangerous CO levels are detected. This multi-alarm mode ensures that even in noisy industrial environments or restricted visibility, potential hazards are promptly recognized, maximizing safety for operators.


Reliable Electrochemical Sensor Technology

Utilizing an electrochemical sensor, this detector achieves high sensitivity and rapid response times, with readings accurate to within 3% of full scale. Its sensor offers robust performance for toxic gas detection, providing real-time monitoring to help prevent accidents related to gas exposure.


Portable and Durable Design

Engineered for handheld operation, the device's ABS/polycarbonate shell offers excellent durability while maintaining a lightweight profile. IP65 protection guards against dust and water ingress, ensuring dependable performance across challenging industrial environments.


Efficient Power and Operation

A built-in rechargeable lithium battery powers the detector for up to 100 hours on a single charge. Button control and a backlit LCD digital display simplify usage, making it user-friendly for routine safety checks. Micro USB charging adds convenience for fast power replenishment.

FAQ's of Industrial Gas Detector:


Q: How does the industrial gas detector alert users to the presence of carbon monoxide?

A: The detector uses three alarm modes-sound, light, and vibration-to notify users immediately when CO levels reach dangerous thresholds. This ensures alerts are noticed even in high-noise or low-visibility conditions.

Q: What is the recommended calibration process for the electrochemical sensor in this device?

A: Calibration is recommended every six months using standard calibration gases, following the manufacturer's guidelines. This maintains accuracy and optimizes performance for industrial safety applications.

Q: Where can the handheld gas detector be effectively used in industrial settings?

A: It is suitable for areas where toxic gas exposure risk exists, such as manufacturing plants, refineries, and confined spaces. Its portable and rugged design allows use in various locations for reliable gas leakage detection.

Q: What is the test range and accuracy for carbon monoxide detection?

A: The device measures CO concentrations from 0 to 1,000 ppm with a resolution of 1 ppm and an accuracy of 3% full scale, providing precise monitoring for industrial safety.

Q: How long can the gas detector operate continuously, and how is it recharged?

A: The detector operates continuously for up to 100 hours on a single charge. It is conveniently recharged via a micro USB interface, making it easy to maintain power supply during extended use.

Q: What benefits does the IP65 rating provide for this gas detector?

A: IP65 ingress protection ensures the detector is resistant to dust and water jets, making it robust and dependable for use in harsh or exposed industrial environments.
