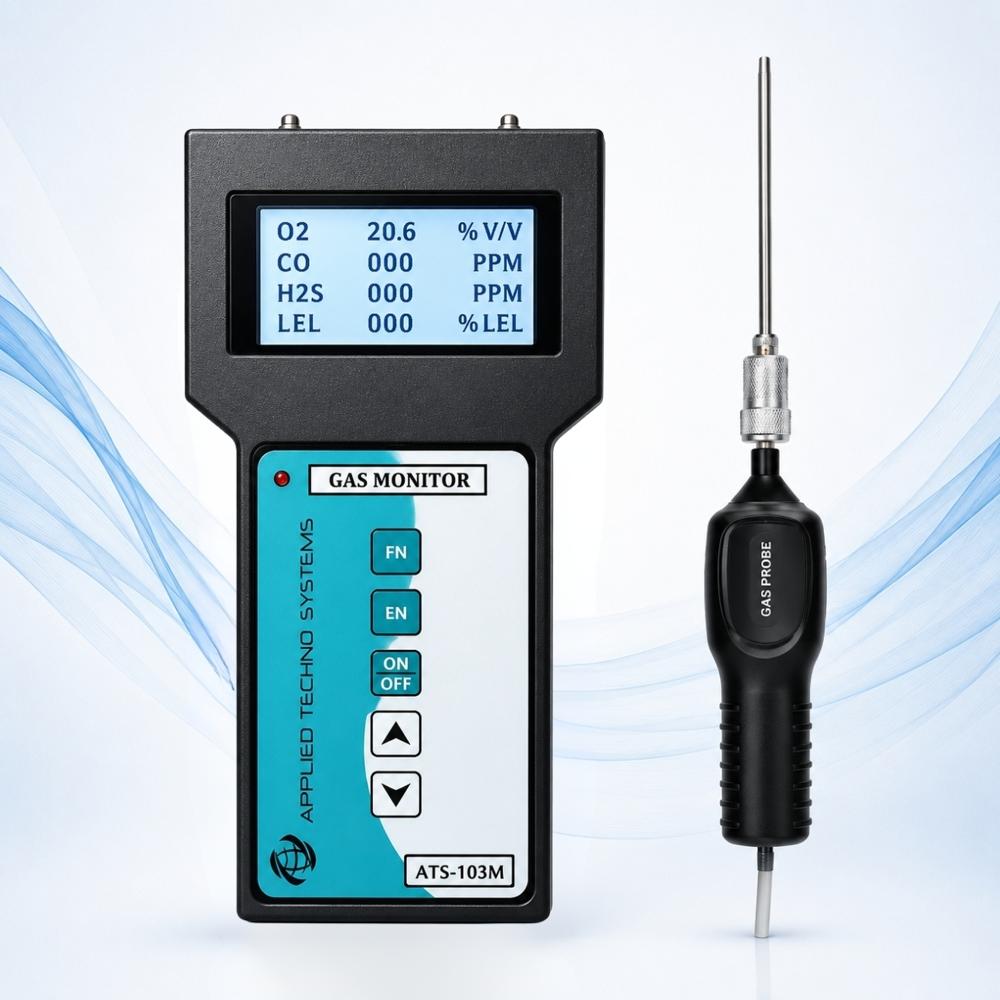

Multi Gas Detection Instrument With Pump
Multi Gas Detection Instrument With Pump
Multi Gas Detection Instrument With Pump
Multi Gas Detection Instrument With Pump
Multi Gas Detection Instrument With Pump
Multi Gas Detection Instrument With Pump

Multi Gas Detection Instrument With Pump

Price 77000.0 INR/ Piece

MOQ : 1 Piece

Multi Gas Detection Instrument With Pump Specification

  • Operating Voltage
  • 3.7V rechargeable battery
  • Test Range
  • O2: 0-30% Vol, CO: 0-1000 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Application
  • Industrial safety, confined space monitoring, gas leak detection
  • Resolution
  • O2: 0.1%, CO: 1 ppm, H2S: 1 ppm, LEL: 1% LEL
  • Interface Type
  • Push Button Control
  • Humidity
  • 0-95% RH (non-condensing)
  • Response Time
  • <30 seconds
  • Mounting Type
  • Handheld / Portable
  • Accuracy
  • 2% Full Scale
  • Temperature
  • -10C to +55C
  • Gas Pressure
  • Atmospheric
  • Equipment Type
  • Multi Gas Detection Instrument With Pump
  • Features
  • Handheld, integrated sampling pump, large LCD, audible & visual alarms, quick sensor replacement
  • Power Supply
  • Rechargeable Lithium-ion battery / DC adapter
  • Automation Grade
  • Automatic calibration, manual operation
  • Number of Specimens
  • Simultaneous multi-gas detection
  • Display Type
  • Digital LCD
  • Measuring Range
  • O2: 0-30%, CO: 0-1000 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Port Size
  • 6 mm probe inlet
  • Usage
  • Portable gas measurement & monitoring
  • Capacity
  • Multi-sensor capability
  • Machine Weight
  • 450 g (approx)
  • Control Mode
  • Microcontroller-based
  • Alarm Types
  • Audible, Visual, and Vibration
  • Enclosure Material
  • High-impact ABS Plastic
  • Charging Time
  • 2-3 hours
  • Carry Case
  • Supplied with durable protective case
  • Data Logging
  • Selectable logging interval, internal memory
  • Sensor Type
  • Electrochemical and catalytic sensors
  • Compliance
  • CE certified
  • Calibration
  • Manual or auto, factory calibrated
  • Dimensions
  • 200 mm x 85 mm x 40 mm (approx)
  • Protection Class
  • IP54
  • Battery Life
  • Up to 10 hours continuous operation



About Multi Gas Detection Instrument With Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Simultaneous Multi-Gas Detection

Monitor up to four gases including O2, CO, H2S, and LEL with advanced electrochemical and catalytic sensors. The instrument's multi-sensor capability allows for precise, real-time measurement in challenging work environments, giving users confidence and safety during operations.


Durable and Portable Design

Engineered with a high-impact ABS plastic enclosure and an IP54 protection class, the device is robust and suitable for rugged conditions. Its handheld, lightweight form (approx. 450g) and included protective carry case enhance ease of transport and use across industrial sites.


Intelligent Alarm and Data Management

Audible, visual, and vibration alarms ensure immediate notification of gas hazards. Built-in data logging with selectable intervals and internal memory mean measurements are recorded efficiently, supporting report generation and compliance. The push button controls and large LCD make operation user-friendly.

FAQ's of Multi Gas Detection Instrument With Pump:


Q: How does the Multi Gas Detection Instrument With Pump alert users to gas hazards?

A: The instrument uses three types of alarms-audible, visual, and vibration-to promptly notify users whenever hazardous gas levels are detected, ensuring immediate awareness in noisy or low-visibility environments.

Q: What gases can this detection instrument measure simultaneously?

A: This device is capable of detecting oxygen (O2) in the range of 0-30%, carbon monoxide (CO) up to 1000 ppm, hydrogen sulfide (H2S) up to 100 ppm, and combustible gases (LEL) from 0-100% LEL, all at once.

Q: When should calibration be performed on the instrument?

A: Calibration may be carried out manually or automatically, based on operational requirements. Users can also rely on factory calibration for initial setup, ensuring measurement accuracy before deployment in the field.

Q: Where is the best place to use this multi gas detector?

A: The device is ideal for industrial safety applications, especially in confined space monitoring, gas leak detection, and environments where export, import, manufacturing, or service provision requires constant multi-gas measurement.

Q: What is the process for replacing sensors or batteries in this equipment?

A: Users can replace sensors quickly and efficiently thanks to the instrument's design for easy access. Battery charging requires 2-3 hours using the supplied lithium-ion battery or DC adapter, ensuring minimal downtime.

Q: How is data logging managed with the internal memory and selectable intervals?

A: Data logging is customizable via selectable intervals, enabling users to record gas measurements at preferred frequencies. The internal memory stores these logs for later review, reporting, and compliance.

Q: What are the main benefits of using this handheld, microcontroller-based instrument?

A: Key benefits include real-time, precise measurements from multiple sensors, long battery life of up to 10 hours, a large LCD for easy reading, robust IP54 protection, and quick response times under 30 seconds, all contributing to enhanced industrial safety.
