Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector
Portable Multi Gas Detector

Portable Multi Gas Detector

Price 45000.0 INR/ Piece

MOQ : 1 Piece

Portable Multi Gas Detector Specification

  • Humidity
  • 0 - 95% RH (non-condensing)
  • Measuring Range
  • CH4: 0-100%LEL, O2: 0-30%Vol, CO: 0-1000ppm, H2S: 0-100ppm
  • Gas Pressure
  • Atmospheric
  • Features
  • Portable, Lightweight, Simultaneous Detection, Audible/Visual Alarms, High Visibility
  • Accuracy
  • 2%FS (depends on gas type)
  • Test Range
  • CH4: 0-100%LEL, O2: 0-30%Vol, CO: 0-1000ppm, H2S: 0-100ppm
  • Display Type
  • LCD Digital Display
  • Power Supply
  • Rechargeable Li-ion Battery (3.7V)
  • Port Size
  • Standard Sensor Ports
  • Equipment Type
  • Portable Multi Gas Detector
  • Interface Type
  • Physical Buttons
  • Resolution
  • CH4: 1%LEL, O2: 0.1%Vol, CO: 1ppm, H2S: 1ppm
  • Application
  • Industrial Safety, Environmental Monitoring, Confined Space Entry, Toxic Gas Detection
  • Automation Grade
  • Manual
  • Operating Voltage
  • 3.7V (internal battery)
  • Temperature
  • -20C to 50C
  • Response Time
  • 30 seconds
  • Mounting Type
  • Handheld
  • Usage
  • Portable Gas Detection
  • Capacity
  • Up to 4 Gases Simultaneously
  • Machine Weight
  • 250g
  • Control Mode
  • Manual
  • Data Storage
  • Optional, event and calibration records
  • Operating Mode
  • Continuous Sampling
  • Battery Life
  • Up to 8 hours continuous operation
  • Ingress Protection
  • IP65 waterproof and dustproof rating
  • Charging Method
  • USB Charging
  • Alarm Modes
  • Audible, Visual, Vibration
  • Calibration
  • User-calibratable
  • Dimensions
  • Approx. 135mm x 70mm x 40mm
  • Detection Gases
  • Methane (CH4), Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S)
  • Sensor Type
  • Electrochemical, Catalytic Combustion



About Portable Multi Gas Detector

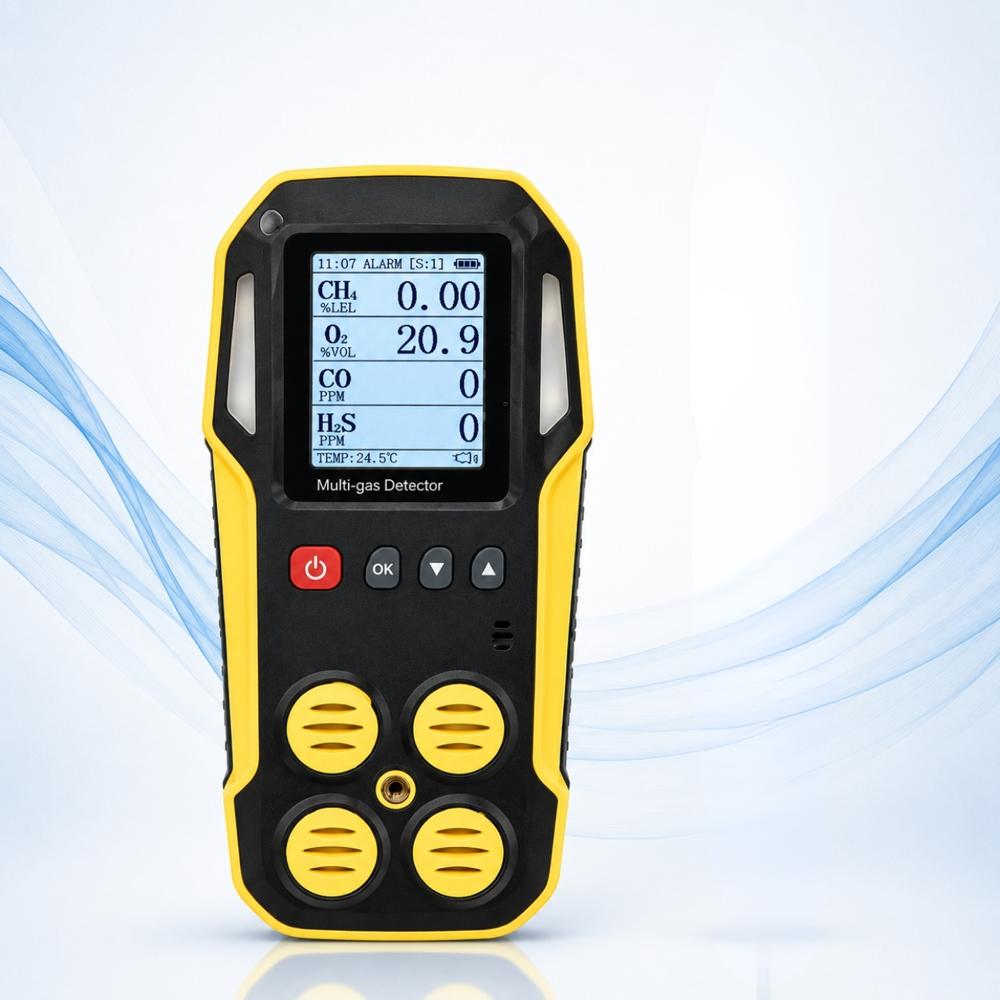

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Versatile Gas Detection for Demanding Environments

This portable detector combines cutting-edge sensor technology-electrochemical and catalytic combustion-to accurately monitor multiple gases simultaneously. Its robust construction and high visibility LCD display ensure reliability and ease of use, even in harsh industrial or environmental conditions.


Long-Lasting Power with Convenient Charging

Enjoy up to 8 hours of continuous operation with the built-in rechargeable Li-ion battery. The USB charging interface provides simple and hassle-free recharging, keeping the detector ready for extended field use or multiple shifts without downtime.


Maximum Safety with Triple Alarm System

Stay aware of hazardous conditions with loud audible alarms, bright visual indicators, and powerful vibration alerts. These three alarm modes ensure that critical warnings are always noticed, even in noisy or low-visibility settings.

FAQ's of Portable Multi Gas Detector:


Q: How does the Portable Multi Gas Detector operate in the field?

A: The device operates in continuous sampling mode, allowing it to constantly monitor up to four gases at once. Its manual control and straightforward interface with physical buttons make it easy to operate anywhere, from industrial sites to confined spaces.

Q: What is the battery life and charging process for this detector?

A: The detector provides up to 8 hours of continuous operation on a full charge. Recharging is simple using the included USB cable, ensuring rapid turnaround between uses.

Q: Where can this multi gas detector be used effectively?

A: It is ideal for industrial safety checks, environmental monitoring, confined space entry, and toxic gas detection in workplaces such as factories, refineries, and utility sites.

Q: What gases can the detector measure and within what ranges?

A: The device can detect Methane (CH4) from 0-100%LEL, Oxygen (O2) from 0-30%Vol, Carbon Monoxide (CO) from 0-1000ppm, and Hydrogen Sulfide (H2S) from 0-100ppm, providing comprehensive protection for common industrial hazards.

Q: How is calibration handled, and can users perform it themselves?

A: Calibration of the gas detector is user-calibratable, with clear on-screen prompts to guide you through the process. This ensures accurate and reliable measurements at all times without requiring specialized technicians.

Q: What are the benefits of the triple alarm system?

A: The combination of audible, visual, and vibration alarms ensures critical alerts are noticed immediately, enhancing personal safety even in loud, busy, or visually obstructed environments.

Q: What are the durability and environmental ratings for the detector?

A: With an IP65 waterproof and dustproof rating, the detector is built to withstand tough environments and adverse weather. It operates reliably between -20C and 50C and at humidity levels from 0-95% RH (non-condensing).
