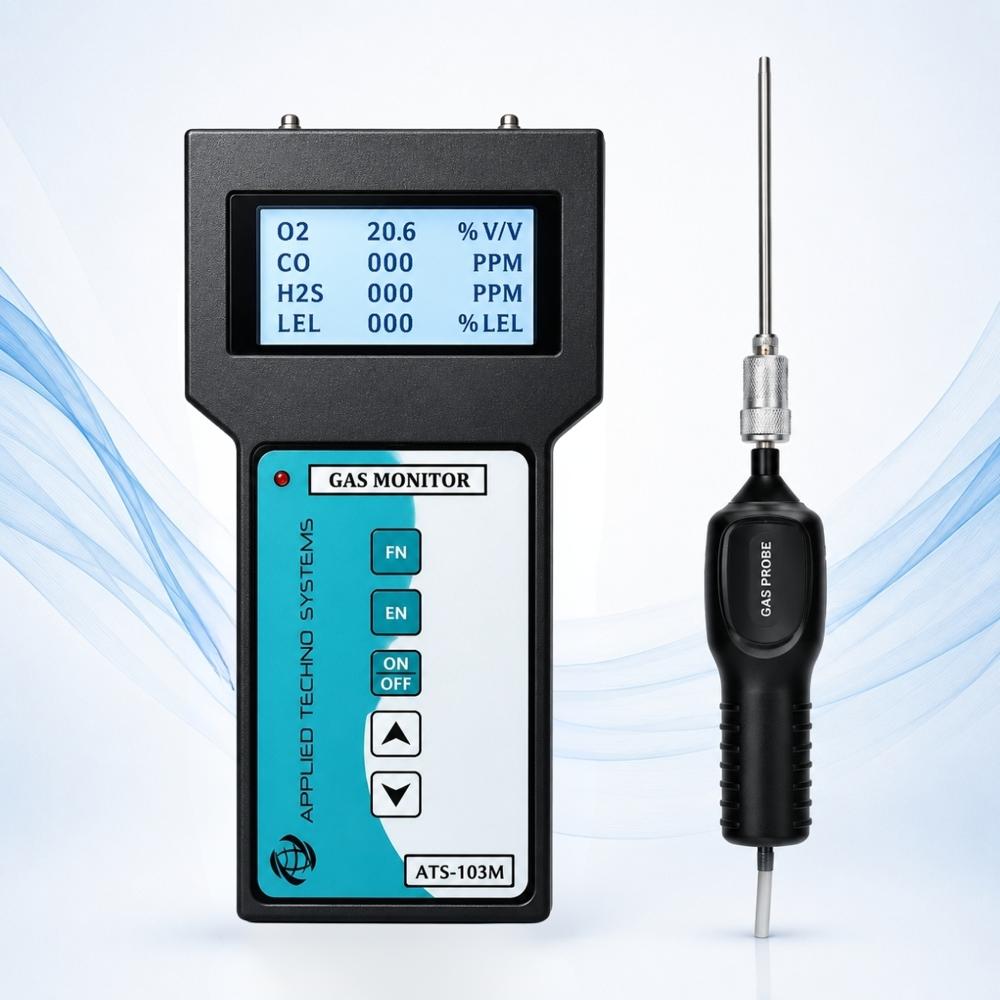

Portable Multi Gas Detector with Sampling Pump
Portable Multi Gas Detector with Sampling Pump
Portable Multi Gas Detector with Sampling Pump
Portable Multi Gas Detector with Sampling Pump
Portable Multi Gas Detector with Sampling Pump
Portable Multi Gas Detector with Sampling Pump

Portable Multi Gas Detector with Sampling Pump

Price 79000.0 INR/ Piece

MOQ : 1 Piece

Portable Multi Gas Detector with Sampling Pump Specification

  • Interface Type
  • Digital interface, alarm output
  • Equipment Type
  • Portable Multi Gas Detector with Sampling Pump
  • Measuring Range
  • O2, CO, H2S, LEL gases
  • Test Range
  • O2: 0-30% Vol, CO: 0-1000 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Port Size
  • Compatible with standard sampling hose fittings
  • Accuracy
  • 2% FS
  • Operating Voltage
  • 3.7V rechargeable battery
  • Features
  • Auto Calibration, Data Logging, Real-Time Display, Audible/Visual/Vibration Alarms
  • Temperature
  • -10C to +50C
  • Display Type
  • Large Backlit LCD Display
  • Automation Grade
  • Automatic
  • Resolution
  • O2: 0.1%, CO: 1 ppm, H2S: 0.1 ppm, LEL: 1%
  • Application
  • Industrial, Confined Space, Safety Monitoring, Environmental Testing
  • Humidity
  • 0-95% RH, non-condensing
  • Response Time
  • < 20 seconds
  • Number of Specimens
  • Simultaneous 4 Gas Measurement
  • Mounting Type
  • Handheld
  • Power Supply
  • Rechargeable Lithium Ion Battery / AC Power Adapter
  • Gas Pressure
  • Atmospheric
  • Usage
  • Portable gas detection with sampling pump for field use
  • Capacity
  • Up to 4 gases simultaneously
  • Machine Weight
  • Approx. 400g (with probe)
  • Control Mode
  • Microprocessor Controlled
  • Alarm Type
  • Audible buzzer, flashing light, and vibration
  • Battery Life
  • >10 hours continuous operation
  • Sampling Method
  • Built-in sampling pump for remote detection
  • Data Logging
  • Yes, stores multiple data points
  • Dimensions
  • Approx. 195mm x 85mm x 40mm
  • Calibration
  • Manual or automatic, user-selectable
  • Sensor Life
  • 2 years typical for standard gases
  • Enclosure Material
  • High-impact ABS plastic
  • Operating Mode
  • Continuous real-time detection
  • Storage Conditions
  • -20C to +60C, dry environment
  • Model Number
  • ATS-103M
  • Ingress Protection
  • IP54 (splash and dust resistant)



About Portable Multi Gas Detector with Sampling Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Advanced Detection for Safety Applications

The ATS-103M offers continuous, real-time gas detection for industrial, environmental, and confined space safety monitoring. With capability to detect oxygen, carbon monoxide, hydrogen sulfide, and combustible gases, this detector meets the needs of workplace hazard assessment and equipment maintenance. Its rugged ABS enclosure and IP54 rating ensure durability and reliability in tough field conditions.


Efficient Data Logging and Alarm System

Equipped with built-in data logging, the detector stores multiple readings for analysis. Audible, visual, and vibration alarms provide immediate alerts when hazardous levels are detected. The digital interface supports easy configuration and output of alarm signals, while the large backlit LCD display enables clear viewing in dark or low-visibility areas.


User-Friendly Design and Operation

With its lightweight, handheld form factor and standard hose port compatibility, the ATS-103M is simple to use in diverse scenarios. Auto and manual calibration options, microprocessor control, and automatic operation reduce user workload and enhance measurement accuracy. The rechargeable battery enables continuous operation for field work, ensuring reliable performance throughout the day.

FAQ's of Portable Multi Gas Detector with Sampling Pump:


Q: How does the built-in sampling pump benefit remote gas detection?

A: The built-in sampling pump allows users to draw air samples from inaccessible or potentially hazardous locations, enabling detection of gas concentrations remotely without direct exposure. This increases safety and provides more flexibility in monitoring confined or distant spaces.

Q: What is the process for calibrating the ATS-103M gas detector?

A: Calibration can be performed manually or automatically, as per user selection. The process is straightforward, guided by on-screen instructions. Regular calibration ensures accurate readings and should be done according to manufacturer recommendations or after sensor replacement.

Q: When should the gas detector be used in the field?

A: The detector is ideal for continuous real-time monitoring in industrial, environmental, or confined space scenarios. Use it whenever safety monitoring for oxygen, carbon monoxide, hydrogen sulfide, or combustible gases is required, particularly before entering or working in potentially hazardous atmospheres.

Q: What gases can the ATS-103M detect, and what is its measuring range?

A: The ATS-103M can monitor up to four gases simultaneously: O2 (0-30% Vol), CO (0-1000 ppm), H2S (0-100 ppm), and LEL (0-100% LEL). Its precise resolution and fast response time (< 20 seconds) ensure accurate, real-time detection.

Q: Where can the detector be mounted or used?

A: Designed as a handheld, portable device, the ATS-103M is suitable for use in any industrial or field setting where gas hazards may exist. Its IP54-rated enclosure ensures it is protected from dust and splashes, making it appropriate for both indoor and outdoor operations.

Q: How does data logging enhance usage and safety management?

A: The data logging feature records multiple data points during operation, allowing users to review past measurements, track trends over time, and comply with safety documentation requirements. This aids in comprehensive risk assessment and incident analysis.

Q: What are the benefits of the device's alarm system?

A: The combination of audible buzzer, flashing lights, and vibration alarms ensures prompt notification in noisy or visually challenging environments, significantly reducing the reaction time to unsafe gas concentrations and enhancing worker safety.
