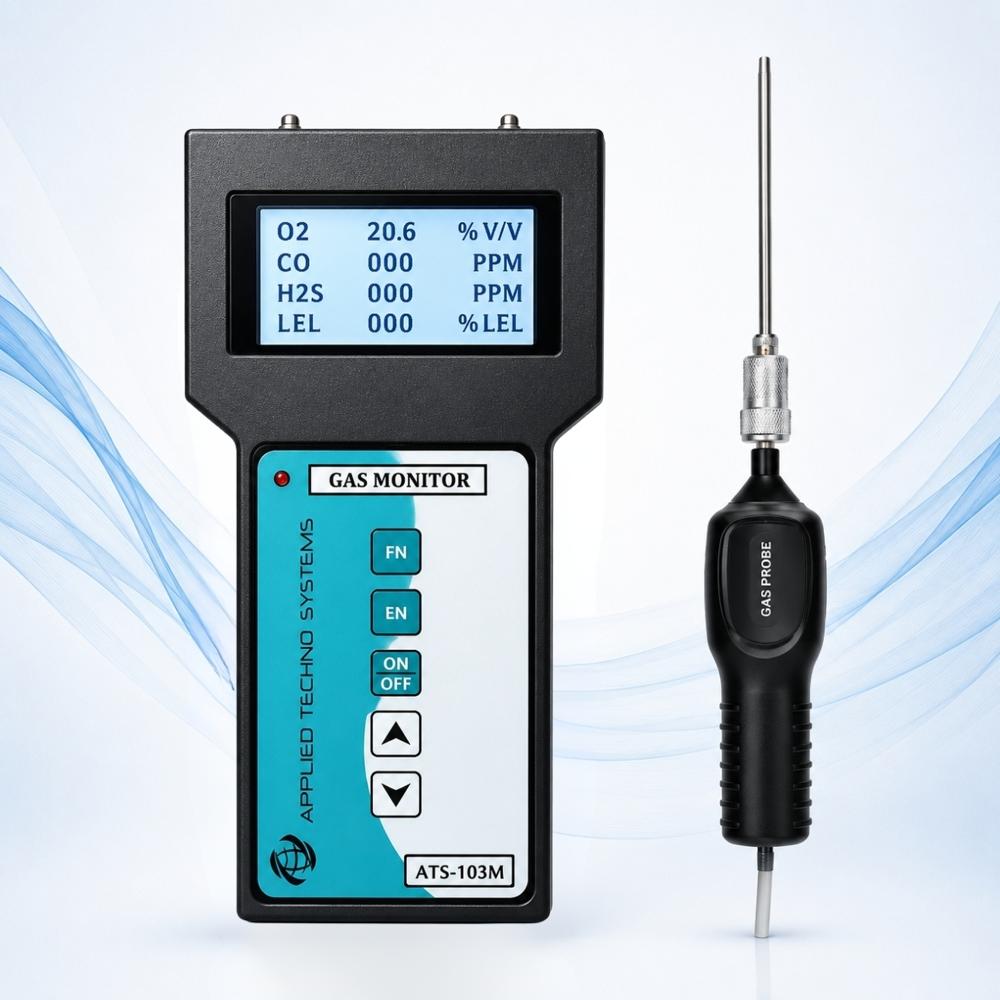

Professional Multi Gas Detector With Pump
Professional Multi Gas Detector With Pump
Professional Multi Gas Detector With Pump
Professional Multi Gas Detector With Pump
Professional Multi Gas Detector With Pump
Professional Multi Gas Detector With Pump

Professional Multi Gas Detector With Pump

Price 70000.0 INR/ Piece

MOQ : 1 Piece

Professional Multi Gas Detector With Pump Specification

  • Measuring Range
  • O2: 0-30% V/V, CO: 0-1000 PPM, H2S: 0-1000 PPM, LEL: 0-100% LEL
  • Operating Voltage
  • Direct DC Input or Rechargeable Battery
  • Response Time
  • <30 seconds
  • Port Size
  • Sampling Probe: Standard Size
  • Gas Pressure
  • Atmospheric
  • Interface Type
  • Digital Button Interface
  • Equipment Type
  • Professional Multi Gas Detector with Pump
  • Accuracy
  • 2% F.S.
  • Mounting Type
  • Handheld
  • Application
  • Industrial Safety, Environmental Monitoring, Gas Detection in Confined Spaces
  • Temperature
  • -20C to +50C
  • Display Type
  • Large Digital LCD Screen
  • Resolution
  • O2: 0.1%, CO & H2S: 1 PPM, LEL: 1% LEL
  • Power Supply
  • Rechargeable Lithium Battery
  • Test Range
  • O2: 0-30% Vol, CO & H2S: 0-1000 PPM, LEL: 0-100% LEL
  • Automation Grade
  • Semi-Automatic
  • Humidity
  • 0-95% RH (non-condensing)
  • Features
  • Data Hold, Audible & Visual Alarm, Backlight Display, Portable with Sampling Pump
  • Usage
  • Detection of O2, CO, H2S, Combustible Gases
  • Capacity
  • Multiple Gas Detection
  • Machine Weight
  • Approx. 500g
  • Control Mode
  • Manual Button Operation
  • Sensor Life Span
  • 2-3 Years Typical
  • Battery Life
  • Up to 8-10 Hours Continuous Use
  • Data Storage
  • Up to 1000 Records (Optional, Model Dependent)
  • Alarm Output
  • Audio, Visual & Vibration Alarms
  • Calibration
  • Manual with Standard Gas
  • Enclosure Protection
  • IP54 Rated
  • Sampling Method
  • Internal Pump Suction
  • Operating Language
  • English



About Professional Multi Gas Detector With Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Versatile Multi-Gas Detection

This detector offers simultaneous monitoring of O2, CO, H2S, and combustible gas levels (LEL). Its high accuracy, fast response time, and resolution make it a dependable choice for industrial safety, environmental monitoring, and confined space entry. The built-in sampling pump ensures continuous real-time detection even in challenging conditions.


User-Friendly Operation and Maintenance

Featuring intuitive manual button controls and a large backlit display, the device is easy to operate, even in low-light conditions. Manual calibration using standard gases is straightforward, allowing users to maintain accuracy over the sensor's typical lifespan of 2-3 years. Optional data storage enables convenient record-keeping and analysis, supporting safety documentation needs.

FAQ's of Professional Multi Gas Detector With Pump:


Q: How does the internal pump sampling method work in this gas detector?

A: The internal pump automatically draws ambient air through the sampling probe into the sensor chamber, ensuring continuous and efficient gas monitoring without manual intervention. This method is especially effective for testing in remote or confined spaces.

Q: What types of alarms does the detector provide during gas detection?

A: The detector features multiple alarm outputs, including audio signals, visual flashing lights, and vibration alerts. These alarms are activated when gas concentrations exceed preset thresholds, ensuring immediate user awareness and action.

Q: When should the sensors be calibrated, and what is the standard calibration process?

A: It is recommended to calibrate the detector at regular intervals or before critical use. Calibration is performed manually using standard calibration gases and adjusting the readings as instructed in the user manual to maintain high measurement accuracy.

Q: Where is this multi-gas detector commonly used?

A: This detector is ideal for industrial safety applications, environmental monitoring, and gas detection in confined spaces such as tanks, pits, or underground installations. Its portability and robust enclosure make it suitable for both indoor and outdoor environments.

Q: What benefits does the data storage function provide?

A: With optional data storage for up to 1,000 records (depending on the model), users can log measurement data over time. This feature supports regulatory compliance, safety audits, and trend analysis for workplace monitoring.

Q: How long does the battery last during continuous use, and what type does it use?

A: The gas detector is powered by a rechargeable lithium battery, providing up to 8-10 hours of continuous operation, making it suitable for a full work shift without frequent recharging.
