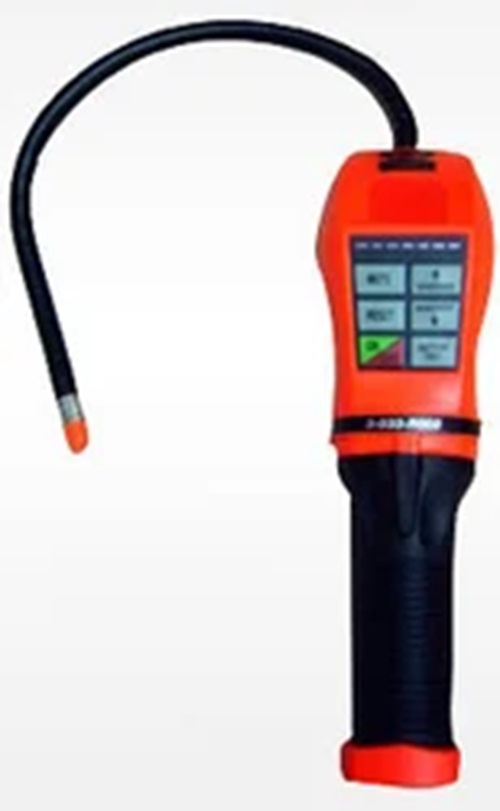

SF6 Gas Leak Detector

Name: SF6 Gas Leak Detector
Brand: APPLIED TECHNO ENGINEERS PRIVATE LIMITED
Price: 198500.0 INR
Availability: InStock

Price 198500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SF6 Gas Leak Detector Specification

Humidity
95% RH

Operating Voltage
DC 7.4V (Rechargeable battery) Volt (V)

Gas Pressure
0.3 MPa PSI

Features
Auto zeroing, audible and visual alarms, data logging

Display Type
Digital LCD

Measuring Range
5 Fahrenheit (oF)

Temperature
-10 C ~ 50 C Fahrenheit (oF)

Number of Specimens
1

Accuracy
3% of reading gm

Application
Detection of SF6 gas leakage in electrical equipment and GIS

Interface Type
Standard USB

Test Range
1 ppm ~ 1000 ppm (SF6)

Mounting Type
Handheld

Automation Grade
Semi-Automatic

Resolution
1 ppm

Equipment Type
SF6 Gas Leak Detector

Power Supply
AC 220V, 50Hz

Port Size
1/4 inch

Response Time
<2 seconds Seconds

Frequency
50Hz Hertz (HZ)

Usage
Gas Leak Detection

Capacity
1 Kg

Machine Weight
900 Gram (g)

Control Mode
Manual & Automatic

Calibration
User calibration supported

Storage Temperature
-20C to 60C

Ingress Protection
IP54

Probe Length
38 cm flexible probe

Battery Life
8 hours continuous operation

Dimensions
250mm x 86mm x 56mm

Alarm Type
Audible and Visual

Sensor Type
Electrochemical

About SF6 Gas Leak Detector

SF6 Gas Leak Detector With the involvement of high-end technology, modern machinery and advanced tools in all our processes, we are engaged in offering a qualitative assortment of SF6 Gas Leak Detector. Widely used for gas detection in varied industries, this has have become the first choice of the customers. Our offered detector is exceptionally valued in the market, owing to its efficient functionality and low maintenance. Clients can avail the entire range from us in various technical specifications at affordable prices.

Features:

Low maintenance
Rust resistance
High performance

Specifications:

Measuring Principle: Ion-Vaccum Principle
Power Supply: 3V DC, two "C" cell Alkaline batteries
Ultimate Sensitivity: 5 g SF6/year
Operating Temperature: 0 deg to 52 deg C
Battery Life: Approximately 30 hours
Duty Cycle: Continuous, no limitation
Response Time: Instantaneously
Reset Time: One Second
Warm-Up Time: Approximately 2 seconds
Unit Weight: 560 grams
Unit Dimensions: 229 X 65 X 65mm
Fixed Probe Length: 355mm
Warranty: One year
Battery: 6 volt alkaline, Rechargeable batteries 1.5V (AA Alkaline)
Temperature: -10 deg C to 50 deg C
Humidity: 15 to 95% RH
Weight: 200 GM
Dimension: 119(H) X80(L)X 25(D)

Exceptional Leak Detection Accuracy

Equipped with an advanced electrochemical sensor, the SF6 Gas Leak Detector guarantees high sensitivity and precise readings. Its rapid response time of less than 2 seconds and 1 ppm resolution allow users to quickly identify even the smallest leaks, ensuring minimal downtime and improved safety for electrical installations.

User-Friendly and Robust Design

The ergonomic, handheld unit features a flexible 38 cm probe, making it easy to reach difficult areas in electrical cabinets and substations. With IP54 ingress protection and a sturdy build, it withstands tough working conditions. Its clear digital LCD, audible and visual alarms, and auto-zeroing make operation straightforward for all users.

Reliable Power and Flexible Operation

An 8-hour continuous battery life and AC 220V power supply support uninterrupted use in the field. The SF6 leak detector's dual control modes (manual and automatic) and user-calibration capability provide flexibility and convenience for both experienced technicians and newcomers. Data logging and USB interface further enhance functionality.

FAQ's of SF6 Gas Leak Detector:

Q: How does the SF6 Gas Leak Detector identify and report gas leaks?

A: The detector uses an electrochemical sensor to detect SF6 gas concentrations within a range of 1 ppm to 1000 ppm. Audible and visual alarms immediately alert the operator when a leak is detected, and real-time data is displayed on a digital LCD screen.

Q: What are the steps for performing a user calibration on this device?

A: User calibration is straightforward-follow the on-screen prompts to expose the sensor to a known gas concentration. The digital LCD will guide you through each step to ensure optimal accuracy, maintaining the unit's performance over time.

Q: When should I use the manual or automatic control mode?

A: Manual mode is ideal for targeted, hands-on inspections, while automatic mode is better for continuous or unattended monitoring of specific zones. Choose the mode that best suits your application and workflow requirement.

Q: Where can the SF6 Gas Leak Detector be used effectively?

A: This detector is designed for use in electrical substations, GIS installations, and maintenance workshops-any environment where SF6 gas leaks may occur. Its IP54 ingress protection allows for reliable operation even in tough, dusty, or slightly damp conditions.

Q: What is the process for data logging and accessing measurement records?

A: Measurement data is logged automatically as you operate the device. Records can be transferred or accessed via the standard USB interface, making it easy to archive and analyze leak detection events as part of your maintenance protocol.

Q: How long can the device operate continuously on a full charge, and what are its battery options?

A: This detector operates for up to 8 hours on a single charge with its rechargeable DC 7.4V battery. For stationary or longer-duration use, it can also be powered using its AC 220V supply.

Q: What are the primary benefits of using this SF6 Gas Leak Detector in a maintenance program?

A: The device's high sensitivity, fast response, robust design, and dual alarm system enhance safety and efficiency. Its portability and flexible probe allow comprehensive inspections, while user calibration and data logging facilitate regular reporting and compliance with safety standards.
