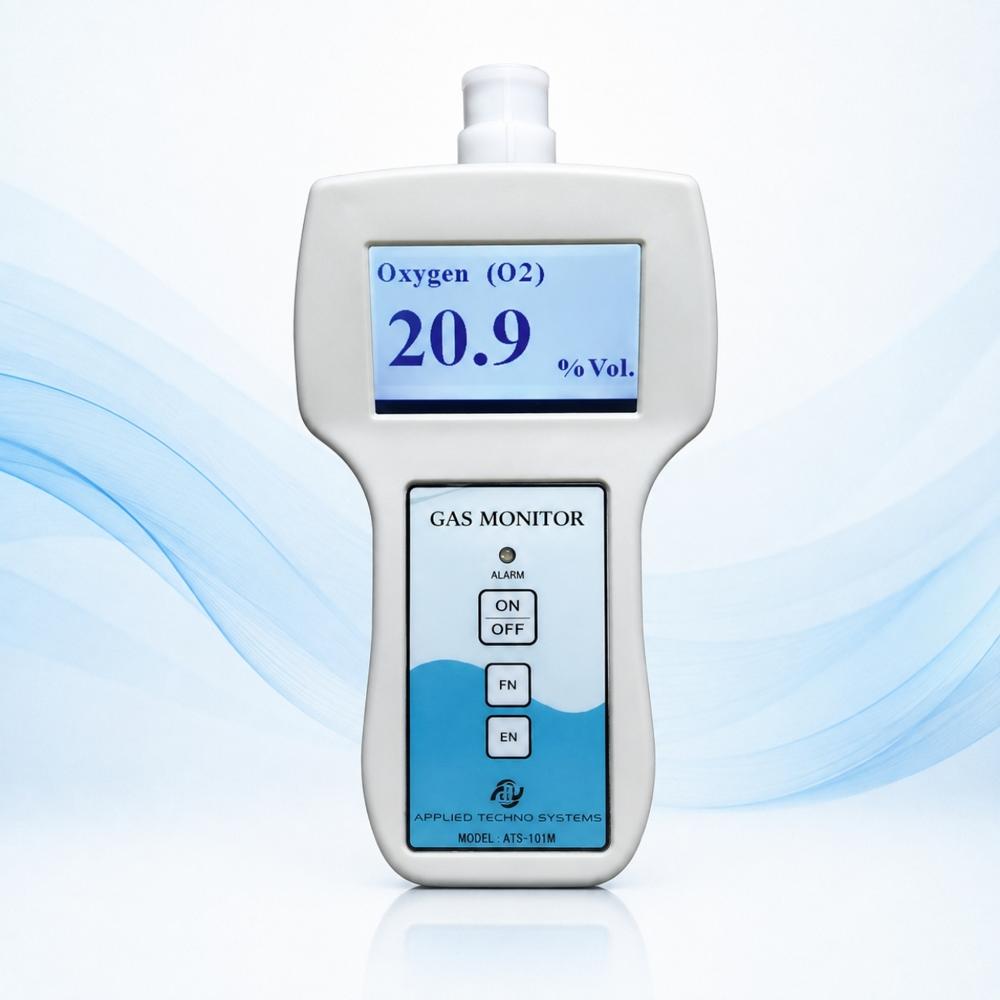

Single Gas Monitoring Device with Pump
Single Gas Monitoring Device with Pump
Single Gas Monitoring Device with Pump
Single Gas Monitoring Device with Pump
Single Gas Monitoring Device with Pump
Single Gas Monitoring Device with Pump
Single Gas Monitoring Device with Pump
Single Gas Monitoring Device with Pump

Single Gas Monitoring Device with Pump

Price 44000.0 INR/ Unit

MOQ : 1 Unit

Single Gas Monitoring Device with Pump Specification

  • Measuring Range
  • 0-30% Vol (O2)
  • Number of Specimens
  • Single
  • Display Type
  • LCD Digital Display
  • Port Size
  • Standard Sampling Port with Inlet Tube
  • Resolution
  • 0.1% Vol
  • Features
  • Built-in pump, alarm, portable design
  • Application
  • Oxygen Gas Detection and Monitoring
  • Power Supply
  • Rechargeable Lithium Battery 3.7V
  • Operating Voltage
  • 3.7V DC (Battery)
  • Response Time
  • <15 seconds
  • Accuracy
  • 0.1% Vol
  • Gas Pressure
  • Atmospheric
  • Interface Type
  • Push buttons for control
  • Test Range
  • 0-30% Vol (Oxygen)
  • Temperature
  • -10C to 55C
  • Automation Grade
  • Semi-Automatic
  • Humidity
  • 0-95% RH (non-condensing)
  • Mounting Type
  • Handheld
  • Usage
  • Industrial, Laboratory, Environmental Monitoring
  • Machine Weight
  • 230 g
  • Control Mode
  • Manual
  • Model No.
  • ATS-101M
  • Sensor Type
  • Electrochemical
  • Battery Life
  • Over 8 hours continuous operation
  • Sampling Method
  • Internal Pump
  • Data Logging
  • Optional
  • Body Material
  • ABS Plastic
  • Dimensions
  • 165 x 85 x 35 mm
  • Operating Environment
  • Indoor/Outdoor
  • Equipment Type
  • Single Gas Monitoring Device with Pump
  • Alarm Type
  • Visual & Audible Alarm
  • Calibration
  • Manual/Automatic



About Single Gas Monitoring Device with Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Reliable Oxygen Monitoring for Critical Applications

The ATS-101M delivers accurate oxygen gas detection with a measuring range of 0-30% Vol, making it invaluable for workplace safety, laboratory quality control, and environmental monitoring. Its high-precision electrochemical sensor and rapid response time ensure that you are alerted to hazardous conditions quickly, safeguarding personnel and processes in various demanding environments.


User-Friendly and Rugged Design

Featuring intuitive push-button controls and a bright LCD digital display, the device is easy to operate and read, even in challenging settings. The lightweight ABS plastic construction and ergonomic handheld design allow for comfortable, portable use throughout a workday. Its built-in pump enables efficient sample collection from various locations.


Flexible Operation and Calibration

The ATS-101M supports both manual and automatic calibration processes, accommodating different user preferences and regulatory requirements. Its rechargeable battery provides long-lasting power, while the optional data logging feature enhances record-keeping and regulatory compliance.

FAQ's of Single Gas Monitoring Device with Pump:


Q: How does the ATS-101M collect and analyze gas samples?

A: The ATS-101M is equipped with an internal pump that actively draws air through a standard sampling port and inlet tube. This air sample is analyzed by the electrochemical sensor, which detects oxygen concentration and displays the results on the LCD screen, with alerts provided if levels are outside the set range.

Q: What is the primary benefit of the built-in pump in this device?

A: The built-in pump allows for more effective sample collection, especially from hard-to-reach or confined areas. This ensures accurate oxygen level monitoring in spaces where passive diffusion methods may not be reliable.

Q: When should the device be calibrated and how is calibration performed?

A: Calibration should be performed regularly according to your workplace safety protocols, before initial use, or after prolonged storage. The ATS-101M supports both manual and automatic calibration, which can be performed through user-friendly on-board controls following the provided instructions.

Q: Where can the ATS-101M be used effectively?

A: This device is suitable for a wide range of environments, including industrial workplaces, laboratories, and both indoor and outdoor locations where oxygen monitoring is required for safety or quality control.

Q: What is the typical operating life of the battery, and how is it recharged?

A: The ATS-101M operates for over 8 hours on continuous use, powered by a rechargeable 3.7V lithium battery. Recharging is accomplished via the included charging port, ensuring reliable daily operation.

Q: How do the alarm notifications work on this gas monitoring device?

A: The device utilizes both visual and audible alarms to alert users when oxygen levels fall outside of the designated safe range, ensuring immediate attention and prompt corrective action.
