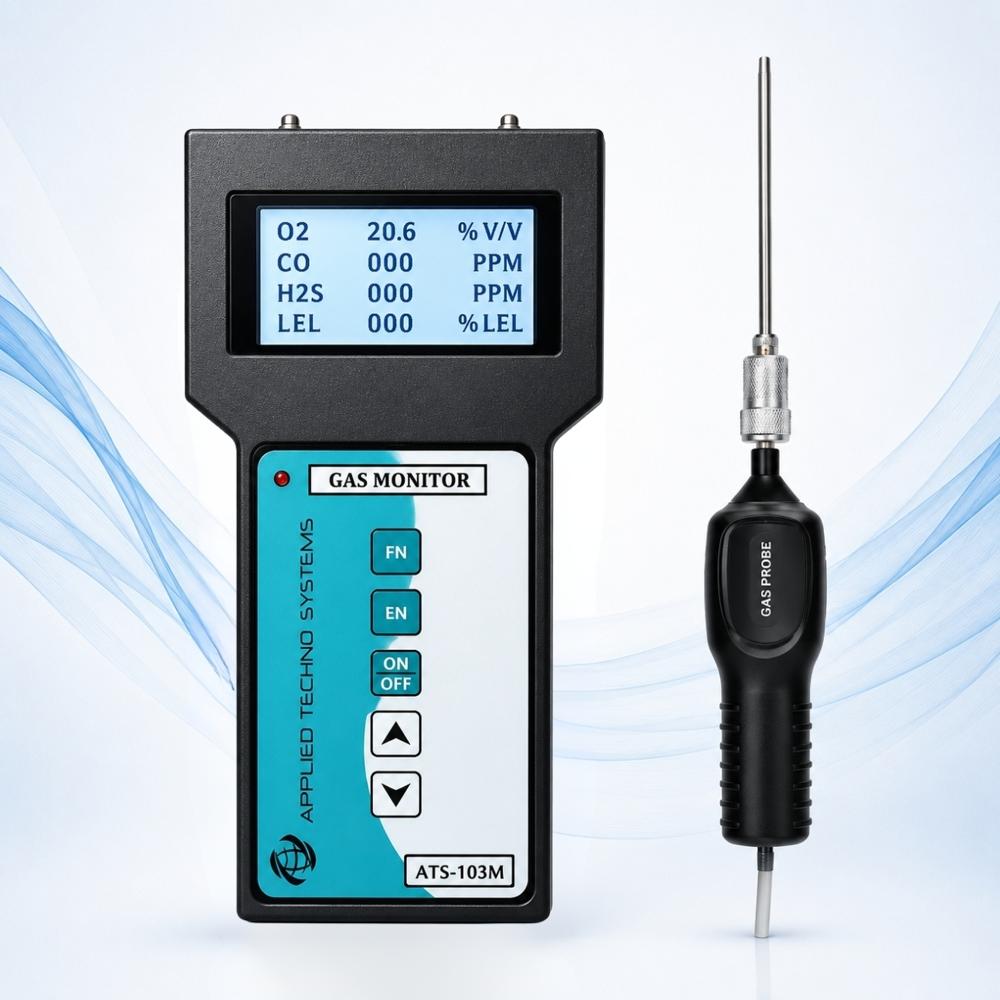

Personal Multi Gas Detector with Pump
Personal Multi Gas Detector with Pump
Personal Multi Gas Detector with Pump
Personal Multi Gas Detector with Pump
Personal Multi Gas Detector with Pump
Personal Multi Gas Detector with Pump

Personal Multi Gas Detector with Pump

Price 76000.0 INR/ Piece

MOQ : 1 Piece

Personal Multi Gas Detector with Pump Specification

  • Power Supply
  • Rechargeable Li-ion battery / DC adapter
  • Response Time
  • <30 seconds (T90, sensor dependent)
  • Interface Type
  • Membrane keypad, LCD display
  • Temperature
  • -10C to +50C
  • Mounting Type
  • Handheld/portable
  • Equipment Type
  • Personal Multi Gas Detector with Pump
  • Resolution
  • O2: 0.1%, CO/H2S: 1 PPM, LEL: 1% LEL
  • Specimen Size
  • Sampled air; variable quantity
  • Number of Specimens
  • Single environmental sample per measurement
  • Test Range
  • Depends on sensor: O2 (0-30% V/V), CO (0-1000 PPM), H2S (0-100 PPM), LEL (0-100% LEL)
  • Measuring Range
  • O2: 0-30% V/V, CO: 0-1000 PPM, H2S: 0-100 PPM, LEL: 0-100% LEL
  • Port Size
  • Standard gas probe fitting
  • Automation Grade
  • Manual operation
  • Application
  • Industrial safety, confined space entry, hazardous area monitoring
  • Gas Pressure
  • Atmospheric pressure (non-pressurized sampling)
  • Operating Voltage
  • 3.7V Li-ion battery or 5V DC adapter
  • Accuracy
  • 3% F.S. (typical, sensor dependent)
  • Features
  • Portable, built-in sampling pump, multiple gas detection, user adjustable alarm settings, real-time LCD display
  • Humidity
  • 0% - 95% RH (non-condensing)
  • Display Type
  • Large LCD digital display
  • Usage
  • Personal safety gas detection
  • Capacity
  • Continuous sampling
  • Machine Weight
  • Approx. 400 g (including battery and probe)
  • Test Speed
  • Real-time detection
  • Test Width
  • Single point sampling
  • Control Mode
  • Manual via keypad
  • Battery Life
  • 8-12 hours (typical per charge)
  • Enclosure Material
  • High-impact ABS
  • Zero/Span Adjustment
  • Available via keypad
  • Alarm Type
  • Audible, visual, and vibration alarms
  • Sensor Type
  • Electrochemical for toxics, catalytic bead for LEL
  • Calibration
  • User adjustable, auto/manual calibration
  • Display Backlight
  • Yes
  • Dimensions
  • Approx. 180 x 80 x 40 mm (excluding probe)
  • Model Number
  • ATS-103M
  • Protection Level
  • IP54 or higher (splash and dust resistant)
  • Included Accessories
  • Sampling probe, charger, calibration cap, user manual
  • Data Logging
  • Optional (model dependent)



About Personal Multi Gas Detector with Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Enhanced Safety With Multiple Alarms

The ATS-103M provides comprehensive alerts using audible, visual, and vibration alarms. This multi-alarm system enables workers to receive clear warnings of dangerous gas levels, enhancing personal safety even in loud or visually impaired environments. The alarm settings can be adjusted by the user, making the device adaptable to specific workplace requirements.


Accurate and Flexible Gas Detection

Utilising advanced electrochemical and catalytic sensors, the detector measures oxygen, carbon monoxide, hydrogen sulfide, and combustible gases. Its calibration is user adjustable and can be performed either manually or automatically, ensuring precise results. The real-time LCD display allows users to quickly interpret gas concentration data during critical operations.


Rugged Design for Any Worksite

Enclosed in high-impact ABS with IP54 protection, the ATS-103M withstands the rigors of industrial environments. It is splash and dust resistant, lightweight, and portable, making it suitable for professionals working in confined spaces or hazardous areas. The battery lasts up to 12 hours per charge and the device includes essential accessories for on-site use.

FAQ's of Personal Multi Gas Detector with Pump:


Q: How do I calibrate the ATS-103M Personal Multi Gas Detector?

A: Calibration can be performed using the keypad, with auto and manual options available. Refer to the user manual for instructions, and make sure to use the included calibration cap and recommended gases for accurate adjustment.

Q: What types of alarms does this detector provide, and how do they work?

A: This device offers audible, visual, and vibration alarms. When detected gas levels exceed user-set thresholds, the detector alerts the user through sound, flashing lights, and strong vibrations for immediate awareness in all conditions.

Q: When should I use the ATS-103M for gas detection?

A: Use it before entering confined spaces, during hazardous area monitoring, or whenever personal safety during gas exposure is a concern. Continuous sampling enables prompt detection and response to changing environmental conditions.

Q: What gases can the ATS-103M detect and measure?

A: The detector monitors oxygen (0-30% V/V), carbon monoxide (0-1000 PPM), hydrogen sulfide (0-100 PPM), and the lower explosive limit of combustible gases (0-100% LEL), with accuracy and resolution tailored to each gas type.

Q: Where is the ATS-103M typically used?

A: It is commonly deployed in industrial plants, confined spaces, hazardous areas, and worksites requiring personal safety monitoring. Its portability and rugged build make it suitable for a variety of workplace environments.

Q: What is the process for taking a measurement?

A: Switch the device on, select the measurement mode via the membrane keypad, and use the included sampling probe to collect an environmental air sample. Results are displayed in real time on the LCD screen within 30 seconds.

Q: What are the benefits of using the ATS-103M in the workplace?

A: Benefits include enhanced worker safety through reliable gas detection, rapid response to hazardous gas exposure, portability for easy deployment, and user-adjustable alarm settings for tailored protection.
