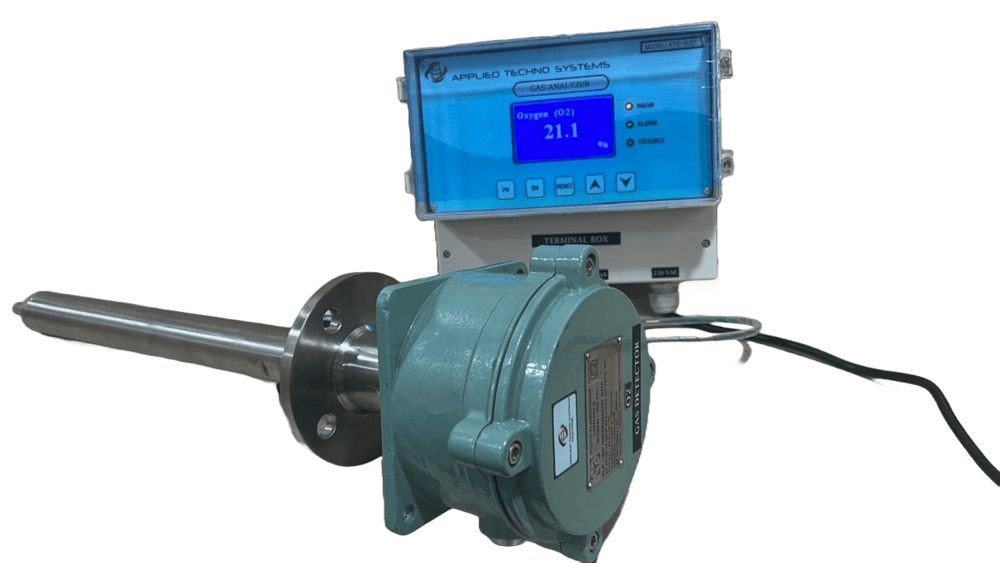

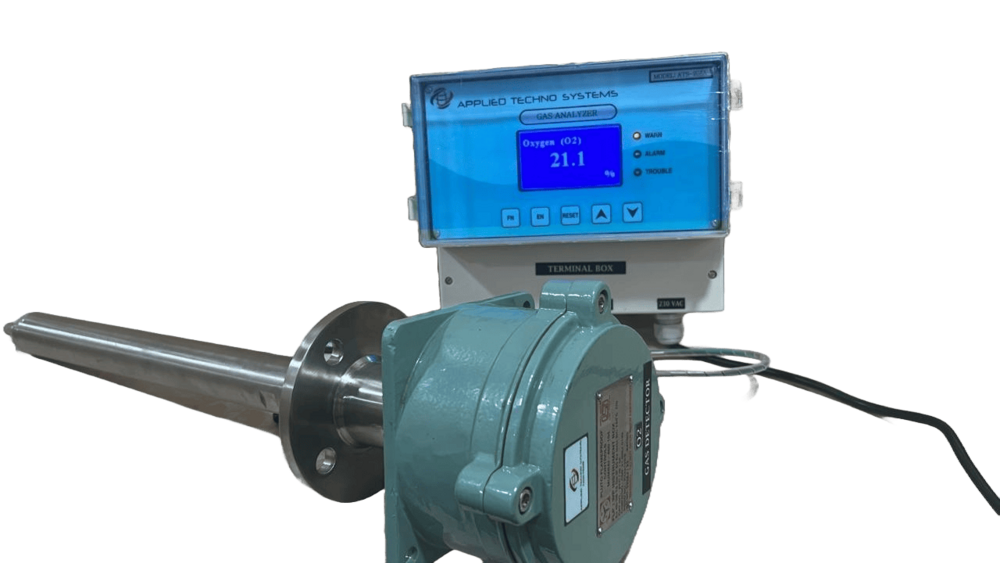

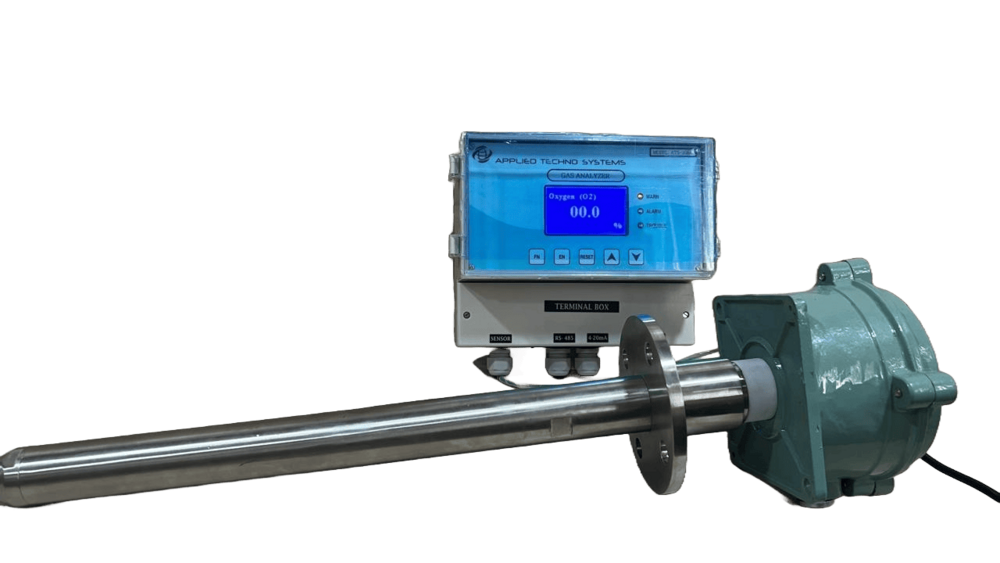

Online In-situ Zirconia Based Oxygen Gas Analyzer Model ATS 208A

Price 275000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Online In-situ Zirconia Based Oxygen Gas Analyzer Model ATS 208A Specification

Features
Good Quality

Mounting Type
Handheld or tripod

Automation Grade
Semi-automatic

Operate Method
Semi Automatic

Power Supply
Electric

Product Type
Oxygen Analyzer

Material
MS

Hardness
Yes

Interface Type
USB / Bluetooth

Usage
Industrial

About Online In-situ Zirconia Based Oxygen Gas Analyzer Model ATS 208A

Online in-situ Zirconia-based Oxygen Gas Analyzer Model ATS 208A is an important instruments used in various industrial processes for monitoring and controlling oxygen levels in stack & biolers.

Common applications include:

Combustion control in boilers, furnaces, and incinerators.
Process optimization in petrochemical and refining industries.
Emissions monitoring for environmental compliance.

Specifications -:
. Range - 0-25% V/V & 0-100% V/V
Operating Temperature Gas : 0-450 Deg C

Response Time : Instantaneous

Acuracy : +/- 0.05%

Response Time: 30 seconds at 95% variation

Power supply : 230VAC/50Hz

Display: High quality Graphics LCD.

Digital Output: RS 485,

Analog : 4-20mA

Relay output to closed or start the blower

Zirconia Based Oxygen Gas Sensor Impored for UK

Advanced Oxygen Measurement Technology

The ATS 208A uses Zirconia sensor technology to deliver precise in-situ oxygen gas analysis, making it ideal for continuous monitoring in demanding industrial environments. Its durability ensures consistent performance even in harsh settings.

User-Friendly Semi-Automatic Operation

Designed with industrial usage in mind, this analyzer offers a semi-automatic operating method that balances efficiency and ease of handling. Its interface, available through both USB and Bluetooth, simplifies data management and device configuration.

Flexible Mounting and Construction

Whether you need a portable handheld device or a stationary tripod setup, the ATS 208A adapts to your requirements. The MS construction adds to its ruggedness, making it suitable for various industrial sites.

FAQs of Online In-situ Zirconia Based Oxygen Gas Analyzer Model ATS 208A:

Q: How does the ATS 208A Zirconia Based Oxygen Gas Analyzer function in industrial applications?

A: The ATS 208A uses a zirconia sensor to accurately detect and analyze oxygen gas concentrations in real-time, providing essential data for industrial processes such as combustion control and process monitoring.

Q: What are the main features and benefits of the ATS 208A oxygen analyzer?

A: Key features include a semi-automatic operation, durable MS construction, compatibility with handheld or tripod mounting, USB and Bluetooth interfaces, and reliable performance. Its main benefit is delivering precise, continuous oxygen monitoring to improve safety and efficiency.

Q: When should the ATS 208A oxygen analyzer be used in an industrial setting?

A: This analyzer is ideal for any process that requires continuous monitoring of oxygen levels, such as manufacturing, energy production, or environmental monitoring, ensuring optimal performance and compliance.

Q: Where can the ATS 208A oxygen analyzer be installed or operated?

A: The unit can be used in various industrial environments, thanks to its flexible mounting options. You can operate it handheld for portable measurements or mount it on a tripod for stationary analysis.

Q: What is the process for using the ATS 208A oxygen analyzer?

A: Simply connect the device to a power supply, select your preferred mounting method, and use the USB or Bluetooth interface to manage the device. The semi-automatic system guides users through setup and measurement.

Q: How does the ATS 208A improve industrial operations?

A: By providing accurate, real-time oxygen measurements, it enables better control of combustion and other processes, leading to greater efficiency, reduced emissions, and enhanced workplace safety.
