Online Stack Monitoring Systems

Price 345000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Online Stack Monitoring Systems Specification

Temperature
15 Celsius (oC)

Dimension (L*W*H)
200 X 120 X 185 Millimeter (mm)

Accuracy
+2 %

Material
Aluminum

Power Supply
Electric

Weight
1.5 Kilograms (kg)

Humidity
< 85%RH

Online Stack Monitoring Systems Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai

Supply Ability
20 Pieces Per Week

Delivery Time
2-3 Week

Sample Available
Yes

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Online Stack Monitoring Systems

Online Stack Monitoring System Model ATS-208A

We are an enviable entity instrumental in manufacturing, exporting and supplying high grade Online Stack Monitoring Systems across the world. The offered systems are used for measuring the content of pollutants within the stack emission. These systems are manufactured with utmost perfection by making use of an excellent quality components and latest technology as per industry norms. Moreover, we provided these Online Stack Monitoring Systems in several technical specifications at competitive price range.

Features :-

Sturdy construction
Low power consumption
Noise free operations
Less maintenance required

Online Stack Monitoring Systems

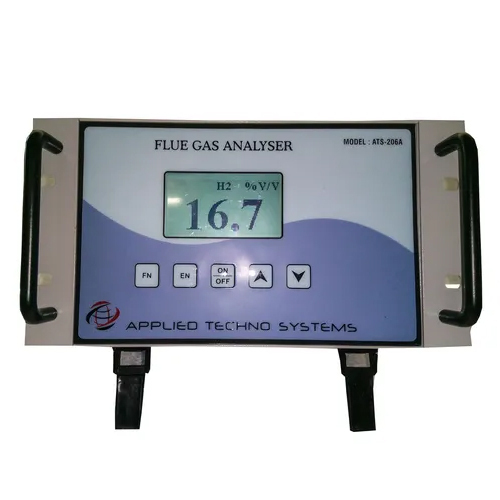

We offer comprehensive range of stack gas Analyzer Portable and Continuous for the analysis of stack/flue gases in exhaust, boiler and combustion process. Model ATS- 206A Flue gas Analyzer measure the flue gases after placing its probe into stack or appliance exhaust and see the concentration of Oxygen (O2), Carbon Monoxide (CO) Carbon Dioxide (CO2). Efficient combustion also reduces emission of pollutants such as nitric oxide (NO), nitrogen dioxide (NO2), sulphur dioxide (SO2), and particulate matter. A gas analyzer will also help measure various gas pollutants in the exhaust for environmental reasons.

Specification

Principle	Electrochemical, Zirconium, Thermal Conductivity and NDIR (Non dispersive Infrared)
Range	%V/V & PPM
Resolution	0.1 Unit or 1 Unit (Application based)
Sampling Method	Auto Suction or Direct Plug In
Gas Sampling Probe	Dia 8mm SS 316
Display	128 X 64 Graphics LCD
Alarm	Visual and Audible
Power Source	Built in Lithium Rechargeable battery
Accuracy	+/2%
Response Time	<5 Second
Data Storage	5000 or 10000
Computer Interface	RS 232, USB, RS485
Sensor Life	4-5 Years
Operating Time	6 -8 hours
Environmental
Temperature	15degree Celsius
Humidity	< 85%RH
Atmosphere Pressure	86- 106Kpa
Housing	High Impact Plastic
Dimension in mm	200 (W) X 120 (H) X 185(D)
Weight	1.5 KG
Warranty	One Year

Premium Build for Industrial Use

Each unit features a sturdy aluminum exterior which offers exceptional durability and resistance to environmental wear, ensuring longevity even in demanding industrial settings. The light 1.5 kg weight and compact frame facilitate easy transportation and installation, while the streamlined 200 x 120 x 185 mm dimensions allow for seamless integration into existing setups.

High Precision and Reliable Performance

With an accuracy of 2%, these online stack monitoring systems provide consistent, credible data essential for emission regulation compliance. Operating comfortably at 15C and suitable for use in environments with less than 85% relative humidity, they deliver reliable analytics for factories, manufacturers, and energy plants.

FAQs of Online Stack Monitoring Systems:

Q: How does the Online Stack Monitoring System ensure accurate emission measurements?

A: The system utilizes advanced sensing technology calibrated to deliver readings within a 2% accuracy range, providing highly dependable monitoring of emissions in industrial environments.

Q: What materials and dimensions characterize this monitoring system?

A: It is constructed from durable aluminum and has a compact dimension of 200 x 120 x 185 mm, making it robust, lightweight (1.5 kg), and easy to install in diverse facility layouts.

Q: When should a facility consider installing an Online Stack Monitoring System?

A: Industries should install the monitoring system whenever they require real-time emissions data to meet environmental regulations or to enhance air quality control within their operations.

Q: Where can these systems be applied effectively?

A: These stack monitoring systems are suitable for a variety of industriessuch as power generation, manufacturing, and chemical processingboth for exporters and suppliers across India.

Q: What is the process for using the system once installed?

A: After installation, the system is simply connected to an electric power supply. It then continuously samples stack gases, processes the data, and presents real-time emission levels for compliance and reporting.

Q: How does using this system benefit industrial operators?

A: Operators benefit from precise emission tracking, easier regulatory compliance, reduced environmental risks, and the potential to optimize process efficiency by monitoring pollutant output in real time.
